Yanmar SD50 - Instrument Panel Operation and Checks

CHECKING THE INSTRUMENT PANEL ALARM SYSTEM
New B-Type
0000472SD
(1)
(2)(3)(4)
(5)
(6)
(7)
(8)

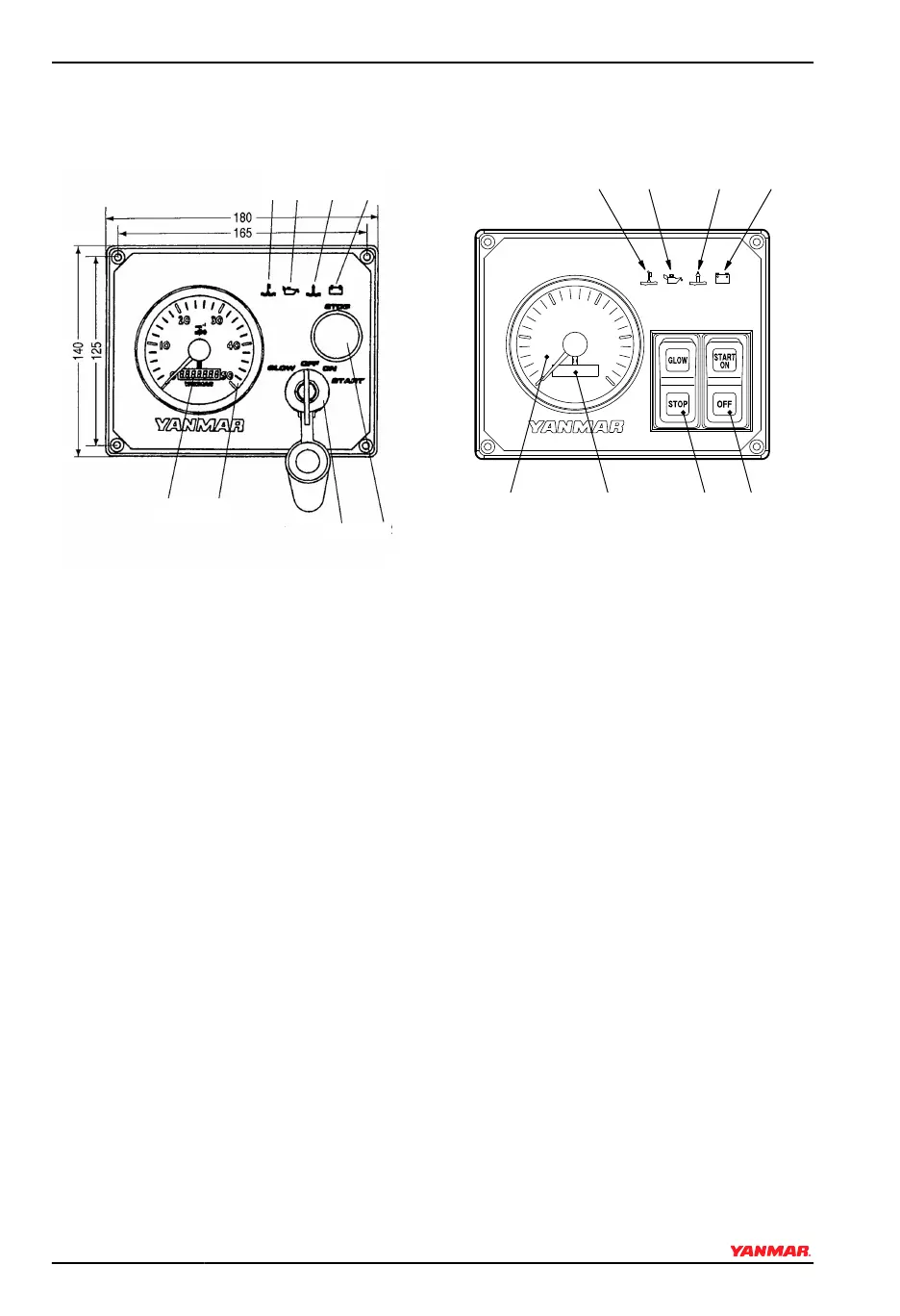

Figure 5
1 – Battery Low Charge Alarm
2 – Sail-Drive Seal Warning Lamp
3 – Engine Oil Low Pressure Lamp
4 – Coolant High Temperature Alarm
5 – Hour Meter
6 – Tachometer
7 – Key Switch
8 – STOP Button
B (Keyless) - Type
0
10
20
30
40
50
(8) (7) (5)(6)
(1) (2) (3) (4)
026102-00X
Figure 6
1 – Coolant High Temperature
Indicator
2 – Engine Oil Low Pressure
Indicator
3 – Water in Sail Drive Seal Indicator
4 – Battery Low Charge Indicator
5 – ON/OFF/START Switch
6 – GLOW/STOP Switch
7 – Hourmeter
8 – Tachometer
