(1)(2)(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
019719-00X

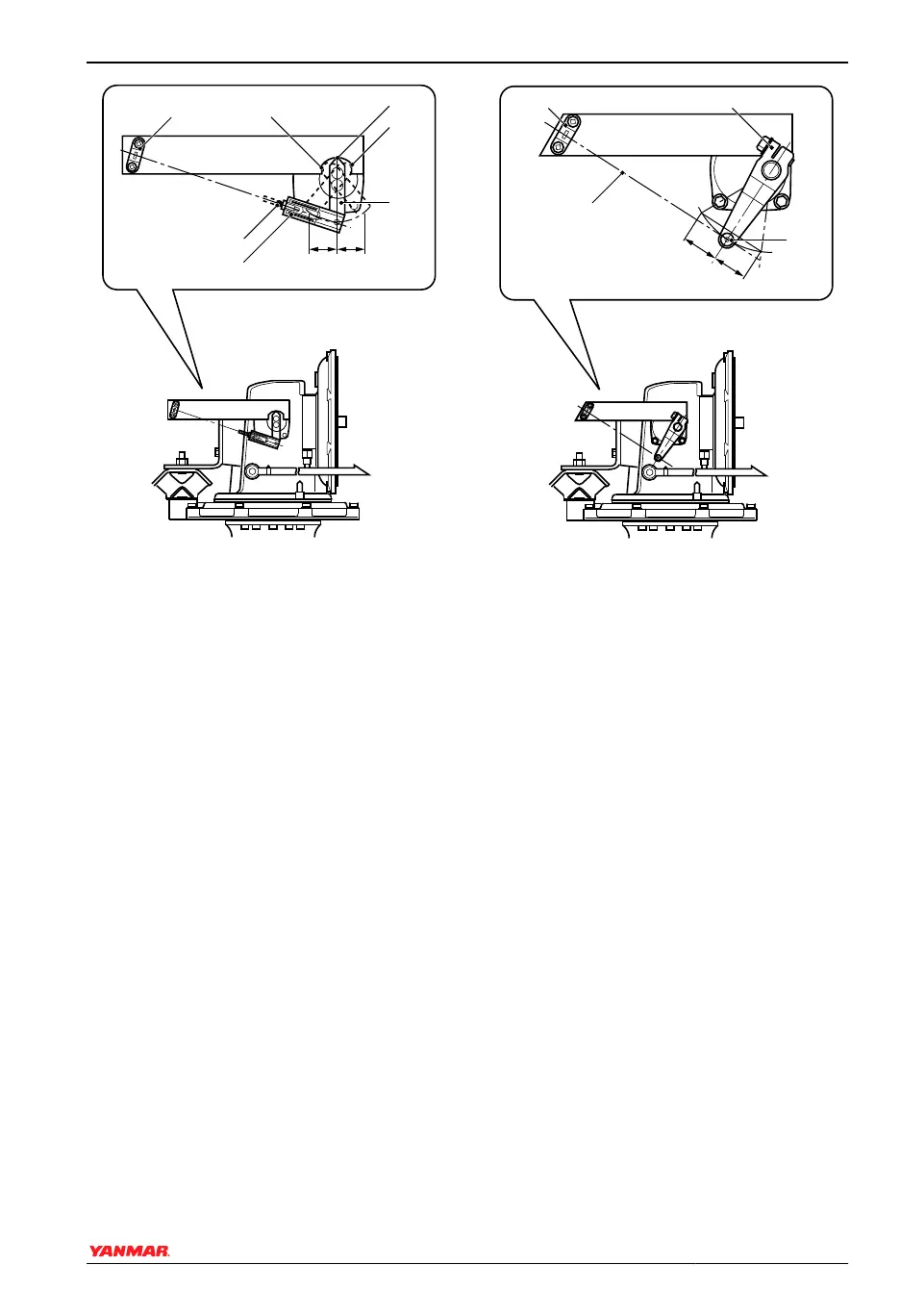

Figure 2
1 – Astern
2 – Neutral
3 – Ahead
4 – Operation Handle
5 – Cable Clamp
6 – Remote Control Cable
7 – Ahead Stop
8 – Neutral Position
9 – Astern Stop
10–Spring Joint
D
D
(1)
(2)
(3)
(4)
(6)
(5)
(7)
019720-00X
Figure 3
1 – Astern
2 – Neutral
3 – Ahead
4 – Operation Lever
5 – Cable Clamp
6 – Remote Control Cable
7 – Pivot
SAIL-DRIVE OPERATION
SD Operation Manual 27
