YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
Parts needed:

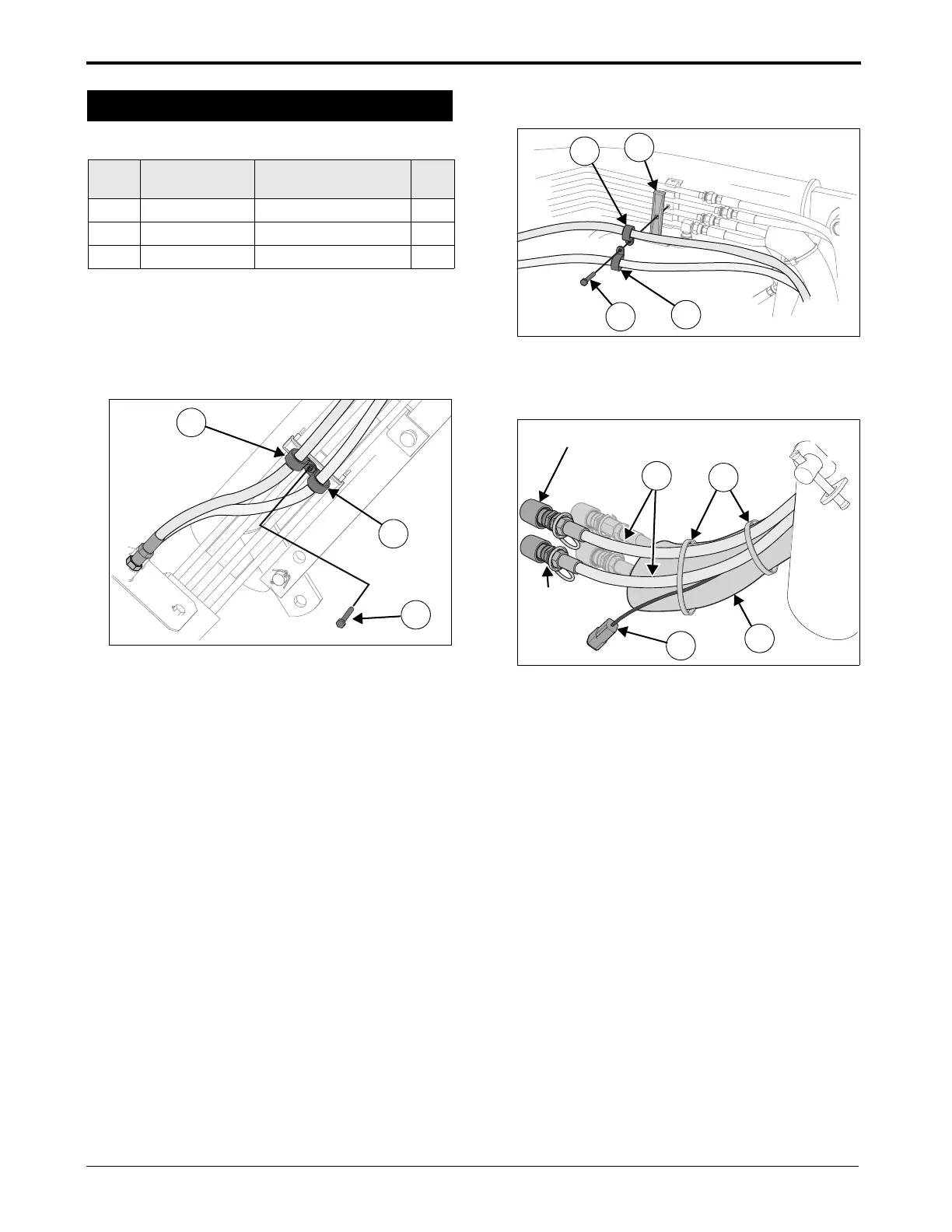

1. Remove and discard the bolt that secures the
lower bracket to the loader.
2. Slide two Pipe Bands (19) over the hoses.
3. Secure the bracket and two Pipe Bands to the
loader with the Bolt (20).
4. Slide two Pipe Bands (19) over the hoses near
the upper bracket.
5. Position the Bracket (G) removed earlier for
installation of the Pipe Bands.
6. Secure the two Pipe Bands and bracket to the
loader with the Bolt (20) provided.
7. Secure the D Hoses (16) and
Extension
Harness (13)
to the Hose Bundle (I)
with the
Repeat Bands (15)
.
8. Use the remaining repeat bands to secure the
hoses to prevent damage or wear.
3.5 Secure the Hoses
Item
No.
Part No. Description Qty.
15 1A8300-51210 Repeat Band 7
19 1TN328-43030 Pipe Band 4
20 1TN328-43520 M6x35 Iso4017 Bolt 2
Port D (yellow)
Port A
(green
13
16
15
I
To Next Page
