YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
Parts needed:

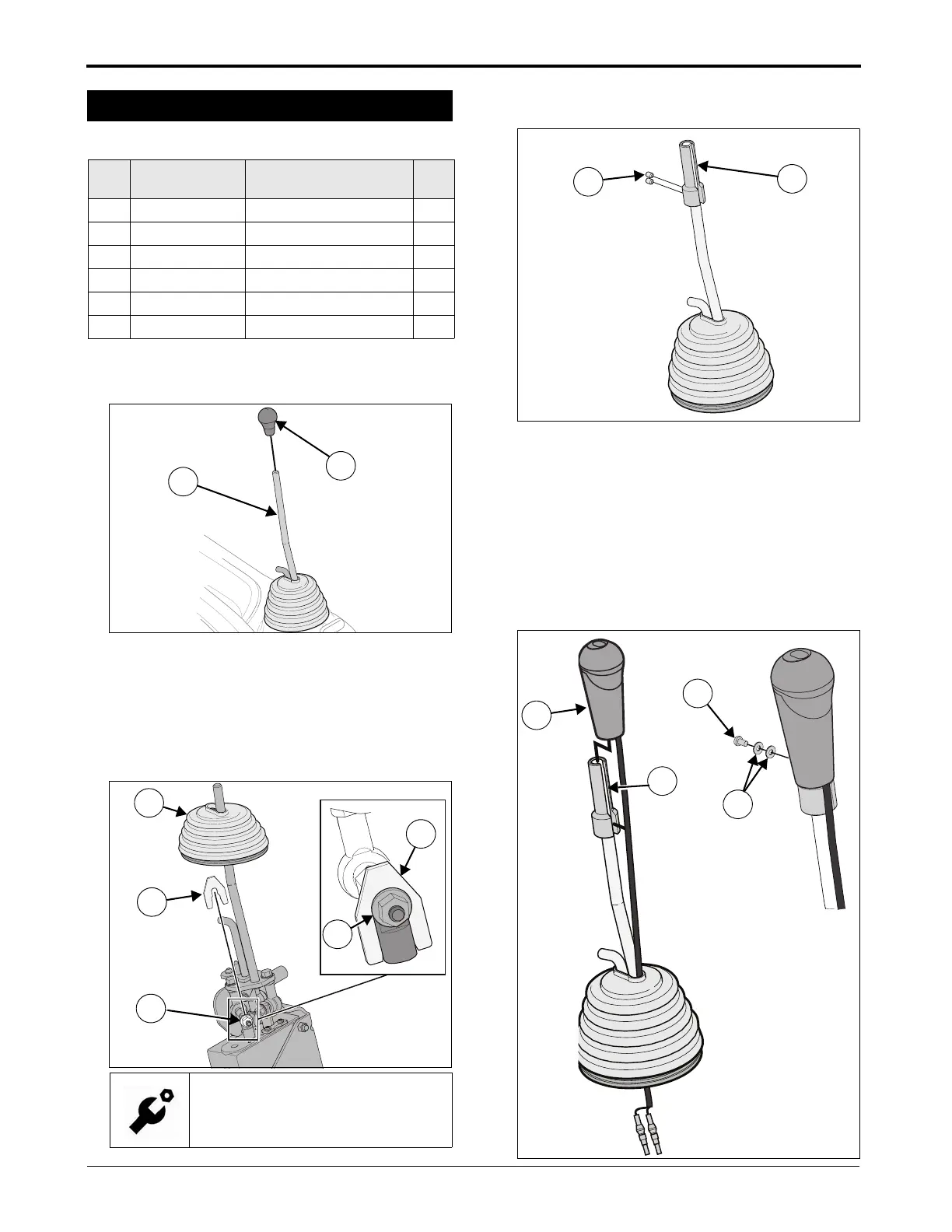

1. Remove the Knob (L) on the Loader
Control Lever (M).
2. Slide the Lever Boot Cover (N) up the lever to
allow for access to the lever control linkage
3. Loosen the Nut (O) on the lever control linkage to
allow for insertion the of Lock Regen Plate (21).
4. Install the Lock Regen Plate and secure it by
tightening the Nut (O).
5. Install the F Sleeve Handle (22) onto the lever
and secure with the two Set Screws (23).
6. Install the Vessel Knob Assembly (24) onto
the F Sleeve Handle.
7. Make sure the assembly wire is routed through
the Notch (P) in the F Sleeve Handle.
8. Feed the assembly wire through the Lever Boot
Cover and down the side of the Lever Control
Linkage for later connection.
9. Secure the Vessel Knob Assembly to the lever
with the Set Screw (25) and Washers (26).
3.6 Install Third Function Knob
Item
No.
Part No. Description Qty.
21 1TN328-43450 Lock Regen Plate 1
22 1TN328-43250 F Sleeve Handle 1
23 1TN328-43550 M6x8 Set Screw 2
24 172663-17950 Vessel Knob Assembly 1
25 1TN328-43540 M4x6 Set Screw 1
26 1TN328-43530 M4-ISO7089 Washer 2
Tightening Torque:
17–22 ft-lb (23–29 Nm)
