YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
Parts needed:
1. Secure the Electrical Harness End (27a) of the
Electrical Harness (27) to the tractor hydraulic line
with a band (28)).
2. Route the Electrical Harness Leads (27b) upward
through the control lever housing.
3. Connect the Electrical Harness Leads (27b) to the
Vessel Knob Assembly electrical connectors (P).
4. Secure the wire to the lever with a Band (28).
5. Connect the Diode Harness (29) to the
Electrical Harness (27c) connector.
6. Connect the Power Relay (30) to the
Diode Harness.

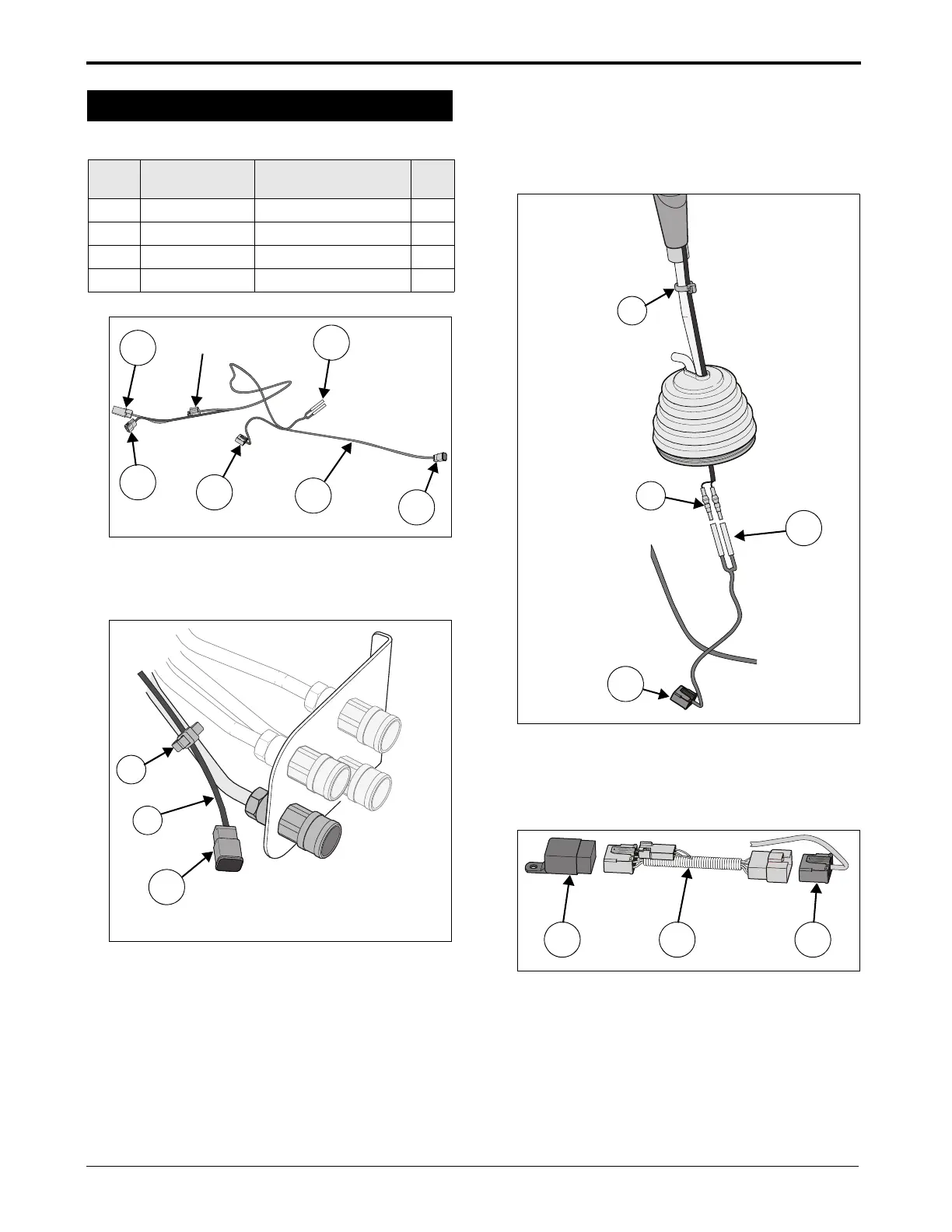

3.7 Install Electrical Harness
Item
No.
Part No. Description Qty.
27 1TN328-43310 Electrical Harness 1
28 29622-250001 250 Band 10
29 129927-91151 Diode Harness 1
30 119247-77100 Power Relay 1
27a
27d
27e
Fuse
27c
27b
27
28
27a
27
28
27b
P
27c
27c
29
30
