Yanmar YL110 - Page 5

5

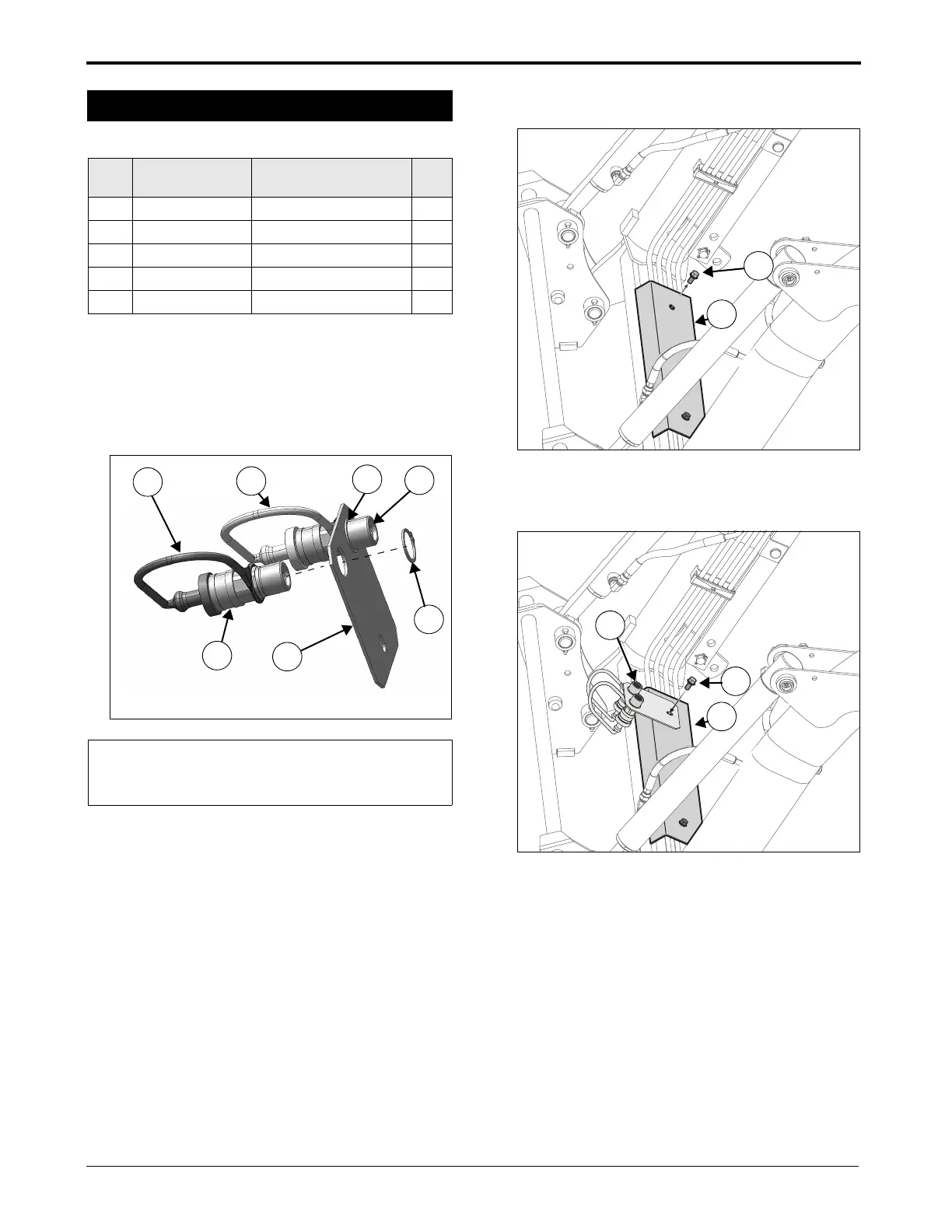

YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
Parts needed:
1. Attach the Yellow (1) and Green (2) Dust Plugs to
the Hydraulic Quick Couplers (3).
2. Install the Hydraulic Quick Couplers (3) into the
Coupler Stay (4).
3. Secure the Hydraulic Quick Couplers (3) to the
Coupler Stay (4) with the Snap Rings (5).
4. Remove bolt (B) from the right side of the loader
hydraulic line cover (C).
5. Secure the Coupler Stay Assembly (A) and
hydraulic line cover (C) to the loader with the bolt
(B) removed earlier.
3.2 Install Front Couplers
Item
No.
Part No. Description Qty.
1 1A7880-47570 Yellow Dust Plug 1
2 1A7880-47580 Green Dust Plug 1
3 198223-46250 Quick Coupler 2
4 1TN339-43050 Coupler Stay 1
5 22242-000220 Snap Ring 2
NOTE
Make sure the Snap Ring (5) is in the groove on
each of the Hydraulic Quick Couplers (3).
5
3
4
3
2
5
Yellow
Green
1
Coupler Stay Assembly (A)
B
C
B
C
A
