YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
Parts needed:

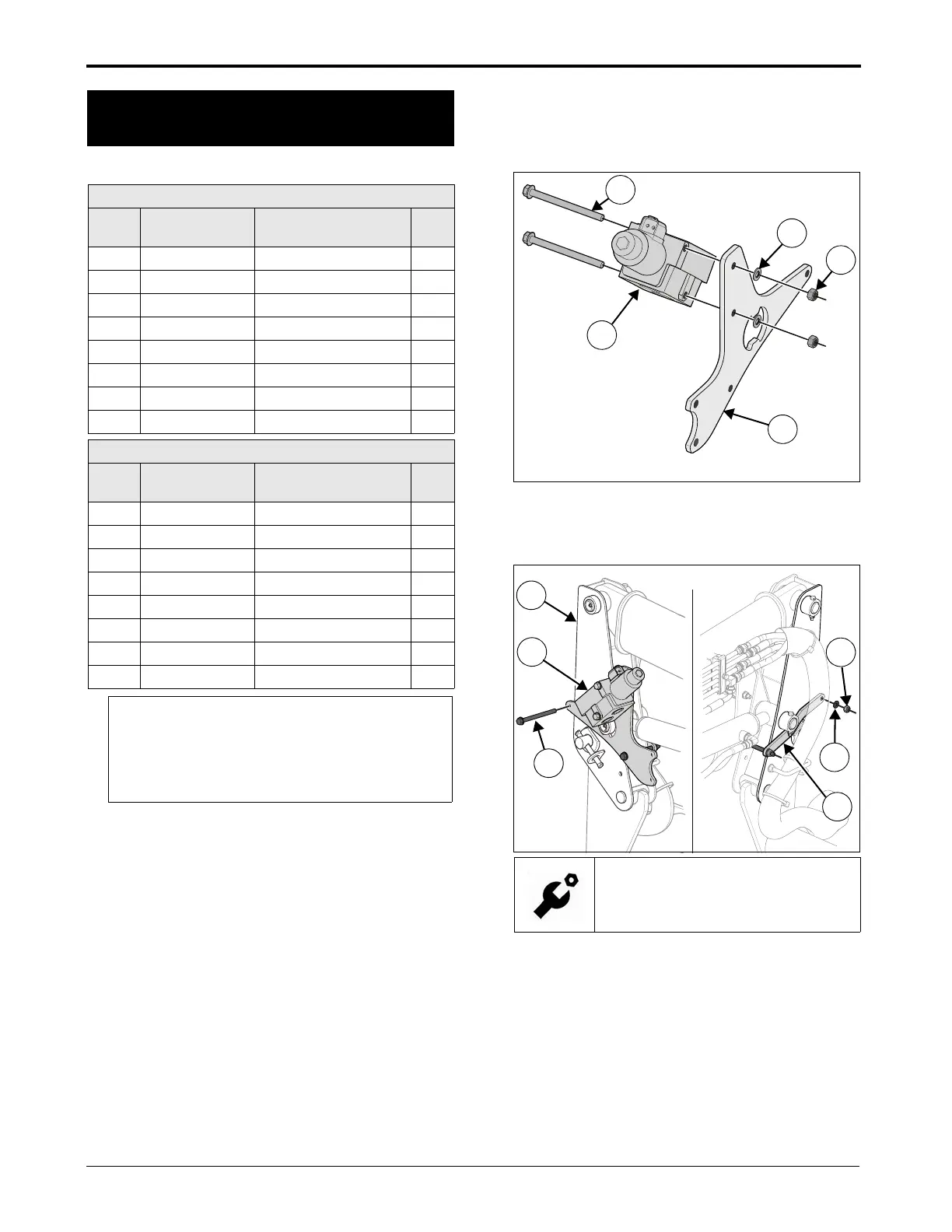

1. Secure the Valve Assembly (6) to the Valve Stay
Plate (7) using two Bolts (8), Washers (9)
and Nuts (10). The bolts will be torqued later in
the assembly process.
2. Secure the Valve Stay Bracket Assembly (D) to
the Loader Mast (E) with the Valve Back Plate
(11), two Bolts (8), Washers (9), and Nuts (10).
3.3 Valve Assembly
and Installation
YL110
Item
No.
Part No. Description Qty.
6
1TN323-43110 Valve Assembly 1
7
1TN328-43410 Valve Stay Plate 1
8 26106-080902 M8x100 Bolt 4
9 22117-080000 8 Washer 4
10 26366-080002 8 U-nut 4
11 1TN328-43420 Valve Back Plate 1
12 1A7882-47210 Joint Assembly 6
13 1TN328-43320 Extension Harness 1
YL210
Item
No.
Part No. Description Qty.
6
1TN323-43110 Valve Assembly 1
7
1TN329-43410 Valve Stay Plate 1
8 26106-080902 M8x100 Bolt 4
9 22117-080000 8 Washer 4
10 26366-080002 8 U-nut 4
11 1TN329-43420 Valve Back Plate 1
12 1A7882-47210 Joint Assembly 6
13 1TN328-43320 Extension Harness 1
NOTE:
If the valve ports are not covered, make sure
debris does not fall into the valve ports when
handling the Valve Assembly. If necessary,
cover the ports with masking tape.
Tightening Torque:
17–22 ft-lb (23–29 Nm)
7
6
8
Valve Stay Bracket Assembly (D)
10
9
To Next Page
