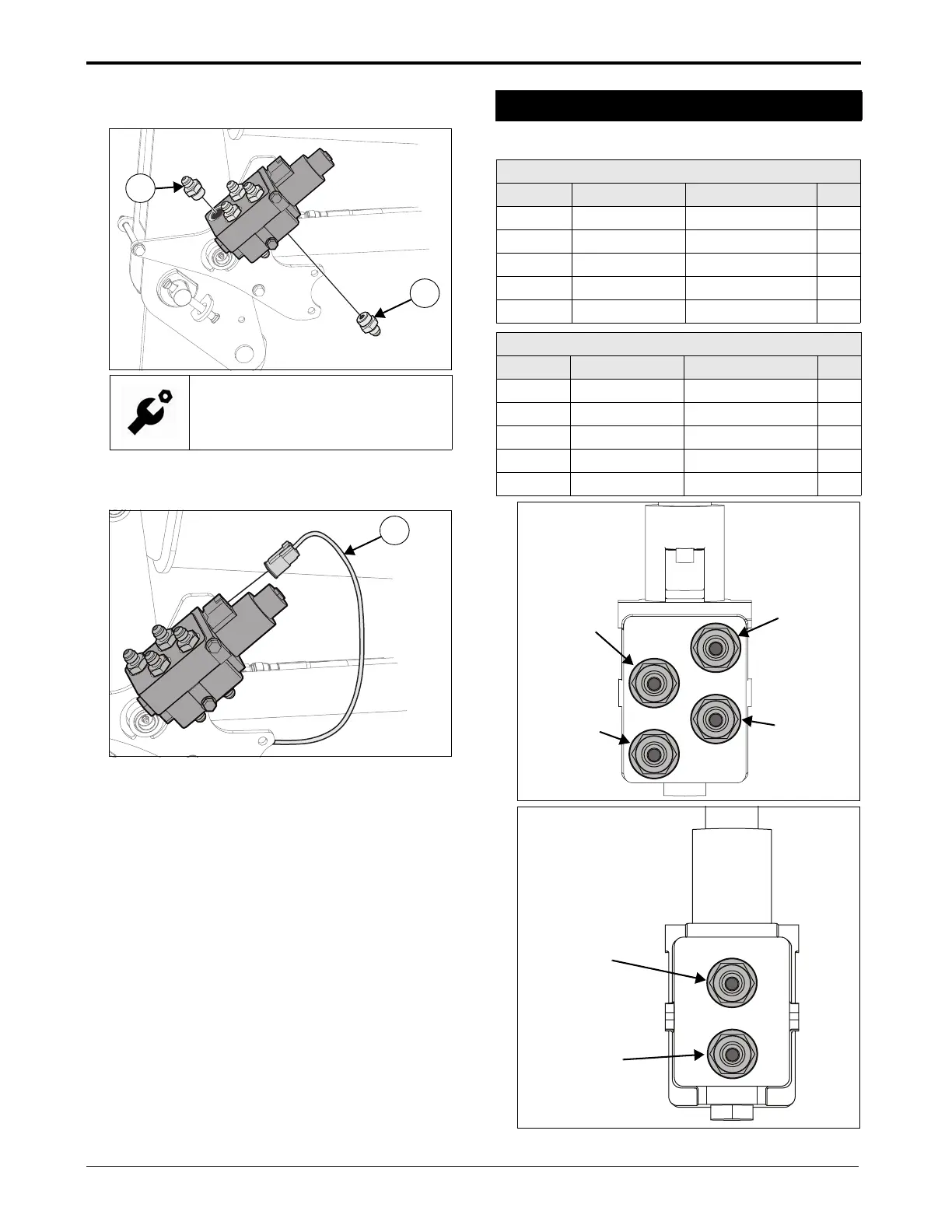

YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit
3. Install the Joint Assembly fittings (12) into the top
and bottom of the Valve Assembly (6).
4. Connect either end of the Extension Harness (13)
to the Valve Assembly (6).
Parts needed
:
Tightening Torque:
40–43 ft-lb (54–58 Nm)
12
12
13
3.4 Installing Hydraulic Hoses
YL110 Parts
Item No. Part No. Description Qty.
14 1TN328-43040 C Hose 2
15 1A8300-51210 Repeat Band 3
16 1TN328-43050 D Hose 2
17 1TN328-43190 B Hose 1
18 1TN328-43180 A Hose 1
YL210 Parts
Item No. Part No. Description Qty.
14 1TN328-43040 C Hose 2
15 1A8300-51210 Repeat Band 3
16 1TN329-43050 D Hose 2
17 1TN329-43190 B Hose 1
18 1TN329-43180 A Hose 1
Port B
(Green)
Port C
(Yellow)
Port A
(Green)
Port D
(Yellow)
Third
Function
Bucket
Dump
Bucket
Curl
Port A
(Green)
Port D
(Yellow)
Bucket
Curl
Bucket
Dump
