YL110/210 Third Function Valve Kit for SA Tractors
YL110/210 Third Function Valve Kit

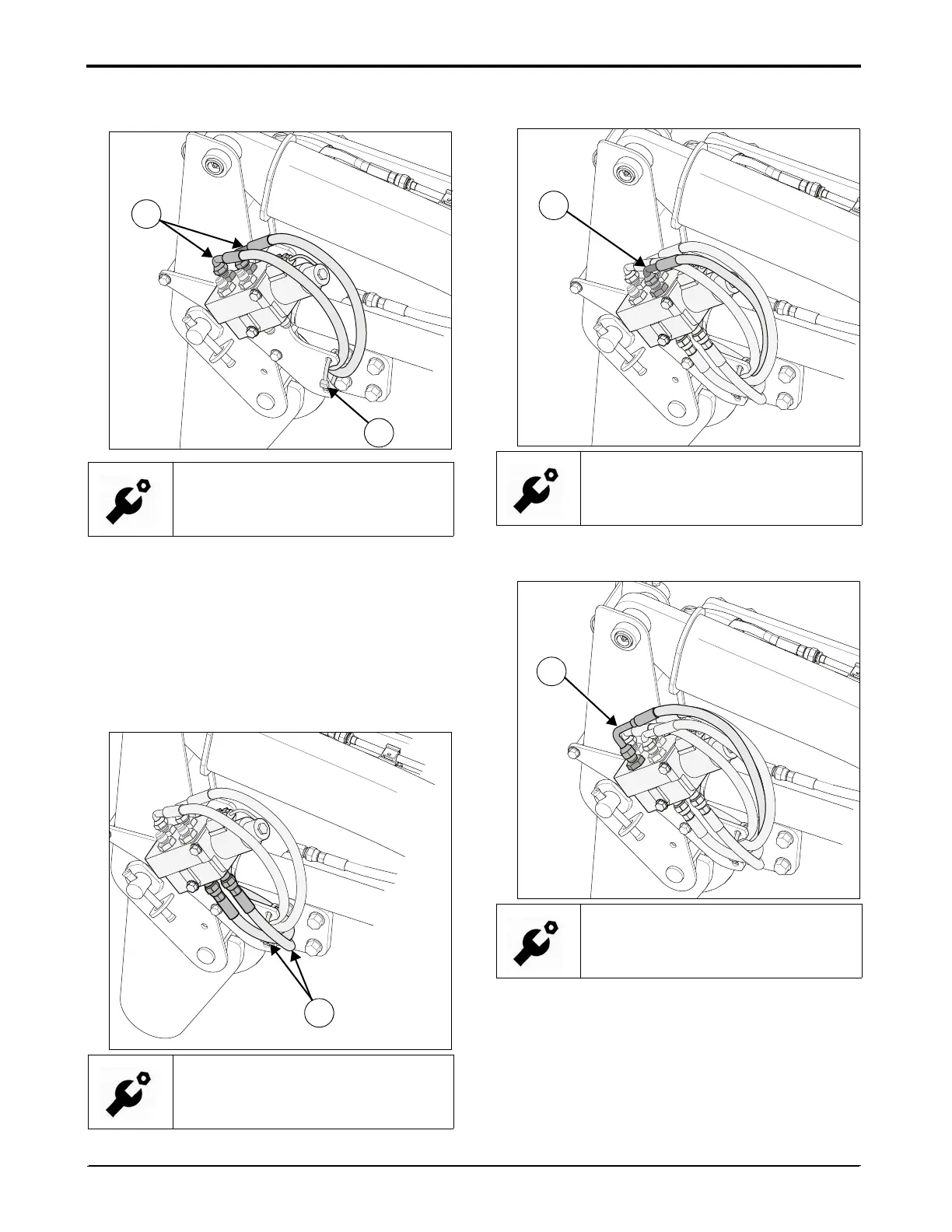

1. Install the two C Hose (14) lines to the Port A and
Port D fittings on the top of the Valve Assembly.
Loss
2. Install a Repeat Band (15) to secure the hoses to
the Stay Plate Assembly. DO NOT tighten at
this time.
3. Route all of the hoses through the Repeat Band
and behind the mast as they are added to the
Valve Assembly.
4. Install the two D Hose (16) lines to the Port A
and Port D fittings on the bottom of the
Valve Assembly.
5. Install the B Hose (17) line to the Port B fitting on
the top of the Valve Assembly.
6. Install the A Hose (18) line to the Port C fitting on
the top of the Valve Assembly.
Tightening Torque:
18–20 ft-lb (24–27 Nm)
Tightening Torque:
18–20 ft-lb (24–27 Nm)
14
15
16
Tightening Torque:
18–20 ft-lb (24–27 Nm)
Tightening Torque:
18–20 ft-lb (24–27 Nm)
17
18
