YARD Commander YTL31105 User Manual

- 11 -

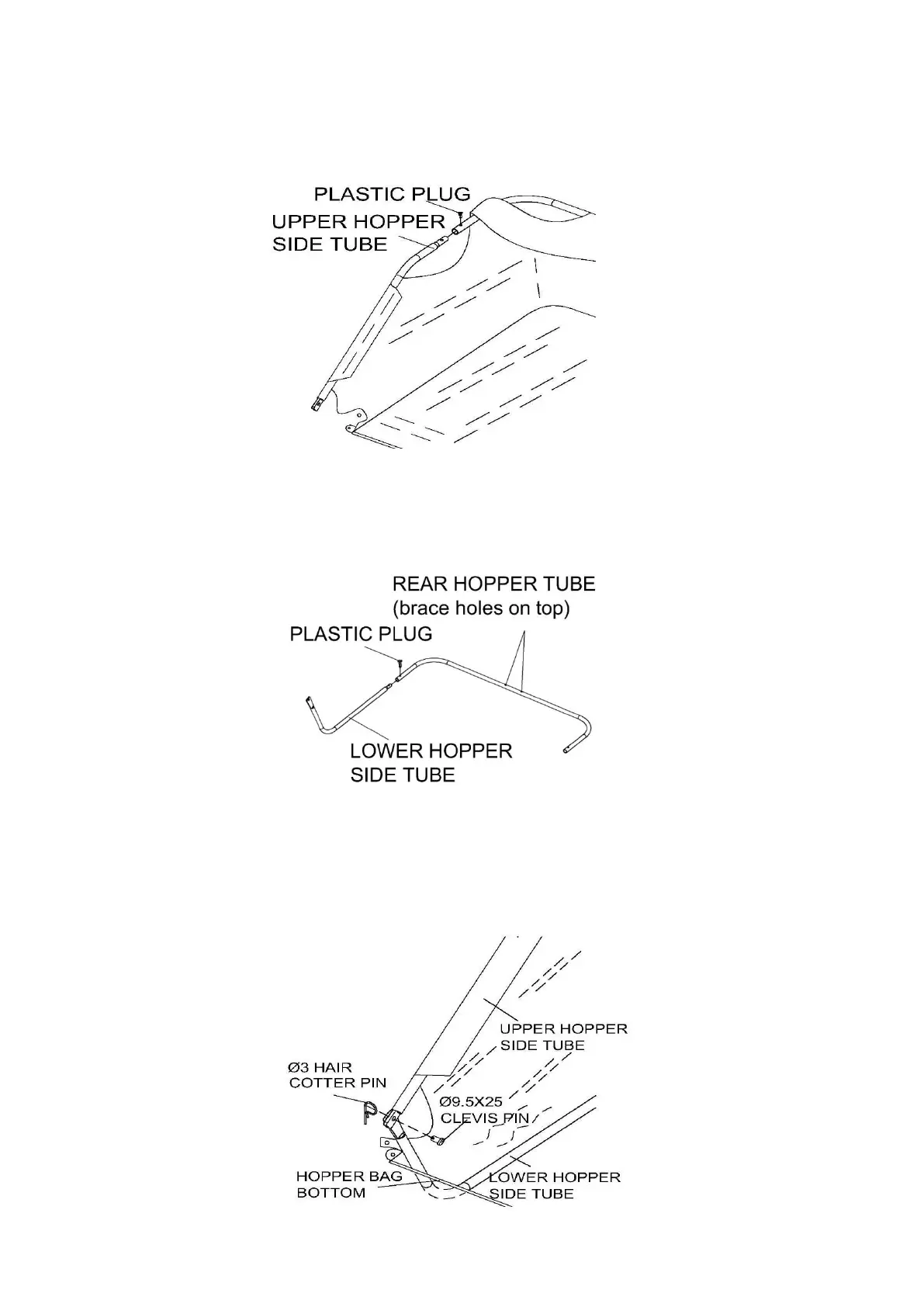

3. Insert the two upper hopper side tubes through the stitched flaps on each side of the bag.
4. Insert the ends of the rear hopper tube onto the ends of the upper hopper side tubes. Fasten
together using the plastic plug.
5. Turn the second rear hopper tube so that the brace holes are in the middle and the tube faces
up.
6. Attach the ends of the rear hopper tube into the ends of the lower hopper side tubes. Fasten
together using plastic plugs.
7. Place the lower hopper tube assembly in the bottom of the bag.
8. Attach the ends of the lower side tubes inside the upper side tubes using two Ø9.5X25 clevis
pins.
9. From the inside of the bag Insert the two hair cotter pins Ø3.

YARD Commander YTL31105 Specifications

General

Brand	YARD Commander
Model	YTL31105
Category	Lawn Sweeper
Language	English
