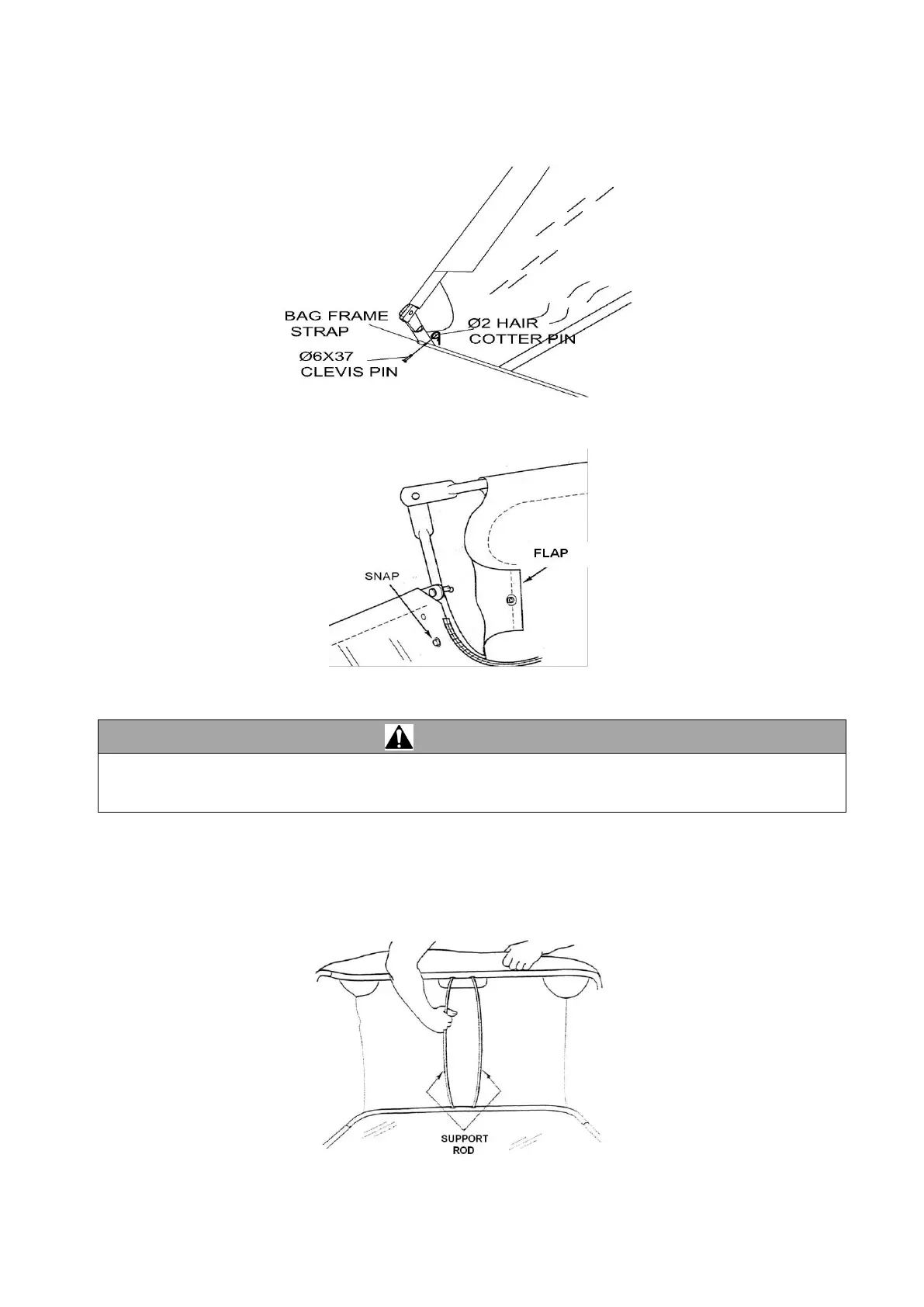

10. Insert the bag frame strap into the stitched sleeve along the front edge of the bag bottom.
11. Attach the bag frame strap to the lower hopper side tubes using two Ø6X37 clevis pins and two
hair cotter pins Ø2.
12. Secure the bag corners around the lower hopper side tubes by snapping the bag flaps to the
bag bottom on both sides.
Do not over bend the support rods during the next steps. Over bending will cause the steel rods to
lose supporting tension.
13. Tip the hopper on its back to insert the two hopper support rods.
14. Place the ends of each rod into the upper and lower rear hopper tubes bending the rod just
enough to fit into the holes in the tubes.
