19

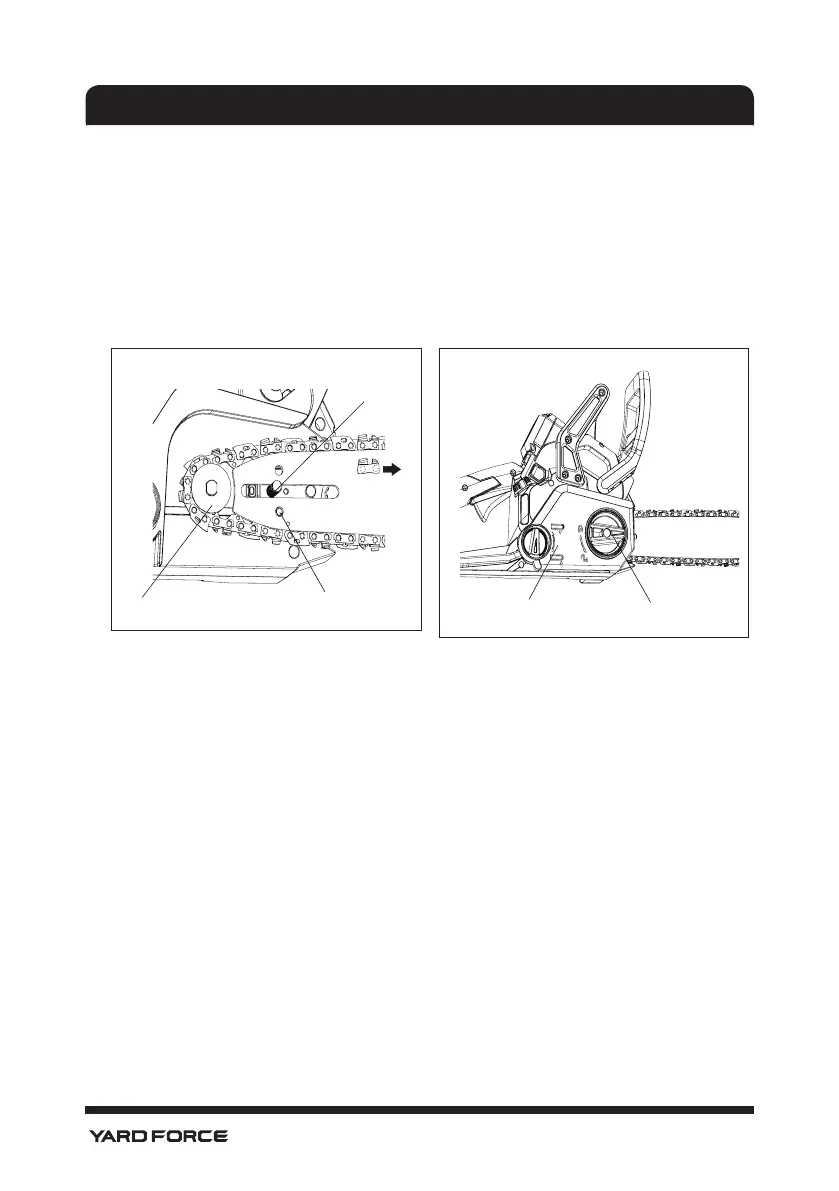

Fig 8
Locking pin
Sprocket
Tension pin
Fig 9
Clutch cover Clamp knob
3. Position the saw rail so that the chain tension pin and locking pin can engage into the
saw rail and the chain saw blade lies around the sprocket. Make sure the chain cutters on
top of the guide bar face forward towards the bar tip. ( Fig 8)
4. First insert tongue locates on the bottom left of the clutch cover into its matching hole at a
certain angle. then Position the clutch cover and tighten the clamp knob. (Fig 9)
5. Adjust chain tension by turning the SDS tension Knob to get proper saw chain tension.
The direction of adjustment should follow the marking on the clutch cover.
ASSEMBLY
