side discharge deflector
mulch door
OPERATION
4. Close the rear door and ensure that rear door covers any gap between mower deck and bagging unit.
5. Empety the grass catcher if the full indicator on the top cover closed.
NOTE: To convert to mulching or discharging operation, remove grass catcher, assemble the mulching
plug and close the rear door.

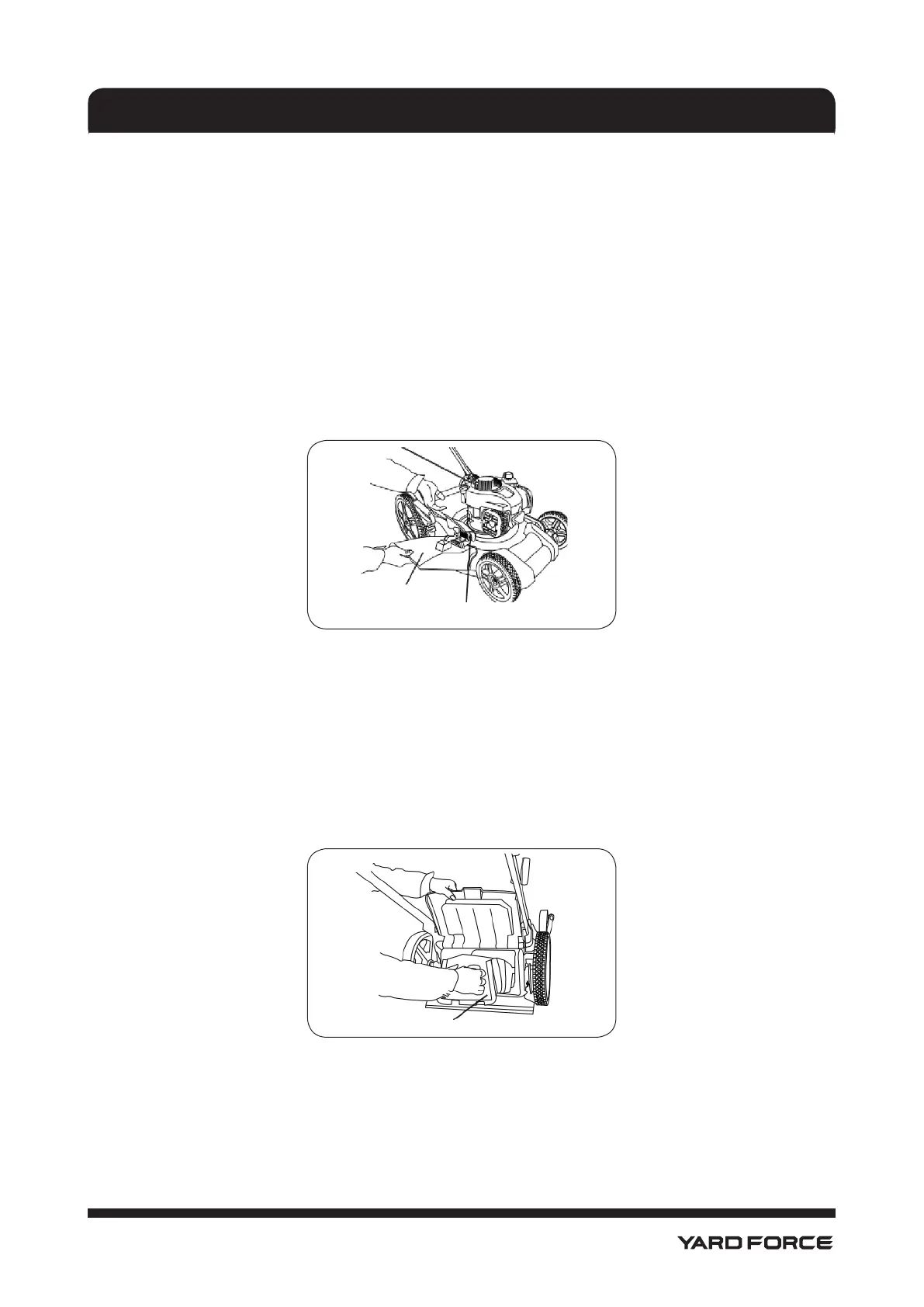

SIDE DISCHARGING(Fig. 21)
IMPORTANT: THE REAR DOOR MUST BE CLOSED.
1. Assemble the mulch plug.
2. Open the mulch door.
3. Install the discharge deector under the door as shown. The mower is now ready for discharging
operation.
NOTE: To convert to mulching or bagging operation, side mulch door must be closed.
MULCHING(Fig. 22)
1. Open the mulch door.
2. Remove the discharge deector.
3. Assemble the mulching plug as shown. The mower is now ready for mulching operation.
SIMPLE STEPS TO REMEMBER WHEN CONVERTING YOUR LAWN MOWER
FOR MULCHING
• The rear door is closed.
• The mulch door is closed, and the mulching plug must be assembled.
Mulching plug
Fig. 21
Fig. 22
