CHANGING/ADDING TRANSAXLE OIL (See Fig. 34)
NOTE: To access the transaxle, you must remove the battery tray from the mower. Refer to the section
Replacing the Batteries for instructions on how to fully extend the battery tray, then continue to extend the
tray all the way out of the mower so that you can access the transaxle. Once the battery tray is removed,
you may proceed with the steps below.
• Park the mower on a at, level surface. Allow the mower to cool before draining transaxle oil.
• Place a container underneath the transaxle oil drain plug.
• Remove the ll hole plug from the top of the transaxle.
• Remove the drain plug and drain the old oil.
• Clean the bottom drain plug, then reinstall plug and tighten securely.
• Pour 200cc new, clean GL4 80W/90 gear oil into the ll hole.
• Reinstall ll hole plug and tighten securely. Do not over- tighten.
• Reinstall the battery tray as described in Replacing the Batteries.
NOTE: Consult hazardous waste management guidelines in your area for the proper way to dispose of used
gear oil.
STORING THE MOWER
The following steps should be taken before storing the mower for the season.
• Remove any build-up of grass and leaves on or around the motor cover. Wipe the mower clean with a
dry cloth. Do not spray with a garden hose to clean.
• Plug the mower up to charge for the entire time of storage.
NOTE: If it is not possible to leave the mower charger connected during storage, charge the batteries at
least once a month during storage.
• Store mower in a clean, dry place that is inaccessible to children. Do not store near any appliance that
operates with ame such as a gas water heater, clothes dryer, or furnace.
NOTE: Do not leave the key in the mower during storage.
• If the mower must be stored outside, make sure it is covered completely to protect it from the elements.
• Keep away from corrosive agents such as garden chemicals and deicing salts.
PREPARING FOR USE AFTER STORAGE
The following steps should be taken before using the mower after it has been stored:
• Review maintenance chart.
• Fully charge the batteries.
• Check tire pressure and inate as needed.
• Briey drive the mower and check all systems and components to ensure they are functioning correctly.
BATTERY REMOVAL AND PREPARATION FOR RECYCLING
To preserve natural resources, please recycle or dispose of batteries properly.
This product uses lithium iron phosphate batteries. Local, state or federal laws may prohibit disposal of
batteries in ordinary trash.
Consult your local waste authority for information regarding available recycling and/or disposal options.
MAINTENANCE AND STOARGE

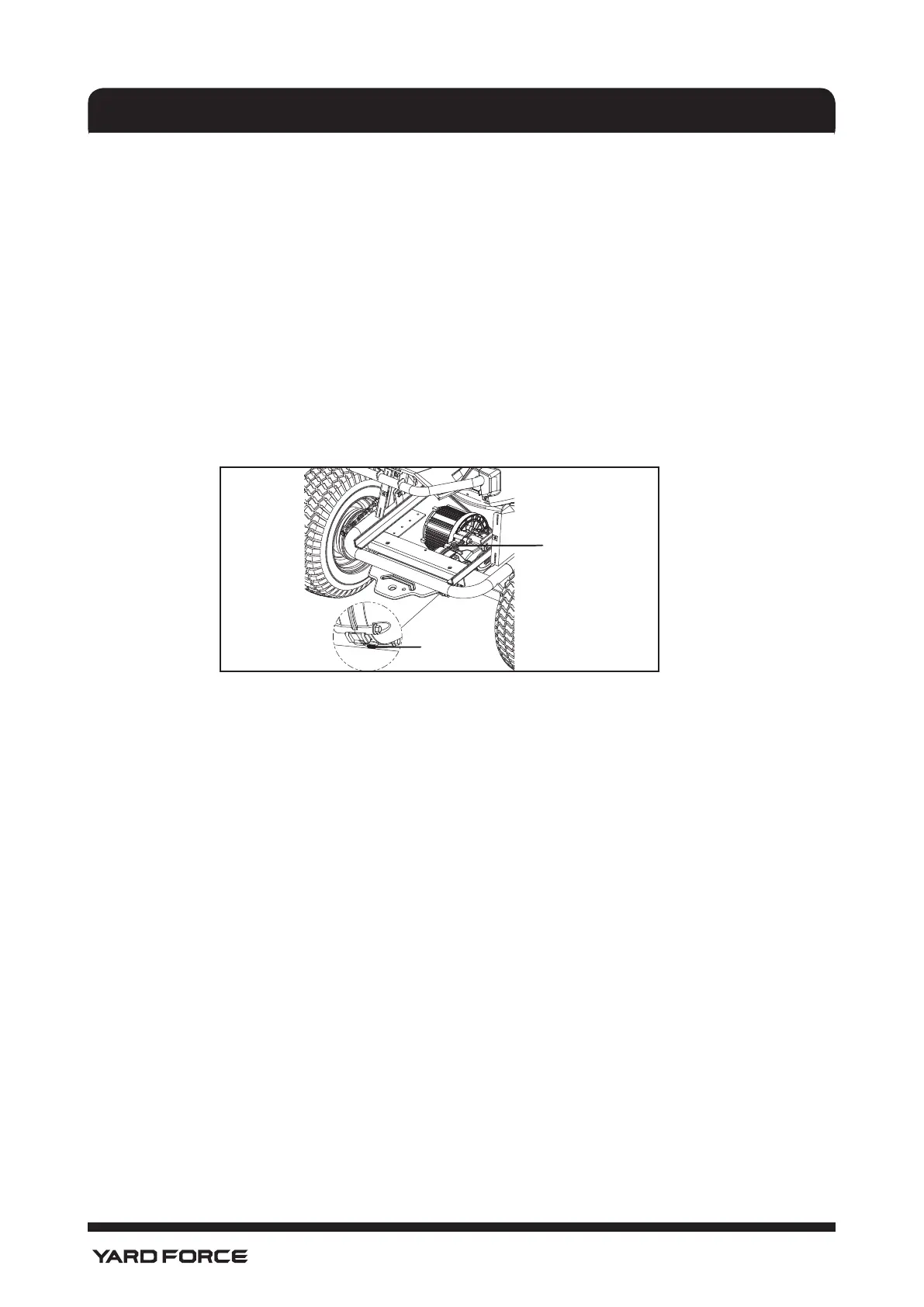

Fig. 34
Fill Hole Plug
Transaxle
Oil Drain Plug
