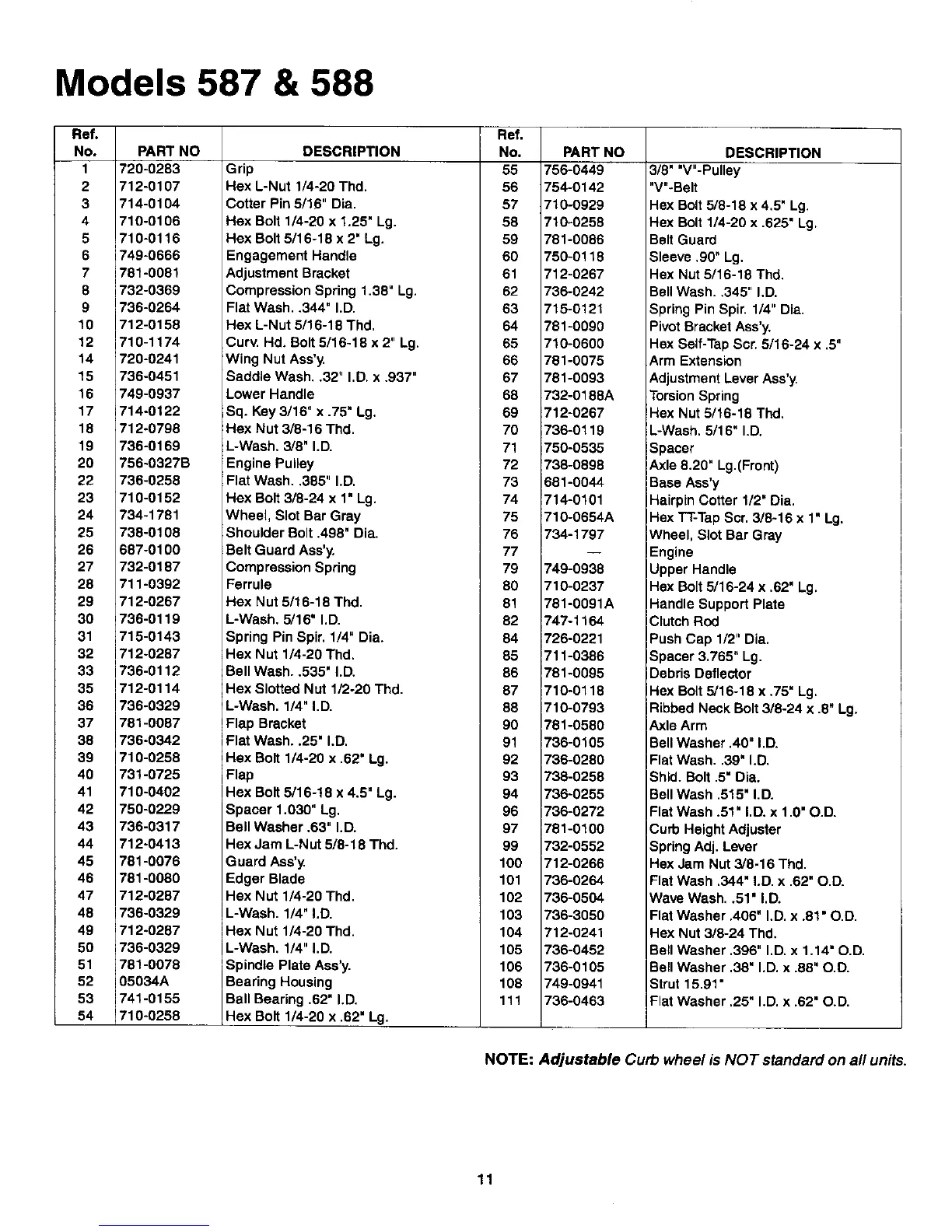

Models 587 & 588
Ref.
No. PART NO
I 720-0283
2 712-0107
3 714-0104
4 710-0106
5 710-0116
6 749-0666
7 781-0081
8 732-0369
9 736-0264
10 712-0158
12 710-1174
14 720-0241
15 736-0451
16 749-0937
17 714-0122
18 712-0798
19 736-0169
20 756-0327B
22 736-0258
23 710-0152
24 734-1781
25 738-0108
26 687-0100
27 732-0187
28 711-0392
29 712-0267
30 736-0119
31 715-0143
32 712-0287
33 736-0112
35 712-0114
36 736-0329
37 781-0087
38 736-0342
39 710-0258
40 731-0725
41 710-0402
42 750-0229
43 736-0317
44 712-0413
45 781-0076
46 781-0080
47 712-0287
48 736-0329
49 712-0287
50 736-0329
51 781-0078
52 05034A
53 741-0155
54 710-0268
DESCRIPTION
Grip
Hex L-Nut 1/4-20 Thd.
Cotter Pin 5/16" Dia.
Hex Bolt 1/4-20 x 1.25" Lg.
Hex Bolt 6/16-18 x 2" Lg.
Engagement Handle
Adjustment Bracket
Compression Spring 1.38" Lg.
Flat Wash..344" I.D.
Hex L-Nut 5/16-18 Thd,
Curv. Hd. Bolt 5/16-18 x 2" Lg,
Wing Nut Ass'y.
Saddle Wash..32" I.D. x .937"
Lower Handle
Sq. Key 3/16" x .75 • Lg.
Hex Nut 3/8-16 Thd.
L-Wash. 3/8" I.D.
Engine Pulley
Flat Wash..385" I.D.
Hex Bolt 3/8-24 x 1• Lg.
Wheel, Slot Bar Gray
Shoulder Bolt .498" Dia.
Belt Guard Ass'y.
Compression Spring
Ferrule
Hex Nut 5/16-18 Thd.
L-Wash. 5/16" I.D.
Spring Pin Spir. 1/4" Dia.
Hex Nut 1/4-20 Thd.
Bell Wash..535 • I.D.
Hex Slotted Nut 1/2-20 Thd.
L-Wash. 1/4 • I.D.
Flap Bracket
Flat Wash..25" I.D.
Hex Bolt 1/4-20 x .62 • Lg.
Flap
Hex Bolt 5/16-18 x 4.5" Lg.
Spacer 1.030" Lg.
Bell Washer .63" I.D.
Hex Jam L-Nut 5/8-18 Thd.
Ref.
No. PART NO
55 756-0449
56 754-0142
57 710-0929
58 710-0258
59 781-0086
60 750-0118
61 712-0267
62 736-0242
63 715-0121
64 781-0090
65 710-0600
66 781-0075
67 781-0093
68 732-0188A
69 712-0267
70 736-0119
71 750-0535
72 738-0898
73 681-0044
74 714-0101
75 710-0654A
76 734-1797
77
79 749-0938
80 710-0237
81 781-0091A
82 747-1164
84 726-0221
85 711-0386
86 781-0095
87 710-0118
88 710-0793
90 781-0580
91 736-0105
92 736-0280
93 738-0258
94 736-0255
96 736-0272
97 781-0100
99 732-0552
DESCRIPTION
3/8" "V"-Pulley
"V"-Belt
Hex Bolt 5/8-18 x 4.5" Lg.
Hex Bolt 1/4-20 x .625" Lg,
Belt Guard
Sleeve .90 • Lg.
Hex Nut 5/16-18 Thd.
Bell Wash. ,345" I,D.
Spring Pin Spir, 1/4" Dia,
Pivot Bracket Ass'y.
Hex Self-Tap Scr. 5/16-24 x .5"
Arm Extension
Adjustment Lever Ass'y.
Torsion Spring
Hex Nut 5/16-18 Thd.
L-Wash. 5/16" I.D.
Spacer
Axle 8.20" Lg.(Front)
Base Ass'y
Hairpin Cotter 1/2• Dia.
Hex TT-Tap Scr. 3/8-16 x 1" Lg.
Wheel, Slot Bar Gray
Engine
Upper Handle
Hex Bolt 5/16-24 x .62" Lg.
Handle Support Plate
Clutch Rod
Push Cap 1/2" Dia.
Spacer 3,765" Lg.
Debris Deflector
Hex Bolt 5/16-18 x ,75 • Lg.
Ribbed Neck Bolt 3/8-24 x .8" Lg.
Axle Arm
Bell Washer .40 • I.D.
Flat Wash..39" I.D.
Shld. Bolt .5" Dia.
Bell Wash .515" I.D.
Flat Wash .51• I.D. x 1.O"O.D.
Curb Height Adjuster
Spring Adj. Lever
Guard Ass'y
Edger Blade
Hex Nut 1/4-20 Thd.
L-Wash. 1/4 • I.D.
Hex Nut 1/4-20 Thd.
L-Wash. 1/4" I.D.
Spindle Plate Ass'y.
Bearing Housing
Ball Bearing .62" I.D.
Hex Bolt 1/4-20 x .62" Lg.
100 712-0266
101 736-0264
102 736-0504
103 736-3050
104 712-0241
105 736-0452
106 736-0105
108 749-0941
111 736-0463
Hex Jam Nut 3/8-16 Thd.
Flat Wash .344" I.D. x .62" O.D.
Wave Wash..51" I.D.
Flat Washer .406" I.D. x .81 • O.D.
Hex Nut 3/8-24 Thd.
Bell Washer .396" I.D. x 1.14" O.D.
Bell Washer .38" I.D. x .88" O.D.
Strut 15.91"
Flat Washer .25" I.D. x .62" O.D.
NOTE: Adjustable Curb wheel is NOT standard on all units.
11
