• When deck is level, secure end of adjustable lift link
with flat washer and hairpin clip.

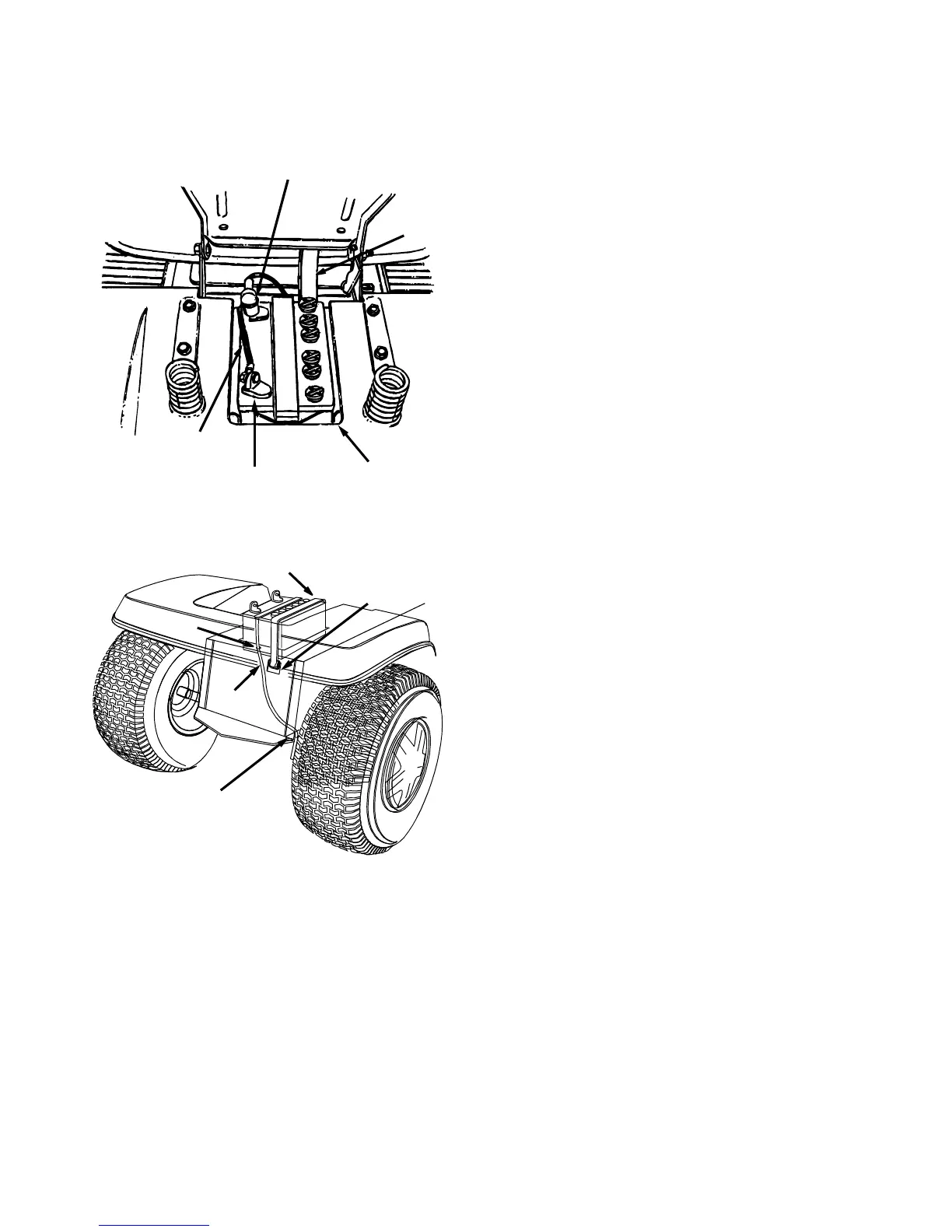

Figure 8
Figure 9
Installing The Battery
(Type “A” Battery)
NOTE: If battery is put into service after date shown on
top of battery, charge for minimum of 1 hour at 6-10
amps
• Lift the seat.
• Remove the plastic cover from the negative
terminal.
• Remove the hex bolt and nut from the negative
(black) cable. Attach negative cable to the negative
terminal with this bolt and nut.
Installing The Battery
(Type “B” Battery)
• Lift the seat.
• Make certain both the negative (black) cable and
the positive (red) cable are routed up through the
battery compartment as shown in Figure 8.
• Replace the battery into the battery compartment in
the same position as it was before (positive terminal
is toward the front of the unit).
• Attach the positive (red) cable to the positive
terminal of the battery. Secure with hex bolt and nut
previously removed. Slide rubber boot down over
the positive terminal.
• Remove the hex bolt and nut from the negative
(black) cable. Attach negative cable to the negative
terminal with this bolt and nut.
• Secure battery by hooking battery strap into slot in
rear frame, under the fender. See Figure 9.
• Insert the drain tube down through the hole in the
battery compartment and the hole in the transaxle
reinforcement bracket located on the right side of
the unit. See Figure 9. Be certain drain tube is
routed away from the wheel rim.
• Trim excess end of drain tube if necessary (about
4" should extend past the bracket or cable tie).
Positive Terminal
(Inside Rubber Boot)
Battery
Strap
Negative
Cable
Negative
Terminal
Battery
Compartment
Slot
in Frame
Battery
Strap
Drain
Tube
Transaxle
Reinforcement
Bracket
Hole
To Next Page
