18
To adjust the toe-in, follow these steps.
• Remove the hex nut and lock washer, and drop the
end of the tie rod from the axle bracket. See Figure
18.
• Loosen the hex jam nut on tie rod.
• Adjust the tie rod assembly for correct toe-in.

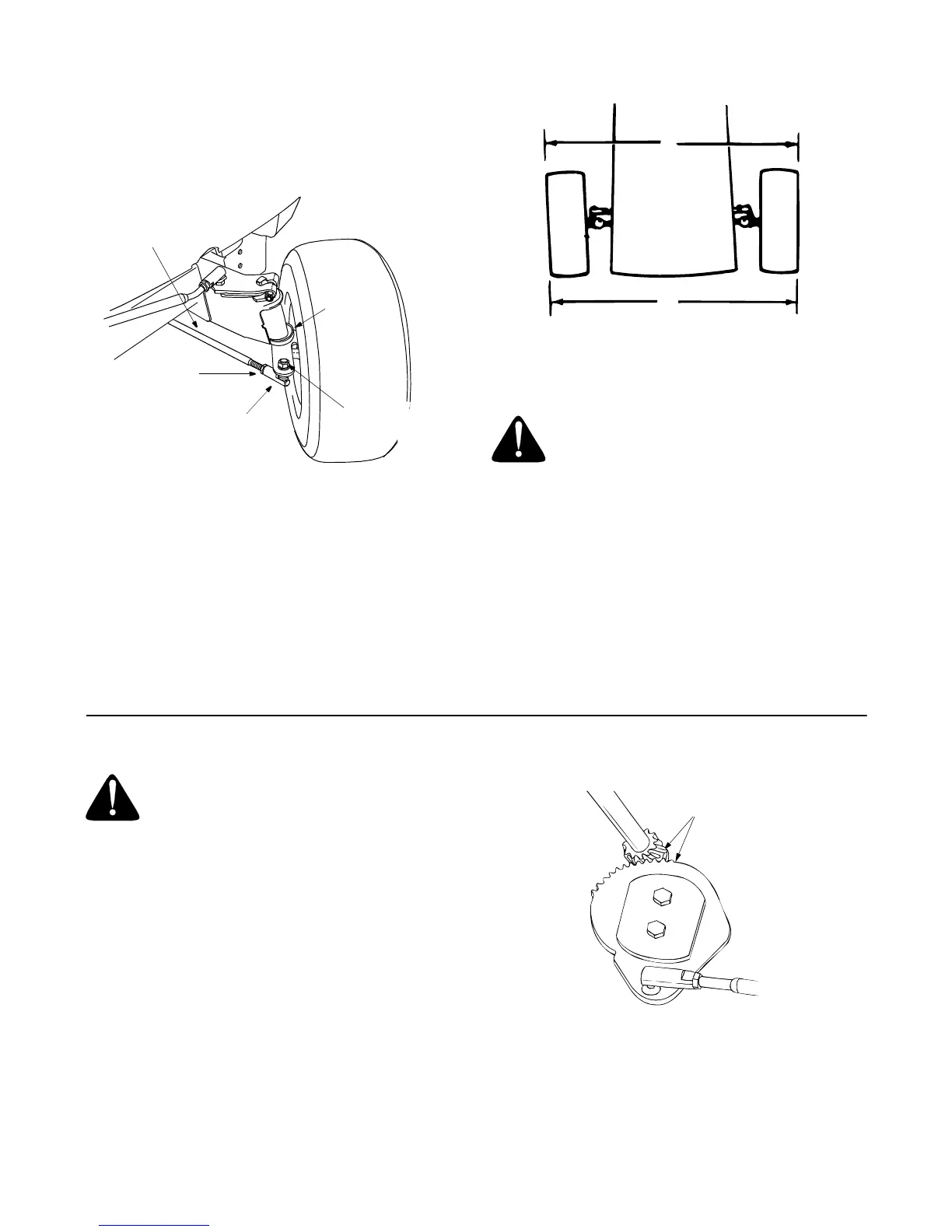

Figure 18
Dimension ‘‘B’’ should be approximately 1/16 - 5/16"
less than Dimension ‘‘A.’’ See Figure 19. To increase
Dimension ‘‘B," screw tie rod into tie rod end. To
decrease Dimension ‘‘B,’’ unscrew tie rod from tie rod
end. Reassemble tie rod. Check dimensions. Readjust
if necessary.
Figure 19
Carburetor Adjustments
WARNING: If any adjustments are made to
the engine while the engine is running
(e.g. carburetor), disengage all clutches
and blades. Keep clear of all moving
parts. Be careful of heated surfaces and
muffler.
Minor carburetor adjustments may be required to
compensate for differences in fuel, temperature,
altitude and load. Refer to separate engine manual for
carburetor adjustment information.
NOTE: A dirty air cleaner will cause an engine to run
rough. Be certain air cleaner is clean and attached to
the carburetor before adjusting carburetor.
SECTION 7: SERVICE
WARNING: Always stop engine and
disconnect spark plug wire before
cleaning, lubricating or doing any kind of
work on lawn tractor.
Steering Gears
Lubricate teeth of steering gears with automotive multi-
purpose grease after every 25 hours of operation or
once a season. See Figure 20.
Steering Shaft
Lubricate steering shaft at least once a season with
light oil.
Figure 20
Tie
Rod
End
Tie Rod
Hex Jam
Nut
Wheel
Bracket
Hex Nut
Lock Washer
(1/16" - 5/16" Less Than A)
A
B
Front
Steering
Gears
