Attaching The Seat

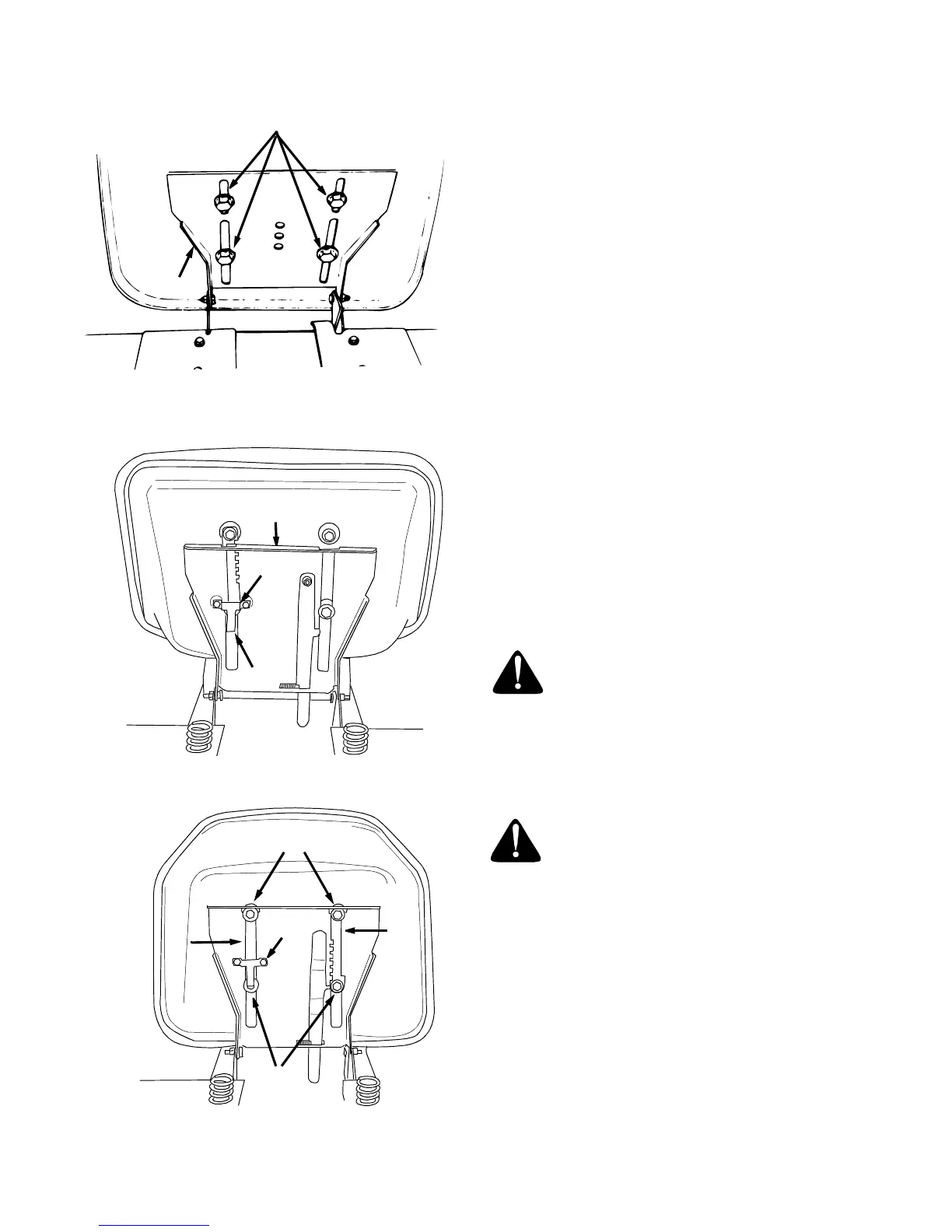

There are two different seat pivot brackets used on this
series of lawn tractor, a manual adjustment seat or a
quick adjustment seat. See Figure 2 and 3 to identify
which seat is on your unit. Follow the instructions which
apply to your lawn tractor.
Manual Adjustment Seat
Remove the four screws which secure the seat to the
seat pivot bracket. Turn the seat around and place in
position against the seat pivot bracket, lining up the
slotted holes in the pivot bracket with the holes in the
seat. Select desired position for the seat, and secure
with the four screws. See Figure 2.
NOTE: Your seat may have been shipped in a box.
Remove the four screws from the bottom of seat and
place seat in position against the seat pivot bracket.
Follow the directions above to attach the seat.
Quick Adjustment Seat
Pull out tab on seat stop and hold open while sliding
seat out of seat pivot bracket. See Figure 3. Turn the
seat around and line up plastic seat spacers with the
slots in seat pivot bracket. Slide seat in until front seat
spacer engages the seat stop. See Figure 4. To adjust
the seat refer to the adjustment section in this manual.
NOTE: If your seat was shipped in a box, line up plastic
seat spacers with the slots in seat pivot bracket and
slide seat in until front seat spacer engages seat stop.
WARNING: Before operating your unit,
stand behind quick adjustment seat and
pull back on seat, making sure seat is
engaged in seat stop.
Attaching The Chute Deflector
The chute deflector must be attached to the right side of
the deck so that it covers the chute opening.
WARNING: Do not operate your unit
unless the chute deflector has been
properly installed.
• Make certain deck is raised to its highest position
(lift lever pulled all the way back).
Screws
Manual Adjustment Seat
Seat
Pivot
Bracket
Quick Adjustment Seat
Seat
Stop
Tab
Seat Pivot
Bracket
Quick Adjustment Seat
Seat
Spacers
Seat
Spacers
Slot
Slot
Seat
Stop
To Next Page
