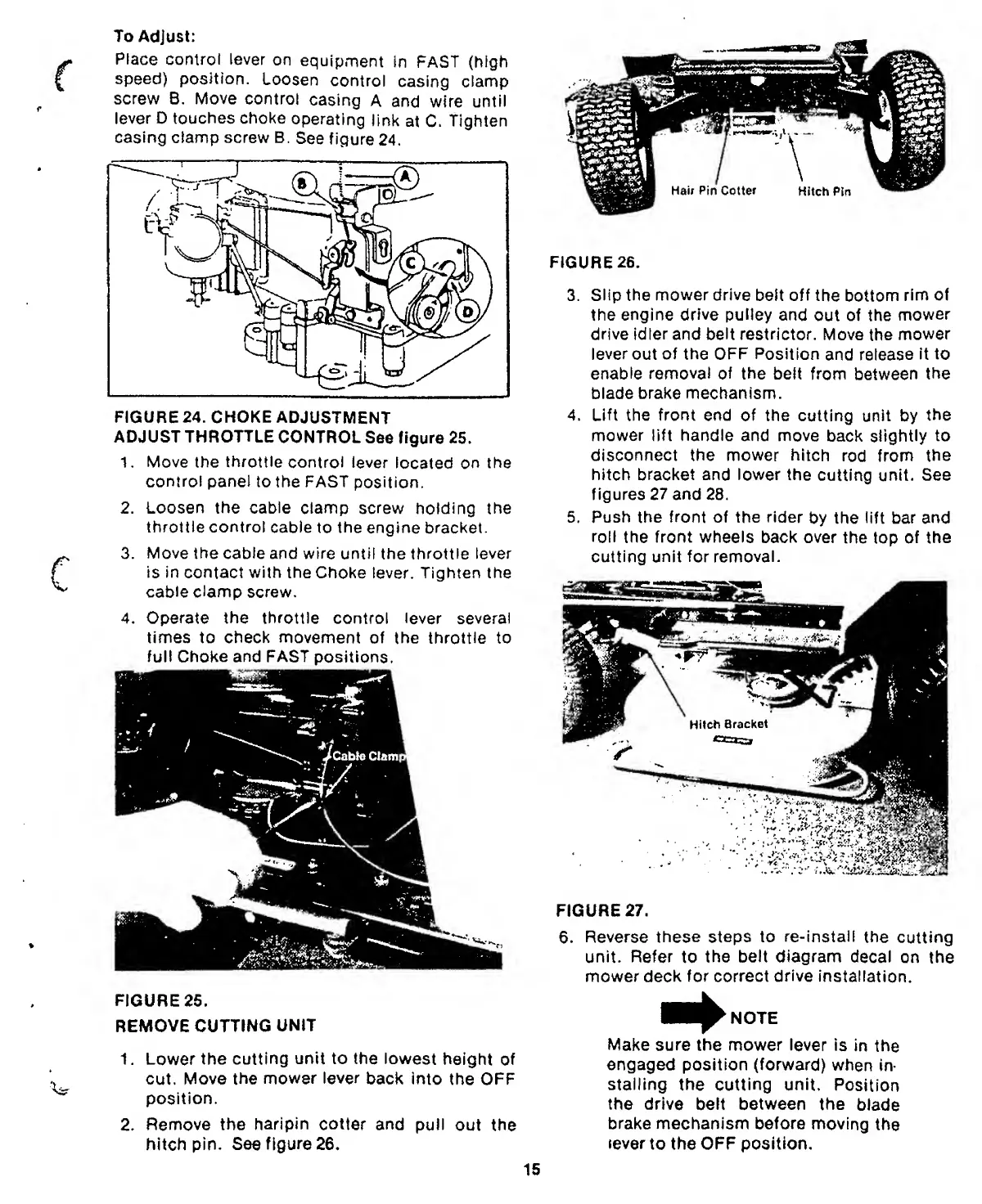

Yard-Man 13875-9 - Page 15

To Adjust:
Place control lever on equipment in FAST (high
speed) position. Loosen control casing clamp
screw B. Move control casing A and wire until
lever D touches choke operating link at C. Tighten
casing clamp screw B. See figure 24.
FIGURE 24. CHOKE ADJUSTMENT
ADJUST THROTTLE CONTROL See figure 25.
1. Move the throttle control lever located on the
control panel to the FAST position.
2. Loosen the cable clamp screw holding the
throttle control cable to the engine bracket.
3. Move the cable and wire until the throttle lever
is in contact with the Choke lever. Tighten the
cable clamp screw.
4. Operate the throttle control lever several
times to check movement of the throttle to
full Choke and FAST positions.
FIGURE 25.
REMOVE CUTTING UNIT
1. Lower the cutting unit to the lowest height of
cut. Move the mower lever back Into the OFF
position.
2. Remove the haripin cotter and pull out the
hitch pin. See figure 26.
FIGURE 26.
3. Slip the mower drive belt off the bottom rim of
the engine drive pulley and out of the mower
drive Idler and belt restrictor. Move the mower
lever out of the OFF Position and release it to
enable removal of the belt from between the
blade brake mechanism.
4. Lift the front end of the cutting unit by the
mower lift handle and move back slightly to
disconnect the mower hitch rod from the
hitch bracket and lower the cutting unit. See
figures 27 and 28.
5. Push the front of the rider by the lift bar and
roll the front wheels back over the lop of the
cutting unit for removal.
FIGURE 27.
6. R e verse these steps to re-install the cutting
unit. Refer to the belt diagram decal on the
mower deck for correct drive installation.
NOTE
Make sure the mower lever is in the
engaged position (forward) when in¬
stalling the cutting unit. Position
the drive belt between the blade
brake mechanism before moving the
lever to the OFF position.
