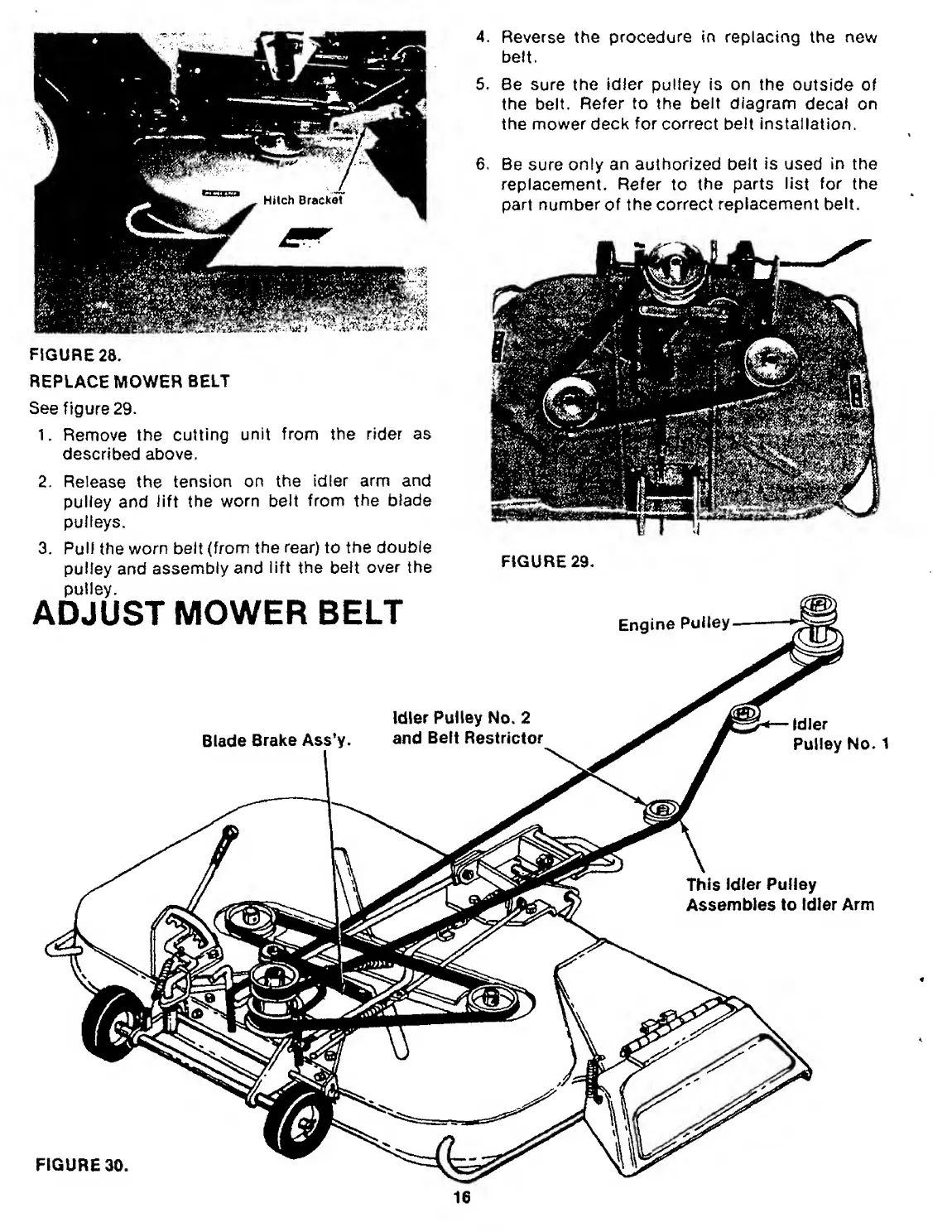

FIGURE 28.
REPLACE MOWER BELT
See figure 29.
1. Remove the cutting unit from the rider as
described above.
2. Release the tension on the idler arm and
pulley and lift the worn belt from the blade
pulleys.
3. Pull the worn belt (from the rear) to the double
pulley and assembly and lift the belt over the
4. Reverse the procedure in replacing the new
belt.
5. Be sure the idler pulley is on the outside of
the belt. Refer to the belt diagram decal on
the mower deck for correct belt installation.
6. B e sure only an authorized belt Is used in the
replacement. Refer to the parts list for the
part number of the correct replacement belt.
FIGURE 29.
