Yard-Man 13875-9 - Page 29

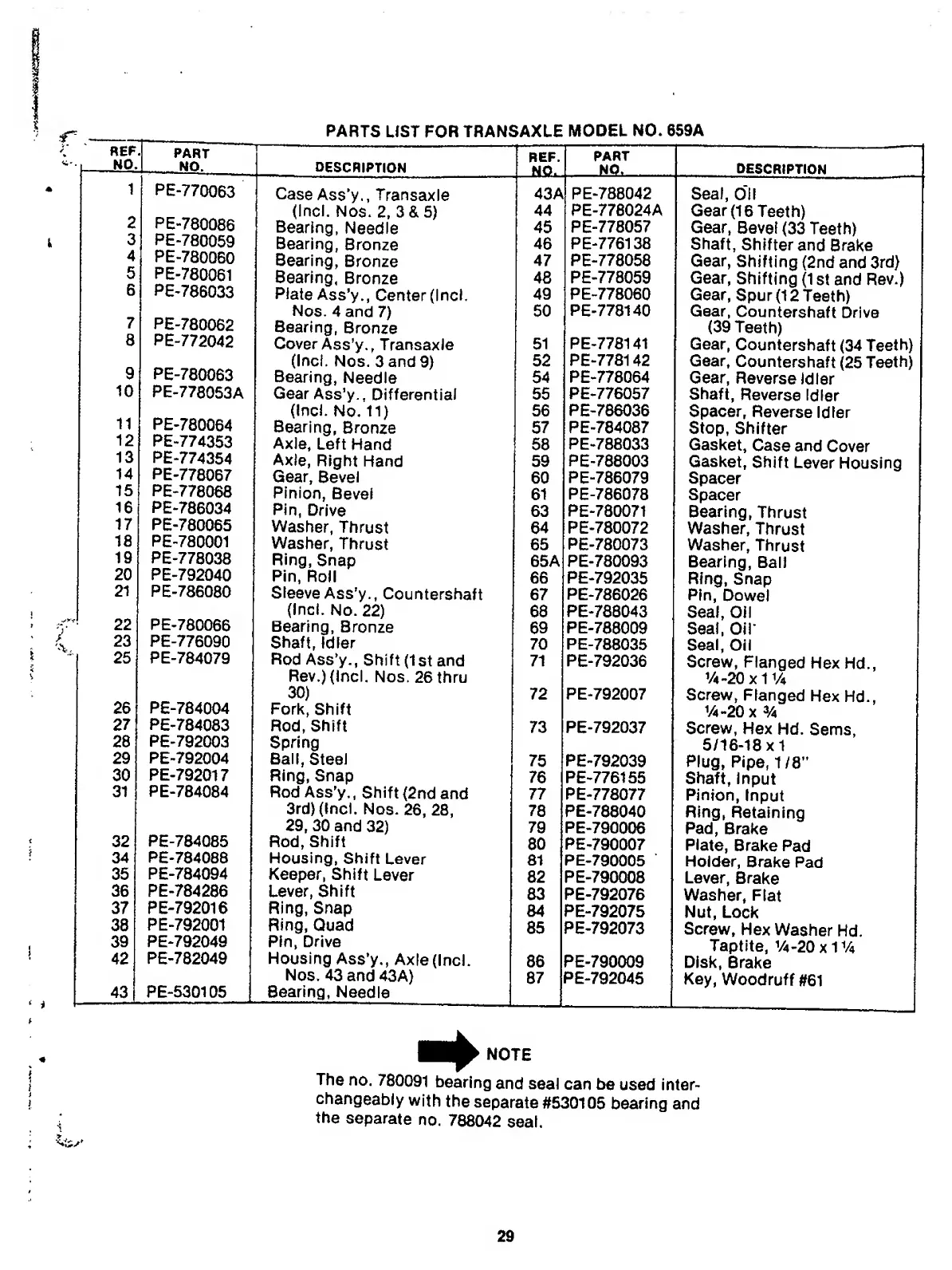

PARTS LIST FOR TRANSAXLE MODEL NO. 659A
.•r..
REF
NO.
PART
NO.
I—--
DESCRIPTION
REF.
NO.
PART
NO. DESCRIPTION
1
PE-770063
Case Ass'y., Transaxle
43A
PE-788042
Seal, Oil
(Incl. Nos. 2, 3&5)
44 PE-778024A
Gear (16 Teeth)
2
PE-780086
Bearing, Needle
45
PE-778057
Gear, Bevel (33 Teeth)
3
PE-780059
Bearing, Bronze
46
PE-776138
Shaft, Shifter and Brake
4
PE-780060
Bearing, Bronze
47 PE-778058
Gear, Shifting (2nd and 3rd)
5
PE-780061
Bearing, Bronze 48 PE-778059
Gear, Shifting (1 st and Rev.)
6
PE-786033
Plate Ass’y., Center (Incl.
49
PE-778060
Gear, Spur (12 Teeth)
Nos. 4 and 7)
50
PE-778140
Gear, Countershaft Drive
7
PE-780062
Bearing, Bronze (39 Teeth)
8
PE-772042
Cover Ass’y-r Transaxle
51
PE-778141
Gear, Countershaft (34 Teeth)
(Incl. Nos. 3 and 9)
52
PE-778142
Gear, Countershaft (25 Teeth)
9
PE-780063
Bearing, Needle
54 PE-778064
Gear, Reverse Idler
10
PE-778053A
Gear Ass’y., Differential
55
PE-776057
Shaft, Reverse Idler
(Incl. No. 11)
56 PE-786036
Spacer, Reverse Idler
11
PE-780064
Bearing, Bronze
57 PE-784087
Stop, Shifter
12
PE-774353
Axle, Left Hand
58
PE-788033
Gasket, Case and Cover
13
PE-774354
Axle, Right Hand
59 PE-788003
Gasket, Shift Lever Housing
14
PE-778067
Gear, Bevel
60 PE-786079
Spacer
15
PE-778068
Pinion, Bevel
61 PE-786078
Spacer
16
PE-786034
Pin, Drive
63 PE-780071
Bearing, Thrust
17
PE-780065
Washer, Thrust
64 PE-780072
Washer, Thrust
18
PE-780001
Washer, Thrust
65 PE-780073
Washer, Thrust
19
PE-778038
Ring, Snap
65A
PE-780093
Bearing, Ball
20
PE-792040
Pin, Roll
66
PE-792035
Ring, Snap
21
PE-786080
Sleeve Ass’y., Countershaft
67
PE-786026
Pin, Dowel
(Incl. No. 22)
68 PE-788043
Seal, Oil
22
PE-780066
Bearing, Bronze
69
PE-788009
Seal, Oil*
23
PE-776090
Shaft, Idler
70
PE-788035
Seal, Oil
25 PE-784079
Rod Ass’y., Shift (1st and
71
PE-792036
Screw, Flanged Hex Hd.,
Rev.) (Incl, Nos. 26 thru
V 4 - 2 OXIV4
30)
72 PE-792007
Screw, Flanged Hex Hd.,
26 PE-784004
Fork, Shift
V 4-20 X
27
PE-784083
Rod, Shift
73
PE-792037
Screw, Hex Hd. Sems,
28
PE-792003 Spring
5/16-18x1
29 PE-792004
Ball, Steel
75 PE-792039
Plug, Pipe, 1/8”
30 PE-792017
Ring, Snap
76
PE-776155
Shaft, Input
31 PE-784084
Rod Ass’y,, Shift (2nd and
77
PE-778077
Pinion, Input
3rd) (Incl. Nos. 26, 28,
78
PE-788040
Ring, Retaining
29, 30 and 32)
79
PE-790006
Pad, Brake
32 PE-784085 Rod, Shift
80 PE-790007
Plate, Brake Pad
34
PE-784088
Housing, Shift Lever
81
PE-790005
Holder, Brake Pad
35
PE-784094
Keeper, Shift Lever
82
PE-790008
Lever, Brake
36 PE-784286
Lever, Shift
83 PE-792076
Washer, Flat
37 PE-792016
Ring, Snap
84
PE-792075
Nut, Lock
38 PE-792001
Ring, Quad
65
PE-792073
Screw, Hex Washer Hd.
39 PE-792049 Pin, Drive
Taptite, V 4 - 2 OXIV 4
42
PE-782049
Housing Ass’y., Axle (Incl.
86
PE-790009
Disk, Brake
Nos. 43 and 43A)
87
PE-792045
Key, Woodruff #61
43
PE-530105
Bearing, Needle
NOTE
The no. 780091 bearing and sea) can be used inter¬
changeably with the separate #530105 bearing and
the separate no. 788042 seal.
29
