Yard-Man 13875-9 - Page 4

INDEX
Limited Warranty ..2
Safe Operation Practices.3
Index. 4
Assembly.5
Battery Information.5
Before Starting Engine.8
Controls.8
Operation of Controls.9
Cutting Tips.11
Lubrication.12
Maintenance.12
Adjustments. 1 4
Belt Removal. 1 5
Illustrated Parts for Rider. 20, 22, 24, 26
Parts Lists for Rider. 21,23, 25, 27
Illustrated Parts for Transaxle.28
Parts List for Transaxle.29
Electrical Diagram.30
Parts Information...Back Cover
GRASS CATCHER Model No. 19023-9 is available
as optional equipment for the mowers shown in
this manual.
I WARNING \
The mower should not be operated
without the entire grass catcher or
chute deflector in place.
NOTE
Linder normal usage bag material is
subject to wear, and should be
checked periodically. Be sure any
replacement bag complies with the
mower manufacturer’s recommen¬
dations.
For replacement bags, use only fac¬
tory authorized replacement bag No.
764-0121.
After striking a foreign object, stop
the engine. Remove wire from spark
plug, thoroughly Inspect the mower
for any damage, and repair the dam¬
age before restarting and operating
the mower.
The steering wheel and seat, with the necessary
hardware, are easily assembled to the machine.
On the electric starter models, the battery must be
activated and installed as outlined in this section.
TIRE PRESSURE
FOR SHIPPING PURPOSES, THE TIRES ON
YOUR UNIT MAY BE OVER-INFLATED. TIRE
PRESSURE SHOULD BE REDUCED BEFORE
UNIT IS PUT INTO OPERATION, PRESSURE
SHOULD BE APPROXIMATELY 15 P.S.I. EQUAL
TIRE PRESSURE SHOULD BE MAINTAINED ON
ALL TIRES. MAXIMUM TIRE PRESSURE IS 30
P.S.I.
CAUTION
Installation of tire to rim:
1. Lubricate tire beads and rim
flanges.
2. Do not exceed 30 P.S.I. when
seating beads.
3. Adjust to recommended pressure
after beads are sealed.
NOTE
Reference to right-hand or left-hand
side of machine is from the driver’s
seat facing forward.
List of Contents in Hardware Pack.
See figure 1.
A (1) Belleville Washer
B (2) Hex Screws 5/16-18 X .75” Lg.
D C

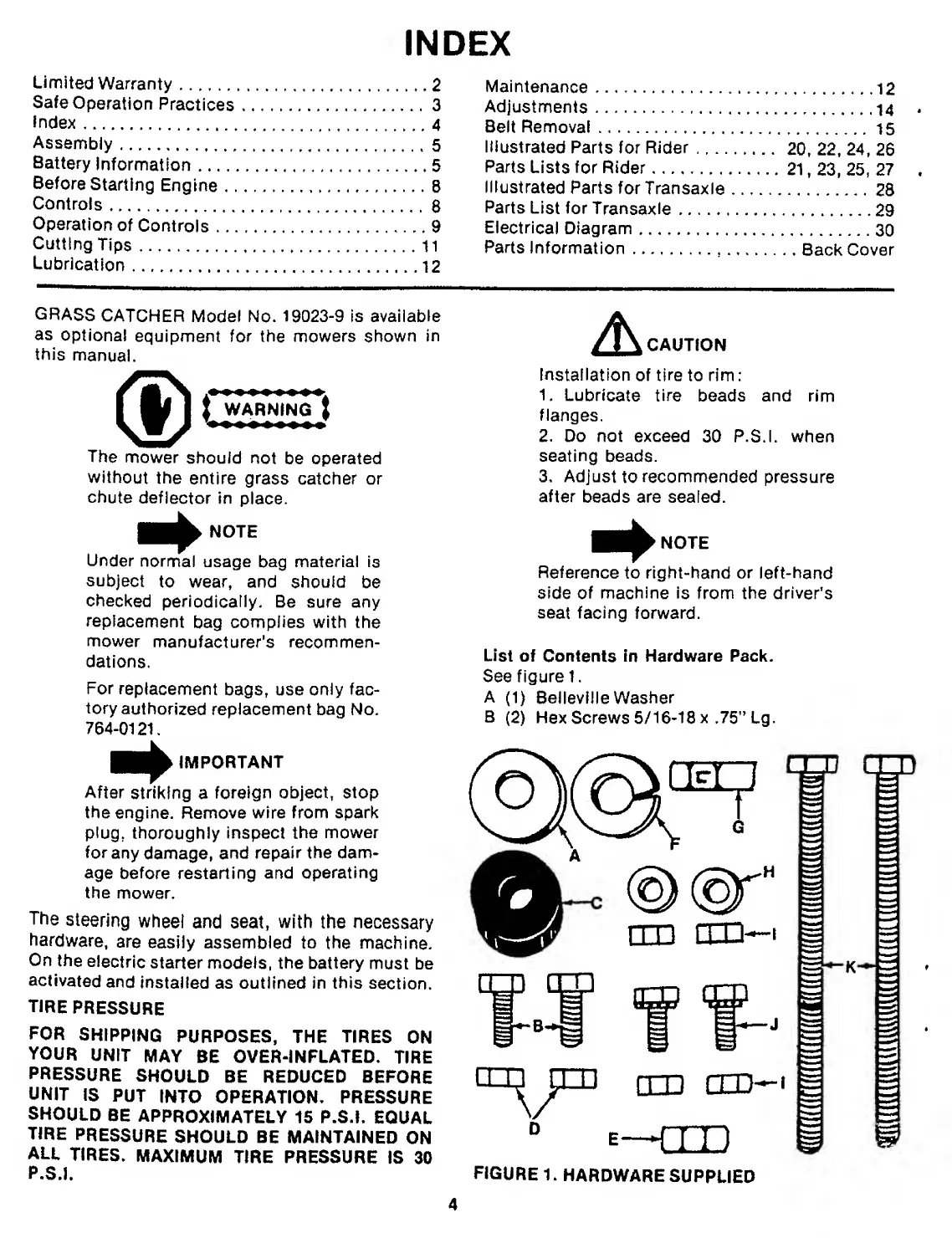

FIGURE 1. HARDWARE SUPPLIED
4
