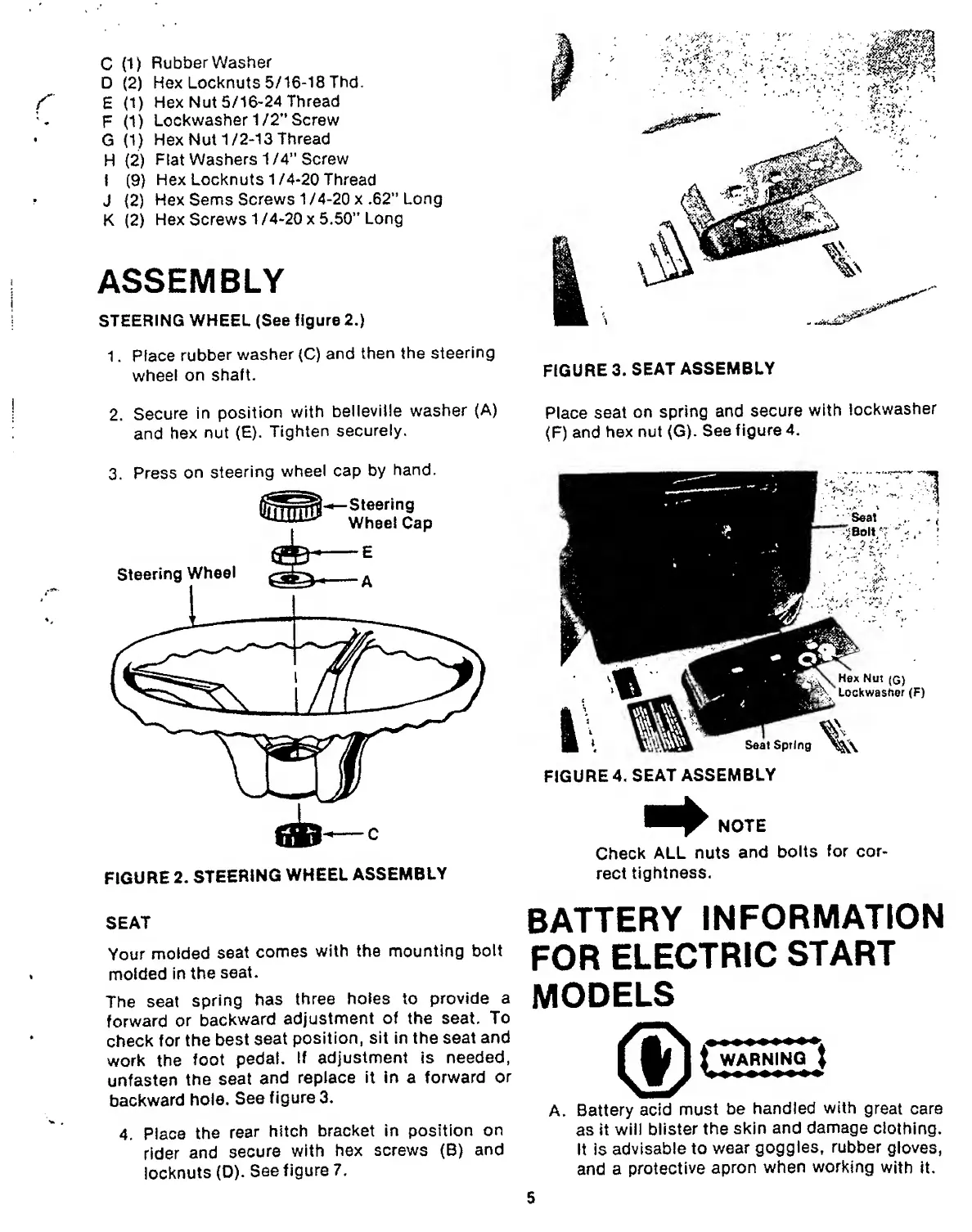

C (1) Rubber Washer
D (2) Hex Locknuts 5/16-18 Thd.
E (1) Hex Nut 5/16-24 Thread
F (1) Lockwasher 1/2” Screw
G (1) Hex Nut 1/2-13 Thread
H (2) Flat Washers 1 /4” Screw
f (9) Hex Locknuts 1 /4-20 Thread
J (2) Hex Sems Screws 1/4-20 x .62" Long
K (2) Hex Screws 1/4-20 x 5.50” Long
ASSEMBLY
STEERING WHEEL (See figure 2.)
1. Place rubber washer (C) and then the steering
wheel on shaft.
FIGURE 3. SEAT ASSEMBLY
2. Secure in position with belleville washer (A)
and hex nut (E). Tighten securely.
Place seat on spring and secure with lockwasher
(F) and hex nut (G). See figure 4.
3. Press on steering wheel cap by hand.
FIGURE 4. SEAT ASSEMBLY
NOTE
Check ALL nuts and bolts for cor¬
rect tightness.
SEAT
Your molded seat comes with the mounting bolt
molded in the seat.
The seat spring has three holes to provide a
forward or backward adjustment of the seat. To
check for the best seat position, sit in the seat and
work the foot pedal. If adjustment is needed,
unfasten the seat and replace it In a forward or
backward hole. See figure 3.
4. Place the rear hitch bracket In position on
rider and secure with hex screws (B) and
locknuts (0). See figure 7.
BATTERY INFORMATION
FOR ELECTRIC START
MODELS
A.
t WARNING t
Battery acid must be handled with great care
as it will blister the skin and damage clothing.
It is advisable to wear goggles, rubber gloves,
and a protective apron when working with It.
5
