Operating
Your Lawn
Tractor
Know Your Lawn Tractor

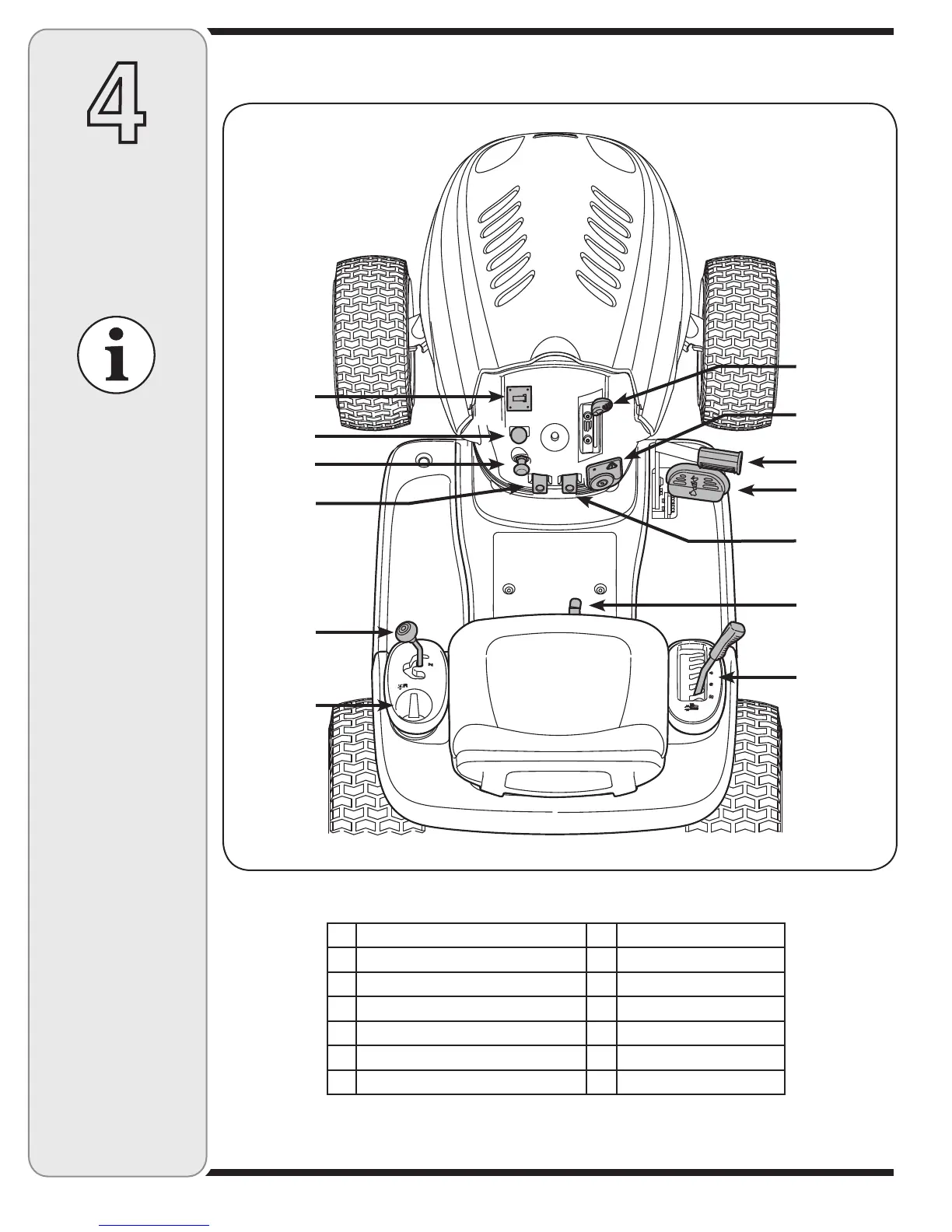

Figure 8 (NOTE: Steering wheel not shown for clarity)
A PTO (Blade Engage) Lever† G Throttle Lever
PTO (Blade Engage) Knob†
H Cruise Control Button
B Systems Indicator Monitor†/Ammeter I Ignition Switch Module
C Choke Knob† J Brake Pedal
D Parking Brake Button K Drive Pedal
E Shift Lever L Deck Lift Lever
F Cup Holder M Seat Adjustment Lever†
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.
† If so equipped
