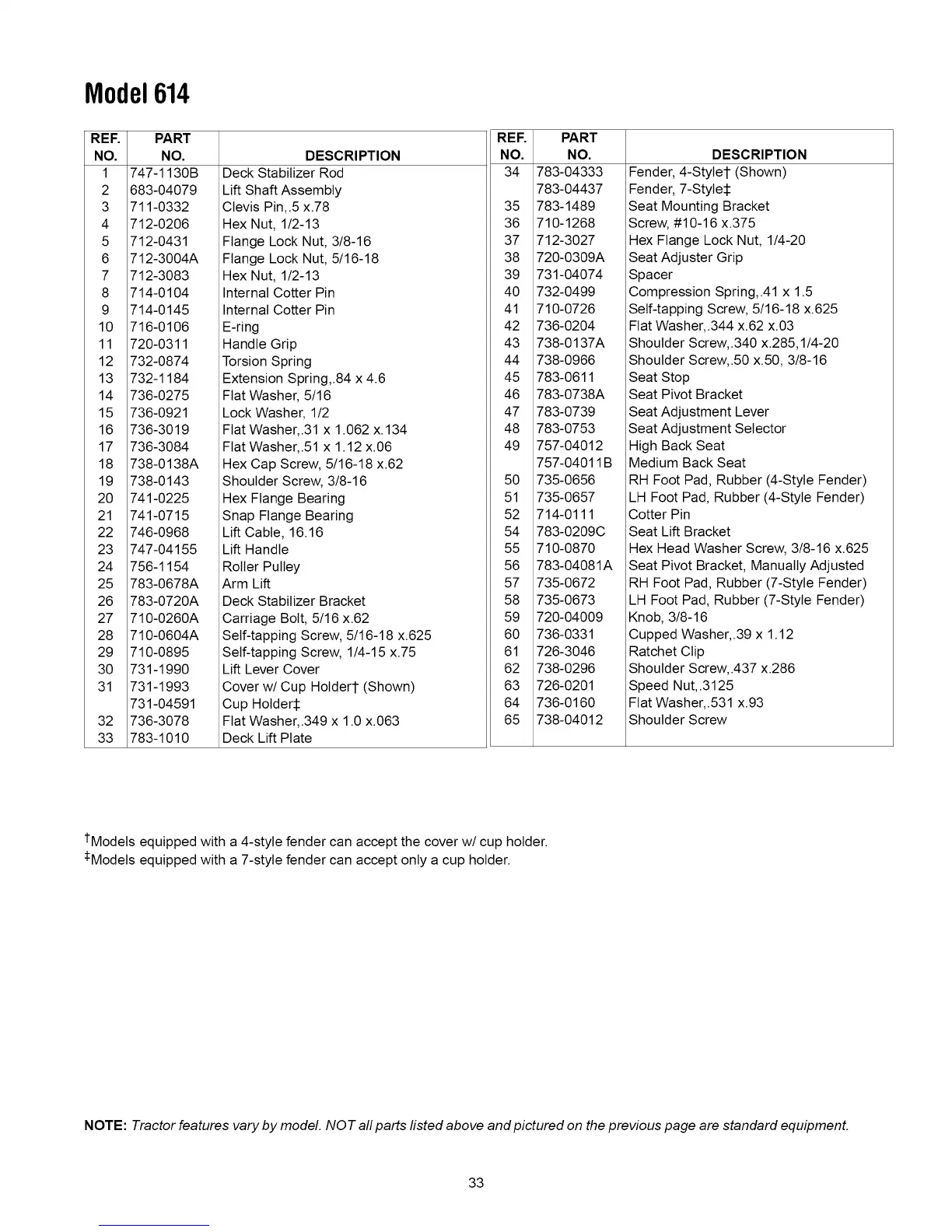

Yard-Man 614 - Page 33

Model614
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
30
31
PART
NO.
747-1130B
683-04079
711-0332
712-0206
712-0431
712-3004A
712-3083
714-0104
714-0145
716-0106
720-0311
732-0874
732-1184
736-0275
736-0921
736-3019
736-3084
738-0138A
738-0143
741-0225
741-0715
746-0968
747-04155
756-1154
783-0678A
783-0720A
710-0260A
710-0604A
710-0895
731-1990
731-1993
731-04591
32 736-3078
33 783-1010
DESCRIPTION
Deck Stabilizer Rod
Lift Shaft Assembly
Clevis Pin,.5 x.78
Hex Nut, 1/2-13
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/2-13
Internal Cotter Pin
Internal Cotter Pin
E-ring
Handle Grip
Torsion Spring
Extension Spring,.84 x 4.6
Flat Washer, 5/16
Lock Washer, 1/2
Flat Washer,.31 x 1.062 x.134
Flat Washer,.51 x 1.12 x.06
Hex Cap Screw, 5/16-18 x.62
Shoulder Screw, 3/8-16
Hex Flange Bearing
Snap Flange Bearing
Lift Cable, 16.16
Lift Handle
Roller Pulley
Arm Lift
Deck Stabilizer Bracket
Carriage Bolt, 5/16 x.62
Self-tapping Screw, 5/16-18 x.625
Self-tapping Screw, 1/4-15 x.75
Lift Lever Cover
Cover w/Cup Holder1- (Shown)
Cup Holder:l:
Flat Washer,.349 x 1.0 x.063
Deck Lift Plate
REF.
NO.
34
35
36
37
38
39
4O
41
42
43
44
45
46
47
48
49
PART
NO.
783-04333
783-04437
783-1489
710-1268
712-3027
720-0309A
731-04074
732-0499
710-0726
736-0204
738-0137A
738-0966
783-0611
783-0738A
783-0739
783-0753
757-04012
757-04011B
50 735-0656
51 735-0657
52 714-0111
54 783-0209C
55 710-0870
56 783-04081A
57 735-0672
58 735-0673
59 720-04009
60 736-0331
61 726-3046
62 738-0296
63 726-0201
64 736-0160
65 738-04012
DESCRIPTION
Fender, 4-Style1- (Shown)
Fender, 7-Style:l:
Seat Mounting Bracket
Screw, #10-16 x.375
Hex Flange Lock Nut, 1/4-20
Seat Adjuster Grip
Spacer
Compression Spring,.41 x 1.5
Self-tapping Screw, 5/16-18 x.625
Flat Washer,.344 x.62 x.03
Shoulder Screw,.340 x.285,1/4-20
Shoulder Screw,.50 x.50, 3/8-16
Seat Stop
Seat Pivot Bracket
Seat Adjustment Lever
Seat Adjustment Selector
High Back Seat
Medium Back Seat
RH Foot Pad, Rubber (4-Styte Fender)
LH Foot Pad, Rubber (4-Style Fender)
Cotter Pin
Seat Lift Bracket
Hex Head Washer Screw, 3/8-16 x.625
Seat Pivot Bracket, Manually Adjusted
RH Foot Pad, Rubber (7-Styte Fender)
LH Foot Pad, Rubber (7-Style Fender)
Knob, 3/8-16
Cupped Washer,.39 x 1.12
Ratchet Clip
Shoulder Screw,.437 x.286
Speed Nut,.3125
Flat Washer,.531 x.93
Shoulder Screw
1Models equipped with a 4-styte fender can accept the cover w/cup holder.
:_Models equipped with a 7-style fender can accept only a cup holder.
NOTE: Tractor features vary by model. NOT all parts fisted above and pictured on the previous page are standard equipmenL
