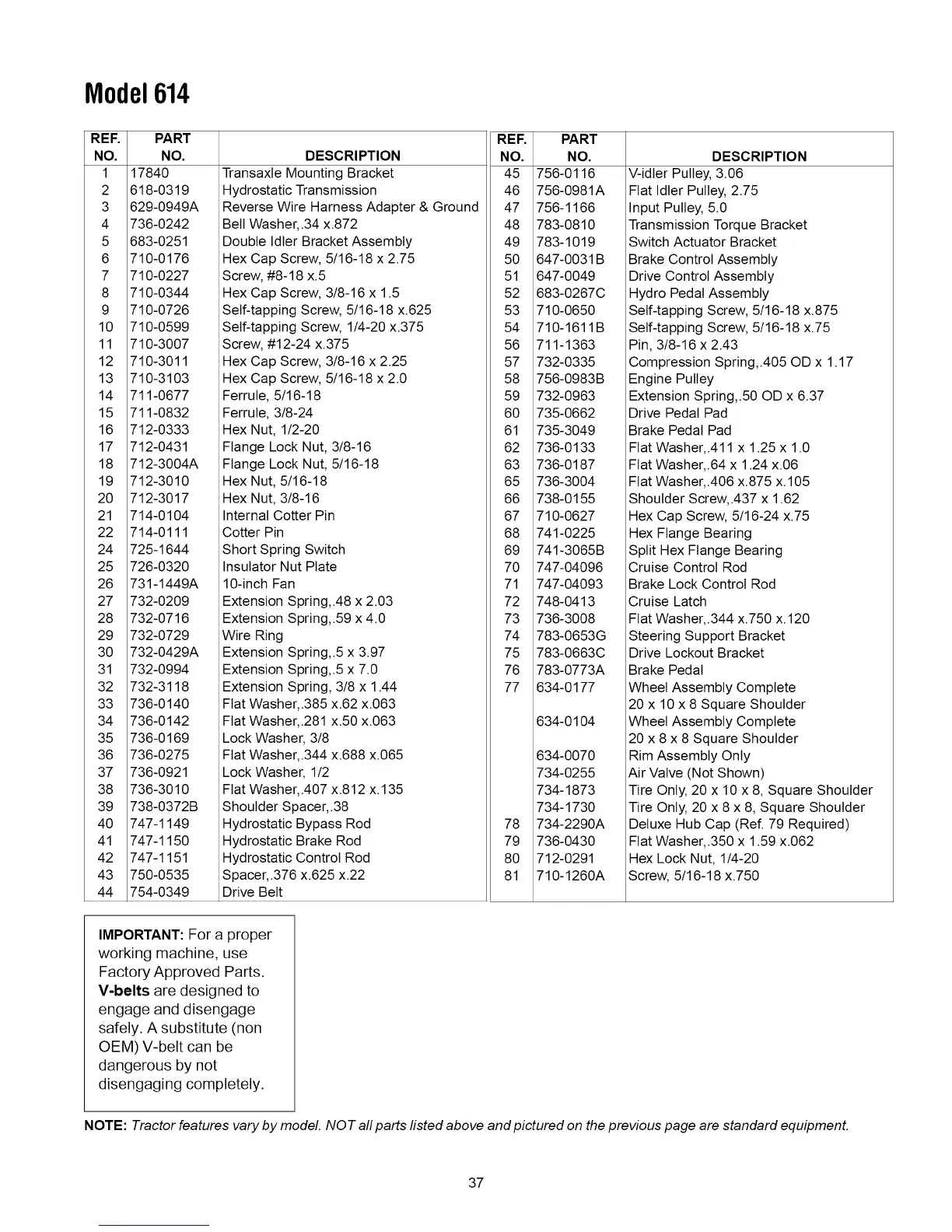

Yard-Man 614 - Page 37

Model614
REF. PART
NO. NO.
1 17840
2 618-0319
3 629-0949A
4 736-0242
5 683-0251
6 710-0176
7 710-0227
8 710-0344
9 710-0726
10 710-0599
11 710-3007
12 710-3011
13 710-3103
14 711-0677
15 711-0832
16 712-0333
17 712-0431
18 712-3004A
19 712-3010
20 712-3017
21 714-0104
22 714-0111
24 725-1644
25 726-0320
26 731-1449A
27 732-0209
28 732-0716
29 732-0729
30 732-0429A
31 732-0994
32 732-3118
33 736-0140
34 736-0142
35 736-0169
36 736-0275
37 736-0921
38 736-3010
39 738-0372B
40 747-1149
41 747-1150
42 747-1151
43 750-0535
44 754-0349
DESCRIPTION
Transaxle Mounting Bracket
Hydrostatic Transmission
Reverse Wire Harness Adapter & Ground
Belt Washer,.34 x.872
Double Idler Bracket Assembly
Hex Cap Screw, 5/16-18 x 2.75
Screw, #8-18 x.5
Hex Cap Screw, 3/8-16 x 1.5
Self-tapping Screw, 5/16-18 x.625
Self-tapping Screw, 1/4-20 x.375
Screw, #12-24 x.375
Hex Cap Screw, 3/8-16 x 2.25
Hex Cap Screw, 5/16-18 x 2.0
Ferrule, 5/16-18
Ferrule, 3/8-24
Hex Nut, 1/2-20
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 5/16-18
Hex Nut, 3/8-16
Internal Cotter Pin
Cotter Pin
Short Spring Switch
Insulator Nut Plate
10-inch Fan
Extension Spring,.48 x 2.03
Extension Spring,.59 x 4.0
Wire Ring
Extension Spring,.5 x 3.97
Extension Spring,.5 x 7.0
Extension Spring, 3/8 x 1.44
Flat Washer,.385 x.62 x.063
Flat Washer,.281 x.50 x.063
Lock Washer, 3/8
Flat Washer,.344 x.688 x.065
Lock Washer, 1/2
Flat Washer,.407 x.812 x. 135
Shoulder Spacer,.38
Hydrostatic Bypass Rod
Hydrostatic Brake Rod
Hydrostatic Control Rod
Spacer,.376 x.625 x.22
Drive Belt
REF.
NO.
45
46
47
48
49
5O
51
52
53
54
56
57
58
59
60
61
62
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
8O
81
PART
NO.
756-0116
756-0981A
756-1166
783-0810
783-1019
647-0031B
647-0049
683-0267C
710-0650
710-1611B
711-1363
732-0335
756-0983B
732-0963
735-0662
735-3049
736-0133
736-0187
736-3004
738-0155
710-0627
741-0225
741-3065B
747-04096
747-04093
748-0413
736-3008
783-0653G
783-0663C
783-0773A
634-0177
634-0104
634-0070
734-0255
734-1873
734-1730
734-2290A
736-0430
712-0291
710-1260A
DESCRIPTION
V-idler Pulley, 3.06
Flat Idler Pulley, 2.75
Input Pulley, 5.0
Transmission Torque Bracket
Switch Actuator Bracket
Brake Control Assembly
Drive Control Assembly
Hydro Pedal Assembly
Self-tapping Screw, 5/16-18 x.875
Self-tapping Screw, 5/16-18 x.75
Pin, 3/8-16 x 2.43
Compression Spring,.405 OD x 1.17
Engine Pulley
Extension Spring,.50 OD x 6.37
Drive Pedal Pad
Brake Pedal Pad
Flat Washer,.411 x 1.25 x 1.0
Flat Washer,.64 x 1.24 x.06
Flat Washer,.406 x.875 x.105
Shoulder Screw,.437 x 1.62
Hex Cap Screw, 5/16-24 x.75
Hex Flange Bearing
Split Hex Flange Bearing
Cruise Control Rod
Brake Lock Control Rod
Cruise Latch
Flat Washer,.344 x.750 x.120
Steering Support Bracket
Drive Lockout Bracket
Brake Pedal
Wheel Assembly Complete
20 x 10 x 8 Square Shoulder
Wheel Assembly Complete
20 x 8 x 8 Square Shoulder
Rim Assembly Only
Air Valve (Not Shown)
Tire Only, 20 x 10 x 8, Square Shoulder
Tire Only, 20 x 8 x 8, Square Shoulder
Deluxe Hub Cap (Ref. 79 Required)
Flat Washer,.350 x 1.59 x.062
Hex Lock Nut, 1/4-20
Screw, 5/16-18 x.750
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model. NOT all parts fisted above and pictured on the previous page are standard equipment.
37
