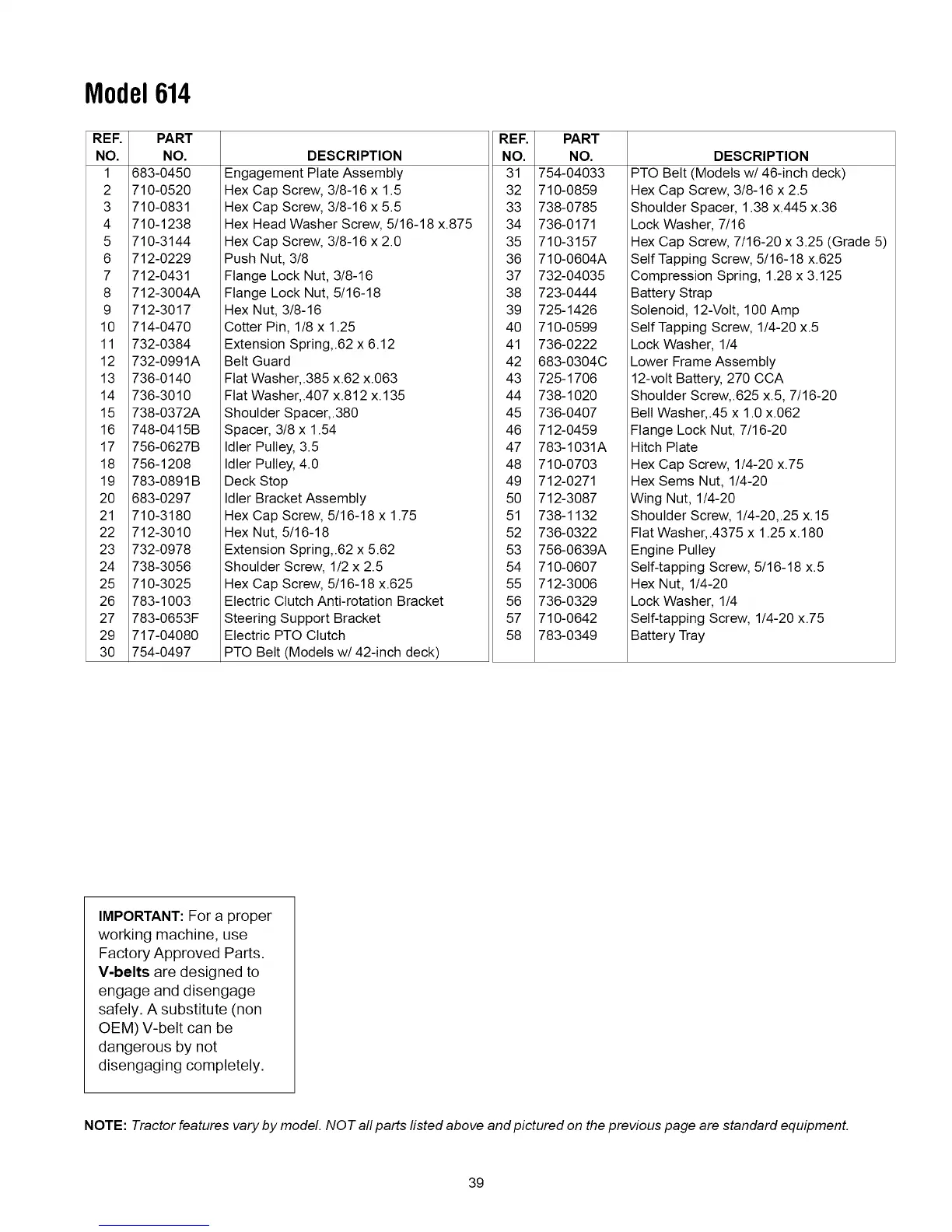

Yard-Man 614 - Page 39

Model614
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
29
30
PART
NO.
683-0450
710-0520
710-0831
710-1238
710-3144
712-0229
712-0431
712-3004A
712-3017
714-0470
732-0384
732-0991A
736-0140
736-3010
738-0372A
748-0415B
756-0627B
756-1208
783-0891B
683-0297
710-3180
712-3010
732-0978
738-3056
710-3025
783-1003
783-0653F
717-04080
754-0497
DESCRIPTION
Engagement Plate Assembly
Hex Cap Screw, 3/8-16 x 1.5
Hex Cap Screw, 3/8-16 x 5.5
Hex Head Washer Screw, 5/16-18 x.875
Hex Cap Screw, 3/8-16 x 2.0
Push Nut, 3/8
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 3/8-16
Cotter Pin, 1/8 x 1.25
Extension Spring,.62 x 6.12
Belt Guard
Flat Washer,.385 x.62 x.063
Flat Washer,.407 x.812 x. 135
Shoulder Spacer,.380
Spacer, 3/8 x 1.54
Idler Pulley, 3.5
Idler Pulley, 4.0
Deck Stop
Idler Bracket Assembly
Hex Cap Screw, 5/16-18 x 1.75
Hex Nut, 5/16-18
Extension Spring,.62 x 5.62
Shoulder Screw, 1/2 x 2.5
Hex Cap Screw, 5/16-18 x.625
Electric Clutch Anti-rotation Bracket
Steering Support Bracket
Electric PTO Clutch
PTO Belt (Models w/42-inch deck)
REF.
NO.
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
PART
NO.
754-04033
710-0859
738-0785
736-0171
710-3157
710-0604A
732-04035
723-0444
725-1426
710-0599
736-0222
683-0304C
725-1706
738-1020
736-0407
712-0459
783-1031A
710-0703
712-0271
712-3087
738-1132
736-0322
756-0639A
710-0607
712-3006
736-0329
710-0642
783-0349
DESCRIPTION
PTO Belt (Models w/46-inch deck)
Hex Cap Screw, 3/8-16 x 2.5
Shoulder Spacer, 1.38 x.445 x.36
Lock Washer, 7/16
Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
Self Tapping Screw, 5/16-18 x.625
Compression Spring, 1.28 x 3.125
Battery Strap
Solenoid, 12-Volt, 100 Amp
Self Tapping Screw, 1/4-20 x.5
Lock Washer, 1/4
Lower Frame Assembly
12-volt Battery, 270 CCA
Shoulder Screw,.625 x.5, 7/16-20
Belt Washer,.45 x 1.0 x.062
Flange Lock Nut, 7/16-20
Hitch Plate
Hex Cap Screw, 1/4-20 x.75
Hex Sems Nut, 1/4-20
Wing Nut, 1/4-20
Shoulder Screw, 1/4-20,.25 x.15
Flat Washer,.4375 x 1.25 x.180
Engine Pulley
Self-tapping Screw, 5/16-18 x.5
Hex Nut, 1/4-20
Lock Washer, 1/4
Self-tapping Screw, 1/4-20 x.75
Battery Tray
IMPORTANT: For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model. NOT all parts fisted above and pictured on the previous page are standard equipment.
39
