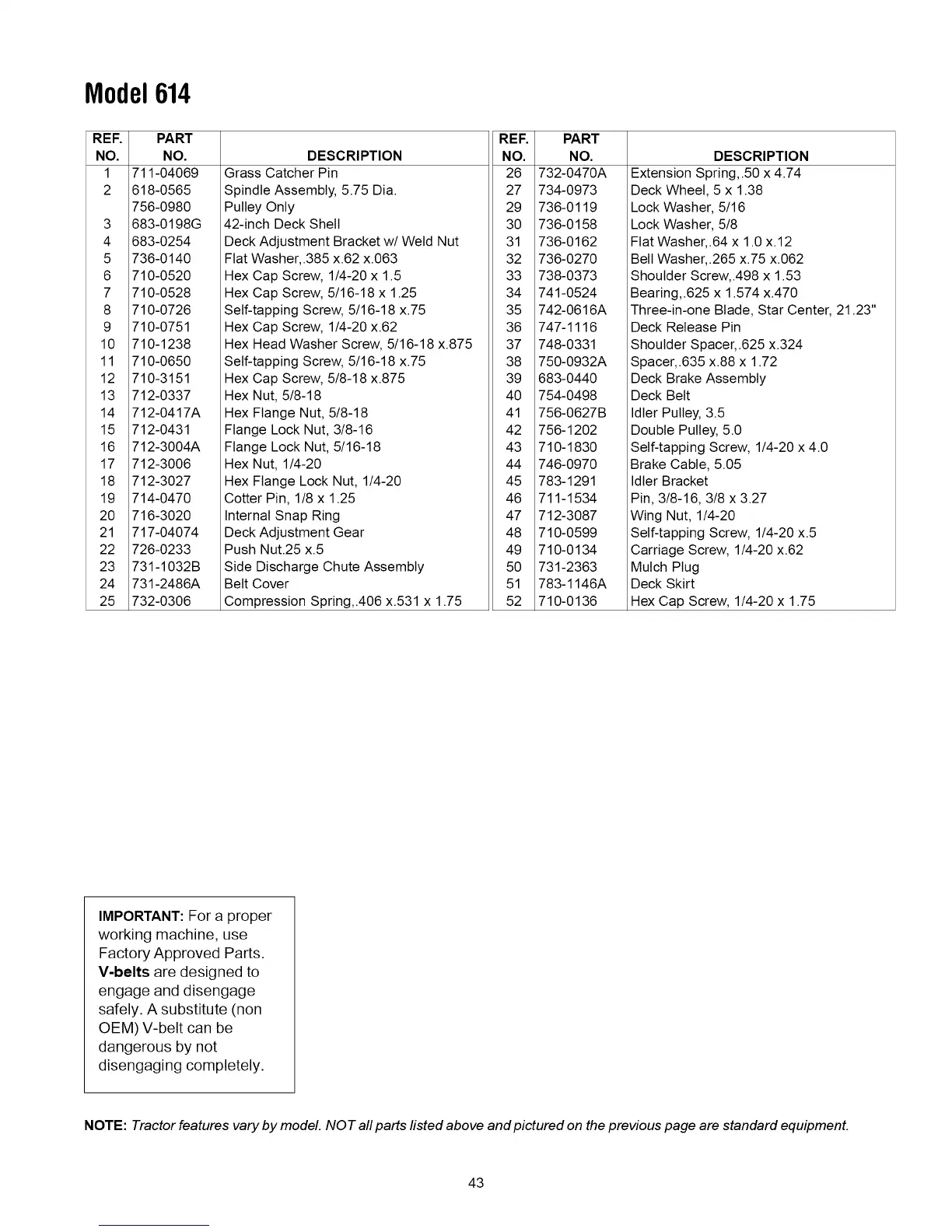

Yard-Man 614 - Page 43

Model614
REF. PART
NO. NO.
1 711-04069
2 618-0565
756-0980
3 683-0198G
4 683-0254
5 736-0140
6 710-0520
7 710-0528
8 710-0726
9 710-0751
10 710-1238
11 710-0650
12 710-3151
13 712-0337
14 712-0417A
15 712-0431
16 712-3004A
17 712-3006
18 712-3027
19 714-0470
20 716-3020
21 717-04074
22 726-0233
23 731-1032B
24 731-2486A
25 732-0306
DESCRIPTION
Grass Catcher Pin
Spindle Assembly, 5.75 Dia.
Pulley Only
42-inch Deck Shell
Deck Adjustment Bracket w/Weld Nut
Flat Washer,.385 x.62 x.063
Hex Cap Screw, 1/4-20 x 1.5
Hex Cap Screw, 5/16-18 x 1.25
Self-tapping Screw, 5/16-18 x.75
Hex Cap Screw, 1/4-20 x.62
Hex Head Washer Screw, 5/16-18 x.875
Self-tapping Screw, 5/16-18 x.75
REF.
NO.
26
27
29
3O
31
32
33
34
35
36
37
38
PART
NO.
732-0470A
734-0973
736-0119
736-0158
736-0162
736-0270
738-0373
741-0524
742-0616A
747-1116
748-0331
750-0932A
DESCRIPTION
Extension Spring,.50 x 4.74
Deck Wheel, 5 x 1.38
Lock Washer, 5/16
Lock Washer, 5/8
Flat Washer,.64 x 1.0 x.12
Belt Washer,.265 x.75 x.062
Shoulder Screw,.498 x 1.53
Bearing,.625 x 1.574 x.470
Three-in-one Blade, Star Center, 21.23"
Deck Release Pin
Shoulder Spacer,.625 x.324
Spacer,.635 x.88 x 1.72
Hex Cap Screw, 5/8-18 x.875
Hex Nut, 5/8-18
Hex Flange Nut, 5/8-18
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/4-20
Hex Flange Lock Nut, 1/4-20
Cotter Pin, 1/8 x 1.25
Internal Snap Ring
Deck Adjustment Gear
Push Nut.25 x.5
Side Discharge Chute Assembly
Belt Cover
Compression Spring,.406 x.531 x 1.75
39
40
41
42
43
44
45
46
47
48
49
5O
51
52
683-0440
754-0498
756-0627B
756-1202
710-1830
746-0970
783-1291
711-1534
712-3087
710-0599
710-0134
731-2363
783-1146A
710-0136
Deck Brake Assembly
Deck Belt
Idler Pulley, 3.5
Double Pulley, 5.0
Self-tapping Screw, 1/4-20 x 4.0
Brake Cable, 5.05
Idler Bracket
Pin, 3/8-16, 3/8 x 3.27
Wing Nut, 1/4-20
Self-tapping Screw, 1/4-20 x.5
Carriage Screw, 1/4-20 x.62
Mulch Plug
Deck Skirt
Hex Cap Screw, 1/4-20 x 1.75
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard equipment.
43
