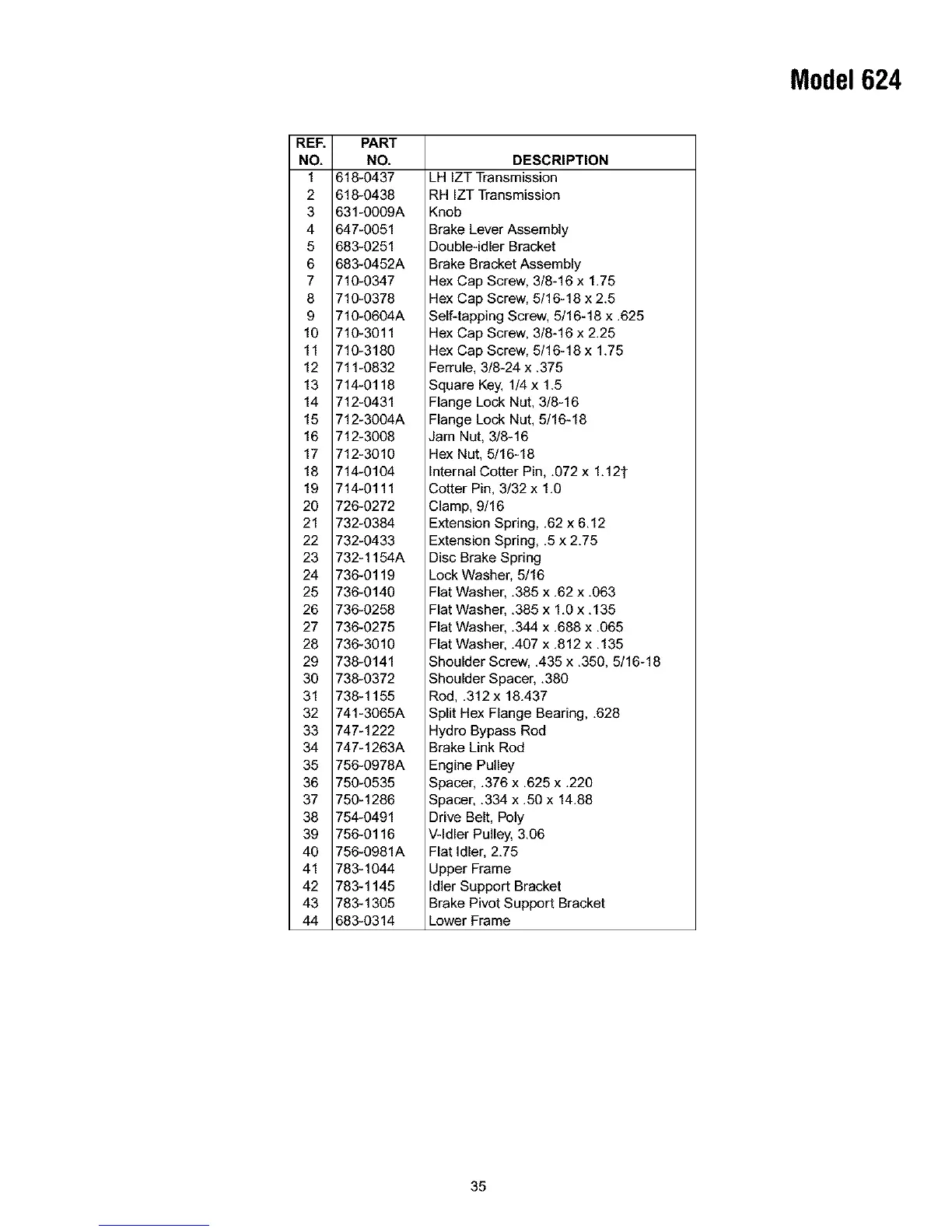

Yard-Man 624 - Page 35

Model624
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
PART
NO.
618-0437
618-0438
631-0009A
647-0051
683-0251
683-0452A
710-0347
710-0378
710-0604A
710-3011
710-3180
711-0832
714-0118
712-0431
712-3004A
712-3008
712-3010
714-0104
714-0111
726-0272
732-0384
732-0433
732-1154A
736-0119
736-0140
736-0258
736-0275
736-3010
738-0141
738-0372
738-1155
741-3065A
747-1222
747-1263A
756-0978A
750-0535
750-1286
754-0491
756-0116
756-0981A
783-1044
783-1145
783-1305
683-0314
DESCRIPTION
LH IZT Transmission
RH IZT Transmission
Knob
Brake Lever Assembly
Double-idler Bracket
Brake Bracket Assembly
Hex Cap Screw, 3/8-16 x 1.75
Hex Cap Screw, 5/16-18 x 2.5
Self-tapping Screw, 5/16-18 x .625
Hex Cap Screw, 3/8-16 x 2.25
Hex Cap Screw, 5/16-18 x 1.75
Ferrule, 3/8-24 x .375
Square Key, 1/4 x 1.5
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Jam Nut, 3/8-16
Hex Nut, 5/16-18
Internal Cotter Pin, .072 x 1.12t
Cotter Pin, 3/32 x 1.0
Clamp, 9/16
Extension Spring, .62 x 6.12
Extension Spring, .5 x 2.75
Disc Brake Spring
Lock Washer, 5/16
Flat Washer, .385 x .62 x .063
Flat Washer, .385 x 1.0 x .135
Flat Washer, .344 x .688 x .065
Flat Washer, .407 x .812 x .135
Shoulder Screw, .435 x .350, 5/16-18
Shoulder Spacer, .380
Rod, .312 x 18.437
Split Hex Flange Bearing, .628
Hydro Bypass Rod
Brake Link Rod
Engine Pulley
Spacer, .376 x .625 x .220
Spacer, .334 x .50 x 14.88
Drive Belt, Poly
V-Idler Pulley, 3.06
Flat Idler, 2.75
Upper Frame
Idler Support Bracket
Brake Pivot Support Bracket
Lower Frame
