Yard-Man Model 503 - Parts List for Model 503

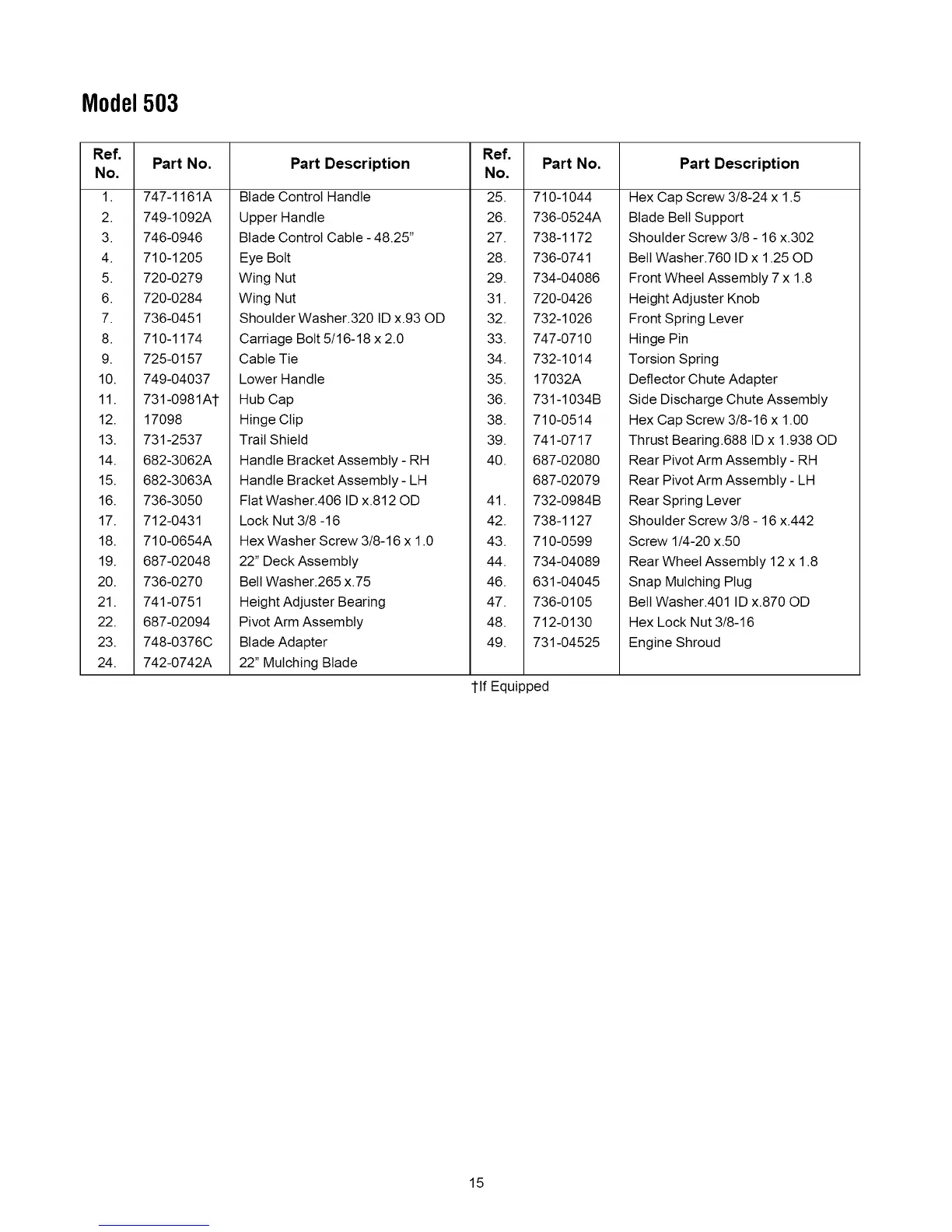

Model503
Ref,
No,
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Part No.
747-1161A
749-1092A
746-0946
710-1205
720-0279
720-0284
736-0451
710-1174
725-0157
749-04037
731-0981A_
17098
731-2537
682-3062A
682-3063A
736-3050
712-0431
710-0654A
687-02048
736-0270
741-0751
687-02094
748-0376C
742-0742A
Part Description
Blade Control Handle
Upper Handle
Blade Control Cable - 48.25"
Eye Bolt
Wing Nut
Wing Nut
Shoulder Washer.320 ID x.93 OD
Carriage Bolt 5/16-18 x 2.0
Cable Tie
Lower Handle
Hub Cap
Hinge Clip
Trail Shield
Handle Bracket Assembly - RH
Handle Bracket Assembly- LH
Flat Washer.406 ID x.812 OD
Lock Nut 3/8 -16
Hex Washer Screw 3/8-16 x 1.0
22" Deck Assembly
Belt Washer.265 x.75
Height Adjuster Bearing
Pivot Arm Assembly
Blade Adapter
22" Mulching Blade
Ref.
Part No.
No.
25. 710-1044
26. 736-0524A
27. 738-1172
28. 736-0741
29. 734-04086
31. 720-0426
32. 732-1026
33. 747-0710
34. 732-1014
35. 17032A
36. 731-1034B
38. 710-0514
39. 741-0717
40. 687-02080
687-02079
41. 732-0984B
42. 738-1127
43. 710-0599
44. 734-04089
46. 631-04045
47. 736-0105
48. 712-0130
49. 731-04525
?lf Equipped
Part Description
Hex Cap Screw 3/8-24 x 1.5
Blade Bell Support
Shoulder Screw 3/8 - 16 x.302
Bell Washer.760 ID x 1.25 OD
Front Wheel Assembly 7 x 1.8
Height Adjuster Knob
Front Spring Lever
Hinge Pin
Torsion Spring
Deflector Chute Adapter
Side Discharge Chute Assembly
Hex Cap Screw 3/8-16 x 1.00
Thrust Bearing.688 ID x 1.938 OD
Rear Pivot Arm Assembly - RH
Rear Pivot Arm Assembly - LH
Rear Spring Lever
Shoulder Screw 3/8 - 16 x.442
Screw 1/4-20 x.50
Rear Wheel Assembly 12 x 1.8
Snap Mulching Plug
Bell Washer.401 ID x.870 OD
Hex Lock Nut 3/8-16
Engine Shroud
15
