E23

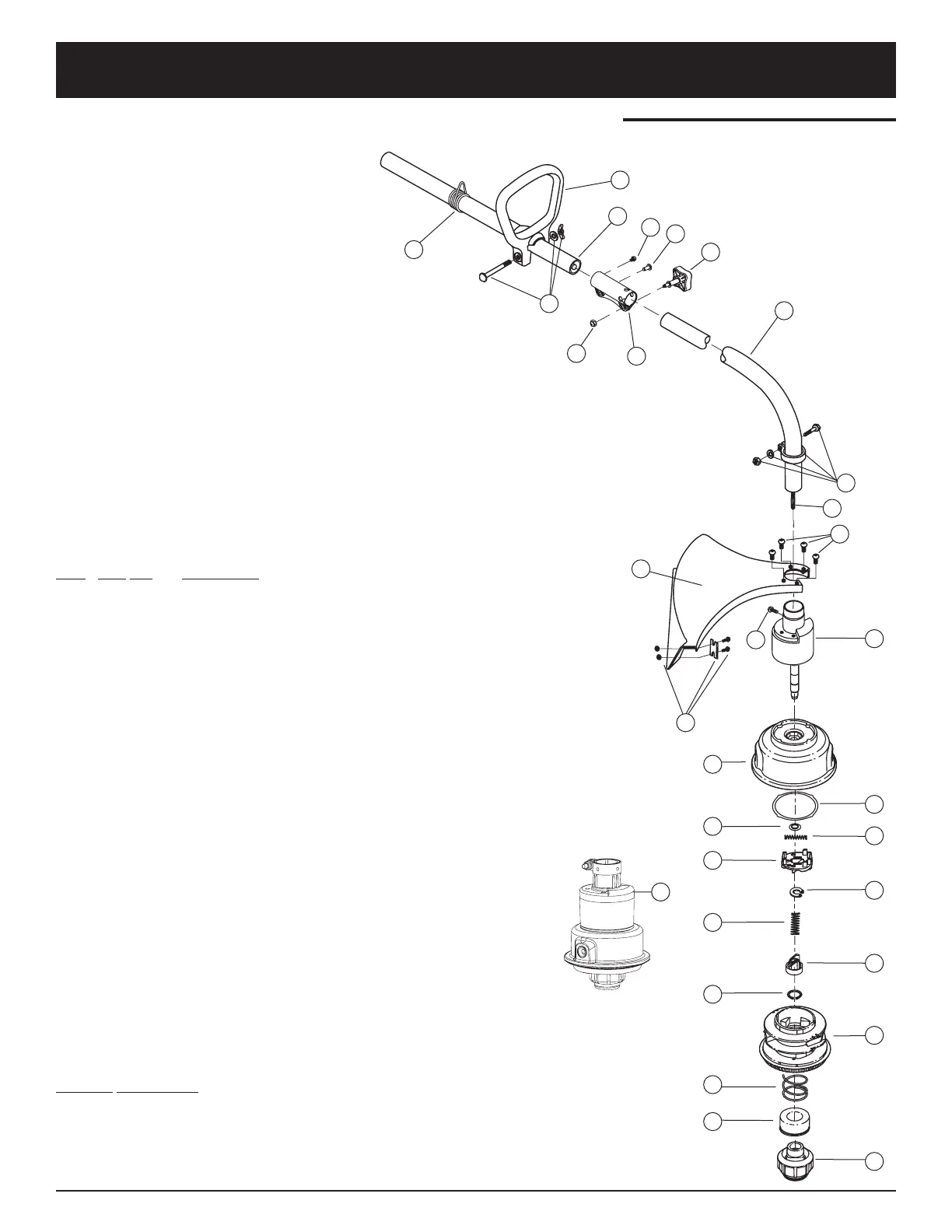

PARTS LIST
2
1
3
10
4
6
8
7
5
9
11
12
14
13
16
17
18
20
21
19
22
24
23
25
27
26
28
29
30
15
Item
Part No. Description
1 791-610327 Shoulder Harness Clamp
2 791-153064 D-Handle (includes 3)
3 791-181587 D-Handle Hardware Assembly
4 753-04345 Upper Drive Shaft Housing Assembly
5 791-182928 Split Boom Coupler (includes 6-9)
6 791-182057 Screw
7 791-181951 Adjustment Knob
8 791-181617 Bolt
9 753-04386 Nut
10 753-1218 Lower Drive Shaft Assembly
11 791-153597 Lower Clamp Assembly
12 791-181852 Flexible Drive Shaft
13 791-181857 Bushing Housing Assembly
14 791-145569 Anti-Rotation Screw
15 791-180531 Guard Mounting Screws
16 791-683274 Guard Assembly (includes 17)
17 791-682061 Blade Assembly
18 791-181457 Outer Spool Assembly (includes 19)
19 791-181458 Retainer
20 791-181561 Thrust Washer
21 791-181459 Small Spring
22 753-04257 Slider
23 791-181532 E-Clip
24 791-181531 Spring
25 791-181462 Plunger
26 791-181463 C-Clip
27 791-181464 Inner Reel
28 791-181465B Large Spring
29 791-181467 Foam Seal
30 791-181468B Bump Head Knob Assembly (includes 28 & 29)
31 791-181469B Complete Cutting Head Assembly
(includes 11 & 13-30)
Optional
Accessories
* 791-682075B Shoulder Strap Harness
* 791-181460B Reel w/.080 Line
* not shown
31
BOOM AND TRIMMER PARTS - MODEL YM132
120 VOLT ELECTRIC TRIMMER
