E22
PARTS LIST

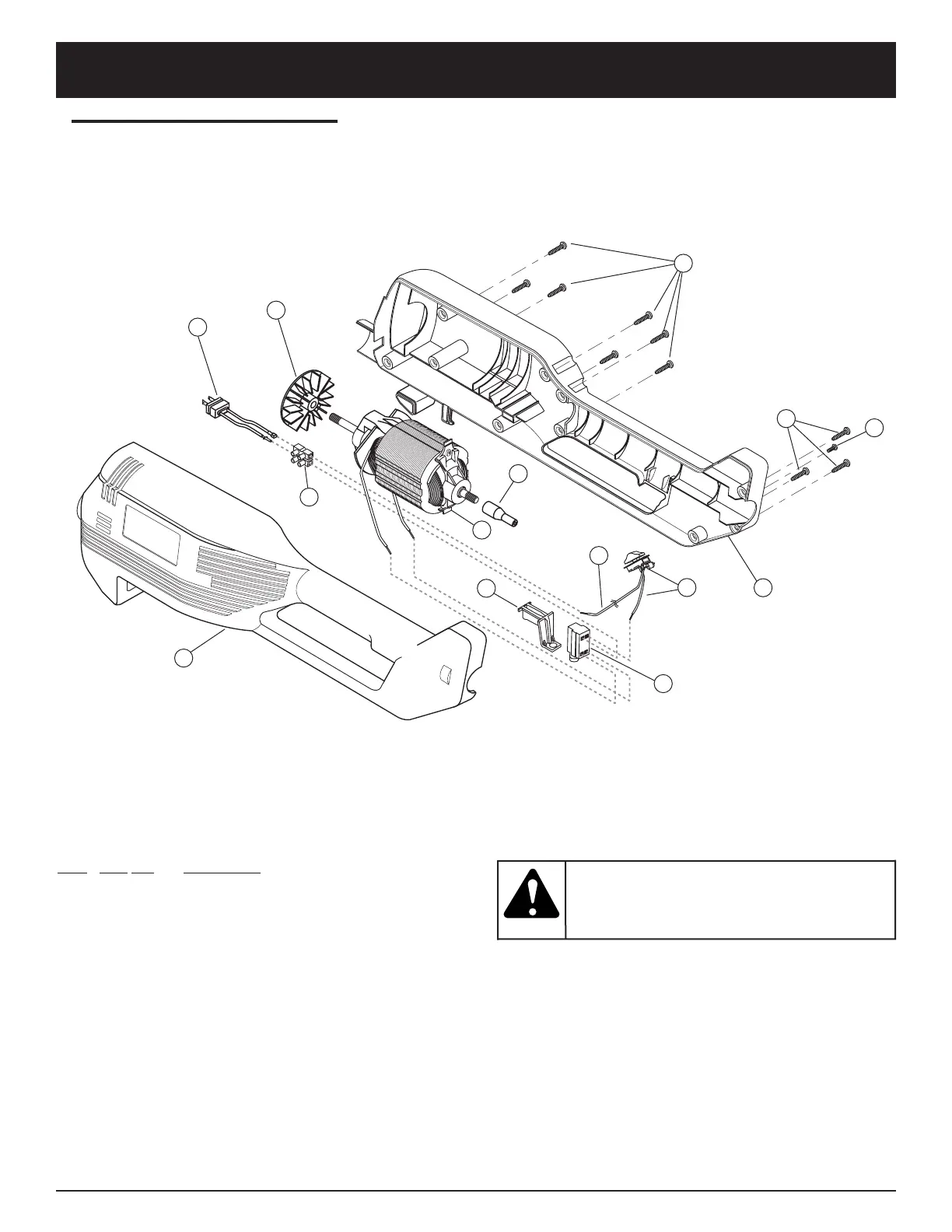

MOTOR AND HOUSING PARTS–MODEL YM132
120 VOLT ELECTRIC TRIMMER
Only authorized
service technicians
should perform adjustments to double-
insulated units.
CAUTION:
11
12
8
9
10
3
7
6
4
5
3
2
1
Item Part No. Description
1 791-180300 Screw, Housing Set
2 791-145569 Anti-Rotation Screw
3 753-04608 Motor Housing Assembly
4 791-180302 Two-Speed Switch Assembly
5 791-180559 Lead Wires
6 791-180150 Switch (includes 7)
7 791-182318 Trigger
8 791-180305 Terminal Block
9 791-180154 Motor Assembly (includes 10-11)
10 791-180152 Driver
11 791-180155 Cooling Fan
12 791-181645 Power Cord Assembly
