Yardline BRAXTON User Manual

FINISH

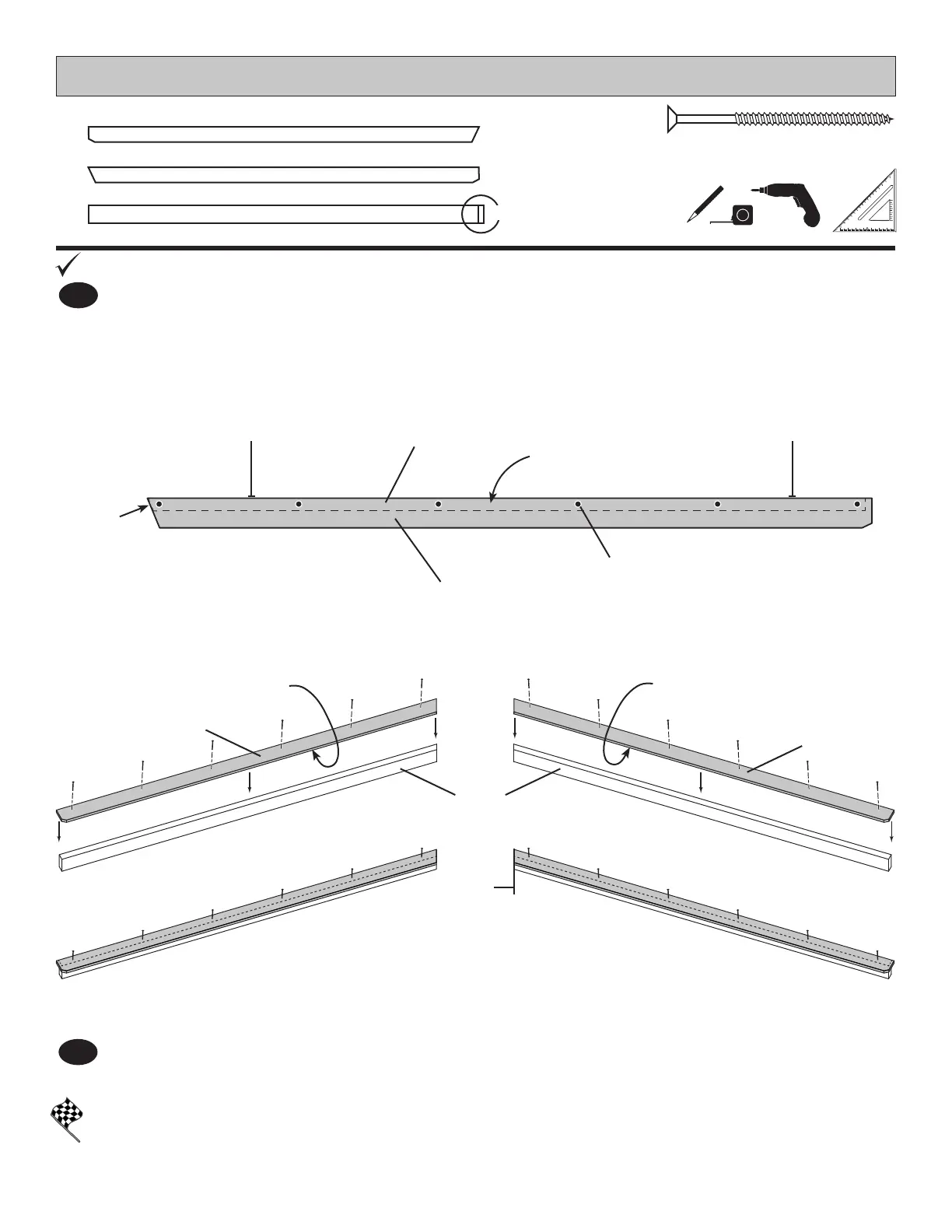

You have nished building your front gable overhang assemblies.


Screws
ULL
TQA
Place ULL on top of TQA. Ensure parts are ush along edge and at angled end.
Secure using 2" screws as shown ..
1
BEGIN


Flush
Flush
Flush
ULL
ULR
RIGHT OVERHANG
LEFT OVERHANG
TQA
ANGLED
END
Flush
56

PARTS REQUIRED:
FRONT GABLE OVERHANG
2 x 4 x 88-1/8" (5,1 x 10,2 x 223,8 cm)

TQA

2" (5,1 cm)

ANGLED
END
Primed
side DOWN
Primed
side DOWN
Primed
side DOWN
19/32" x 3-1/2" x 88-1/8" (1,5 x 10,2 x 223,8 cm)

ULL
19/32" x 3-1/2" x 88-1/8" (1,5 x 10,2 x 223,8 cm)

ULR
Repeat STEP 1 using ULR to build right overhang assembly.

