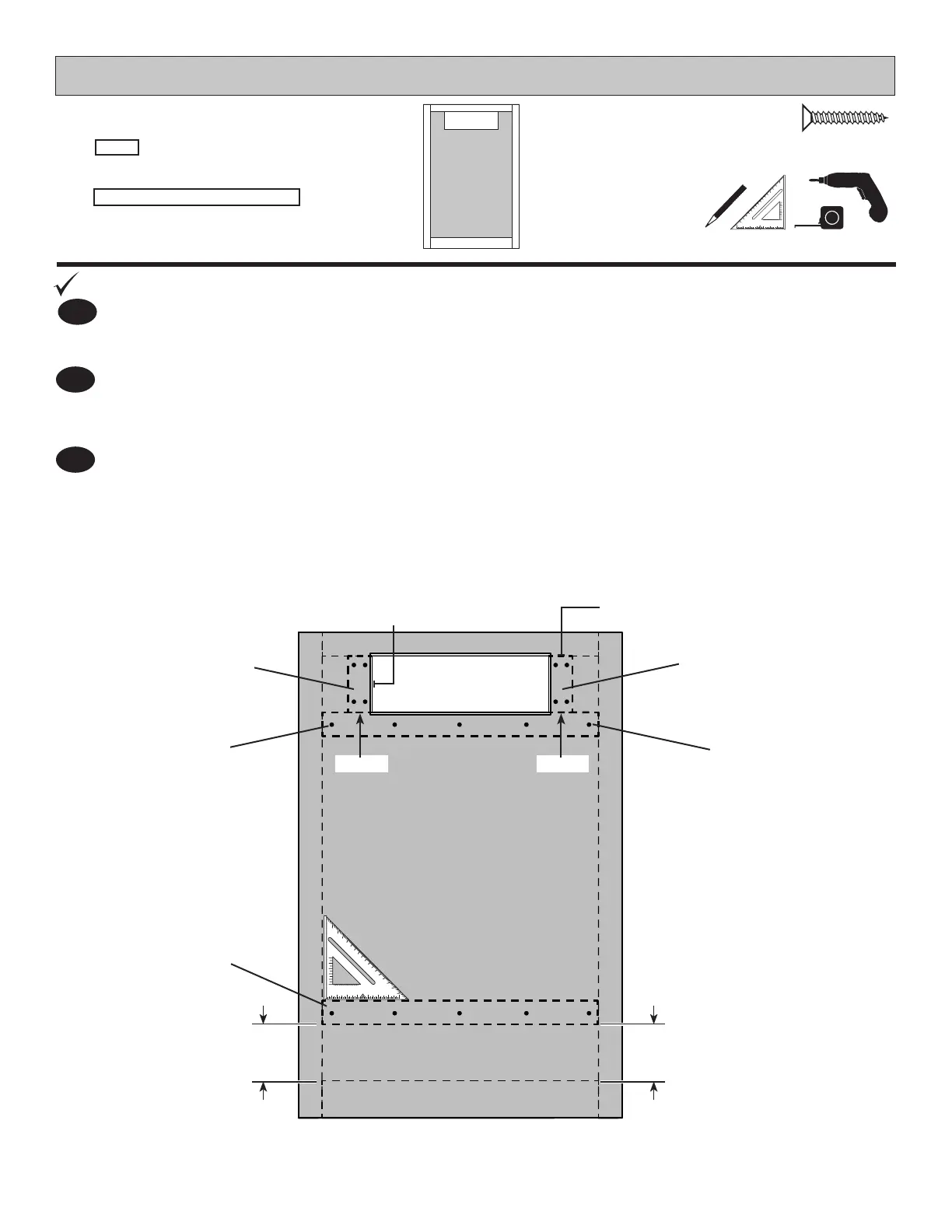

On outside of double door, locate FTA ush to edge of window opening and upper door trim, as shown.
Secure FTA from back side (inside) of door using 3/4" screws.
On outside of double door, locate NSA ush to edge of each FTA, as shown.
Secure NSA from back side (inside) of door using 3/4" screws.
On outside of double door, measue and mark location of 2nd NSA as shown.
Secure NSA from back side (inside) of door using 3/4" screws.
1
DOUBLE DOORS
PARTS REQUIRED:
Double
Door
3
FTA
NSA
NSA
FTA
3/4" (1,9 cm)
Flush
Flush FTA to the upper door trim
Flush
Screws
NSA
19/32" x 3-1/2" x 41" (1,5 x 8,9 x 104,1 cm)
19/32" x 3-1/2" x 8-3/8" (1,5 x 8,9 x 16,5 cm)
FTA
8-3/8"
(21,3cm)
8-3/8"
(21,3cm)
