SERVICE

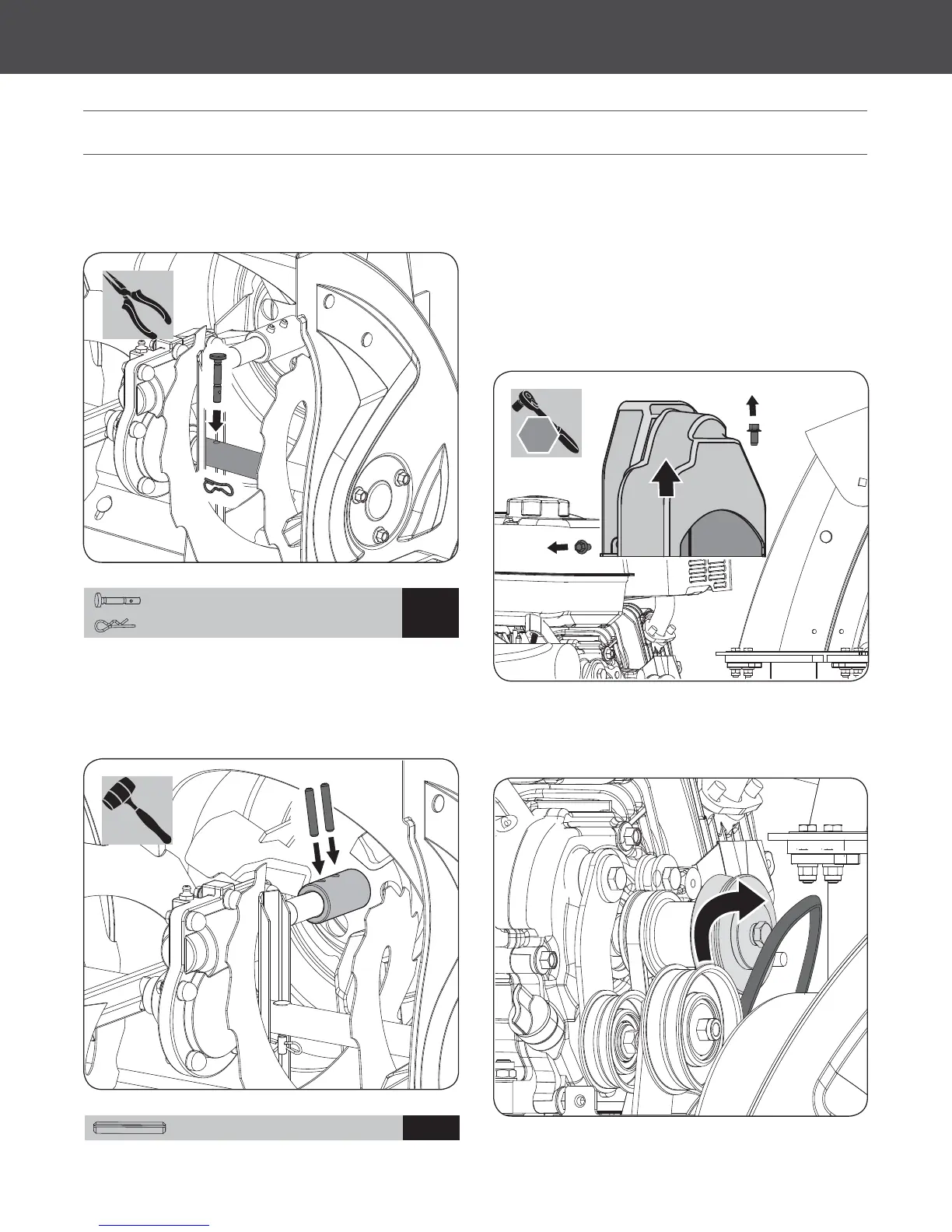

AUGER BELT REPLACEMENT
If the auger belt becomes worn, oil-soaked, or otherwise damaged,
proceed as follows to replace the belt.
1. To prevent spillage, remove all fuel from tank by running engine
until it stops. Remove the key to avoid unintended starting and
allow unit to cool completely.
2. Remove the two screws that hold the belt cover in place and
set the cover aside. (See Figure 20a)
3. Roll the auger belt(s) off the engine pulley. (See Figure 20b)
REPLACEMENT SHEAR PINS
SPARE ROLL PINS
A pair of replacement auger shear pins and clevis pins are included
with your snow blower. Store them in a safe place until needed.
A pair of replacement impeller roll pins are included with your
snow blower. Store them in a safe place until needed.
Figure 18
Figure 20a
Figure 20b
Figure 19
X 2
7
X 2
6 X 37 X 2
8
13 mm
20
Two-Stage Snow Blower
»
Operator’s Manual
Service
|
To Next Page
