Gearbox
PARTS LIST
No. Description
Qty
16
Screw M6×16 1
17
Left Handle Frame Assembly 1
18
Clutch Control Lever 1
19
Clutch Control Lever Cable 1
20
Soleplate (L) 1
21
Bolt M8×16 13
22
Washer ø8 52
23
Screw M10×20 8
24
Washer ø10 24
25
Washer ø10 28
26-1
Handle Mounting Frame 1
27
Nut M8 25
28
Bolt M8×25 7
29
Bolt M8×20 6
30
Washer ø8 16
No. Description
Qty
31
Soleplate (R) 1
32
Bolt M6×12 10
33-1
Small Belt Pulley Cover 1 1
34
Discontinued N/A
35
Key 4.7×33 1
36-2
Fixed Bracket 1
37
Tensioner Pulley Bracket 1
38
Washer ø8 1
39
Belt Plate 4
40
Sleeve Washer 1
41-1
Small Belt Pulley 1
42-1
Belt B33 1
43
Discontinued N/A
44
Discontinued N/A
45
Discontinued N/A
No. Description
Qty
1
Bend Plate 1
2
Washer ø6 32
3
Spring washer 6 13
4
Nut M6 13
5
Handle sleeve 2
6
Throttle Lever 1
7
Throttle Cable 1
8
Hoop 1
9
Screw M6×35 1
10
ON/OFF Switch 1
11
Right/Left Steering Lever 1
12
Screw M6×60 1
13
Right/Left Steering Lever Cable 1
14
Right Handle Frame Assembly 2
15
Screw M6×45 5
23
YD8105PM04 - 1804
|

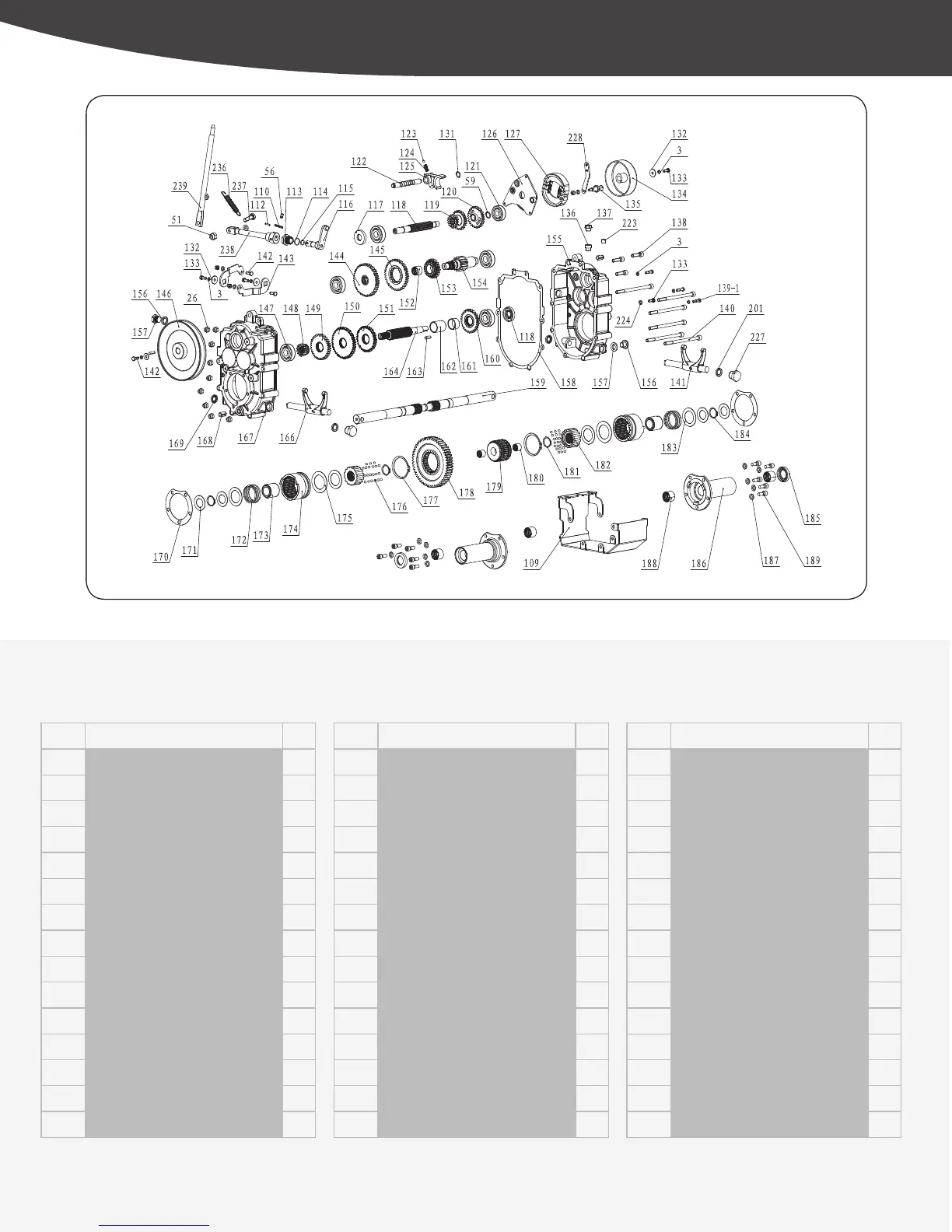

Parts Diagram
To Next Page
