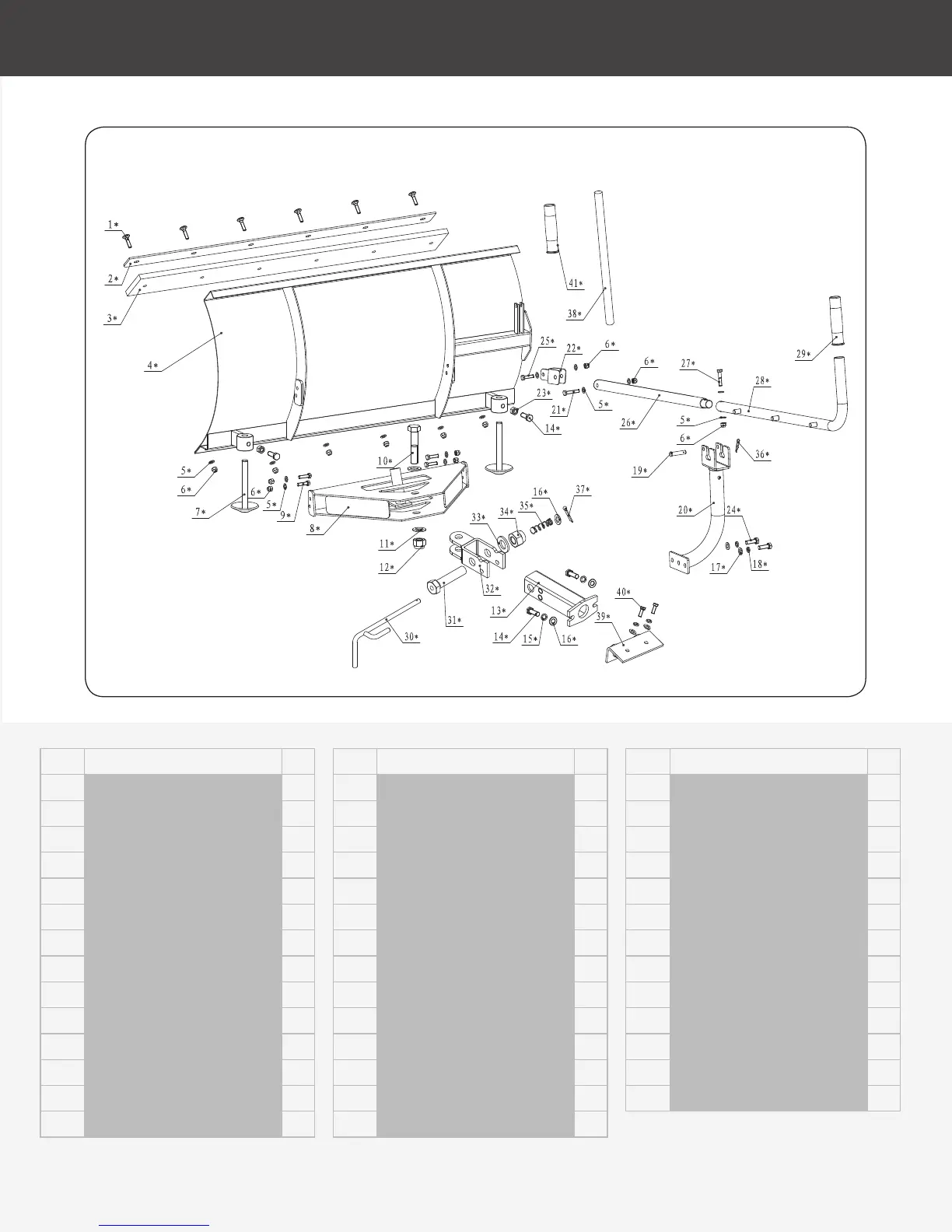

PARTS LIST
Plow Blade (Optional)
No. Description
Qty
15*
Washer12 2
16*
Washer12 3
17*
Washer10 4
18*
Washer10 4
19* Pin 10×60 1
20*
Curved Support Bracket Weldment
1
21* Bolt M8×50 1
22* Active Connecting Weldment 1
23* Nut M12 2
24* Bolt M10×25 2
25* Bolt M8×35 1
26* Adjusting Rod Weldment B 1
27* Bolt M8×40 1
28* Adjusting Rod Weldment A 1
No. Description
Qty
29* Handle Sleeve 28 2
30* Limiter Rod Wedment 1
31* Bolt M24×110 1
32* Limiter Weldment 1
33* Washer24 1
34* Lock Nut M24 1
35* Spring 1
36* Bridge Pin 2×11×35 1
37* Pin 4×40 1
38* Handle Grip 2 1
39* Bended Plate 1
40* Bolt M10×30 2
41* Handle Sleeve 25 1
No. Description
Qty
1*
Bolt M8×35 6
2*
Shave Plate 1
3*
Rubber Plate 1
4*
Blade Weldment 1
5*
Washer8 16
6*
Nut M8 13
7*
Landing Leg Weldment 2
8*
Blade Fixed Bracket Weldment 1
9*
Bolt M8×30 4
10*
Bolt M20×95 1
11*
Washer20 2
12*
Nut M20 1
13*
Blade Connecting Bracket Weldment
1
14*
Bolt M12×40 4
26
Power Trackbarrow
»
Operator’s Manual
YD8105PM04 - 1804
Parts Diagram & Parts List
|
To Next Page
