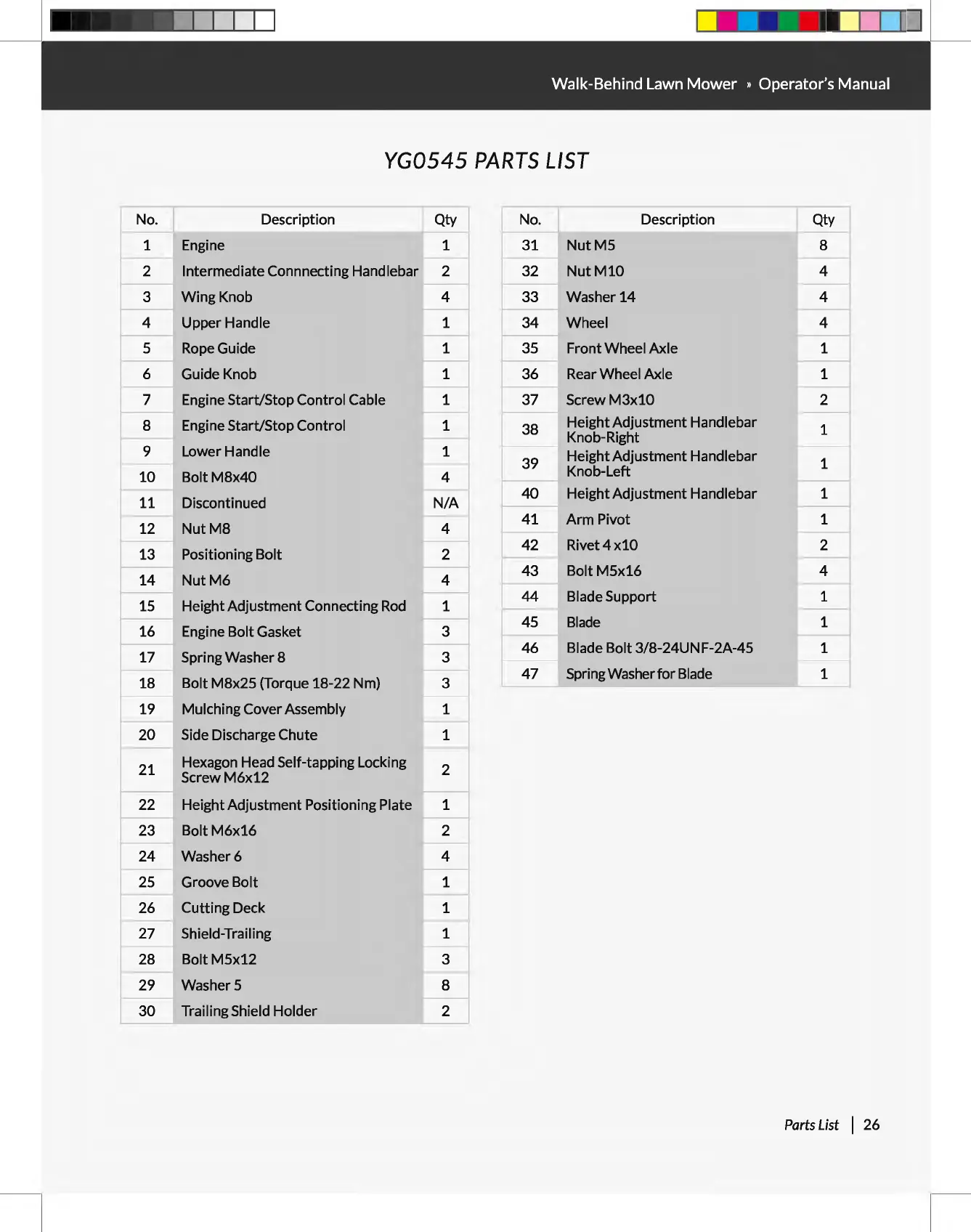

YG0545
PARTS
LIST
No. Description
Qty
No. Description
Qty
1
Engine
1 31
NutMS
8
2
Intermediate Connnecting Handlebar
2 32
Nut
M10
4
3
Wing Knob
4 33 Washer14 4
4
Upper Handle
1 34 Wheel 4
5
Rope
Guide 1
35
Front Wheel Axle 1
6 Guide Knob 1 36
Rear
Wheel Axle 1
7 Engine Start/Stop Control Cable 1 37 ScrewM3x10 2
8
Engine Start/Stop Control
1
38
Height Adjustment Handlebar
1
Knob-Right
9 Lower Handle 1
Height Adjustment Handlebar
39 1
10
BoltM8x40
4
Knob-Left
11 Discontinued N/A
40
Height Adjustment Handlebar 1
12
NutM8
4
41 Arm Pivot 1
13
Positioning Bolt
2
42
Rivet4x10
2
14
NutM6
4
43 BoltMSx16 4
~
15 Height Adjustment Connecting
Rod
1
44
Blade Support 1
16 Engine Bolt Gasket
3
45
Blade
1
17
Spring Washer 8
3
46
Blade Bolt 3/8-24UNF-2A-45
1
18
Bolt M8x25 (Torque 18-22 Nm)
3
47
Spring Washer for
Blade
1
19
Mulching Cover Assembly
1
20
Side
Discharge Chute
1
21
Hexagon Head Self-tapping Locking
2
ScrewM6x12
22 Height Adjustment Positioning Plate 1
23
BoltM6x16
2
24 Washer6 4
25 Groove Bolt 1
26
Cutting Deck
1
27 Shield-Trailing 1
28 BoltMSx12
3
29 WasherS 8
30
Trailing Shield Holder
2
Parts
List I 26
