YARDMAX YG0545 User Manual

This lawn mower was partially assembled at the factory. To assemble your machine follow the below instructions.
ASSEMBLY
LOWER HANDLE

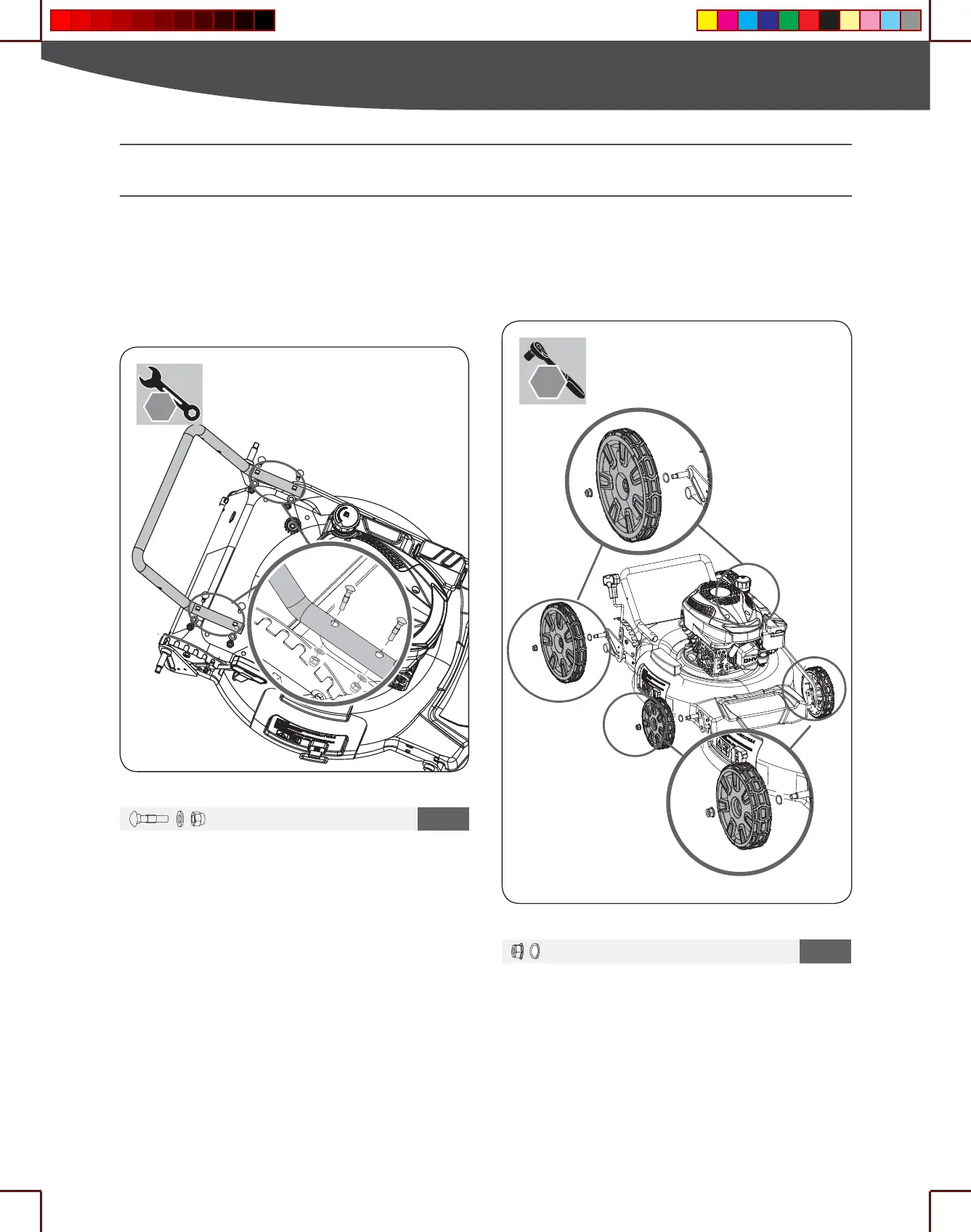

Align the holes in the lower handlebar with the holes in the mowing
housing. Secure and tighten by using M8x40 screws, at washers
and nuts. (See Figure 2)
WHEELS
Assemble the four wheels by securing with four M10 nuts and
washers. (See Figure 3)
Figure 2
Figure 3
M8 × 40 × 4
1
M10 × 4
2
2
13 mm
15 mm
11
|
Assembly
