YARDMAX YG0545 - Handlebar Assembly; Intermediate Handlebar Connection; Upper Handle Adjustment

INTERMEDIATE CONNECTING HANDLEBARS

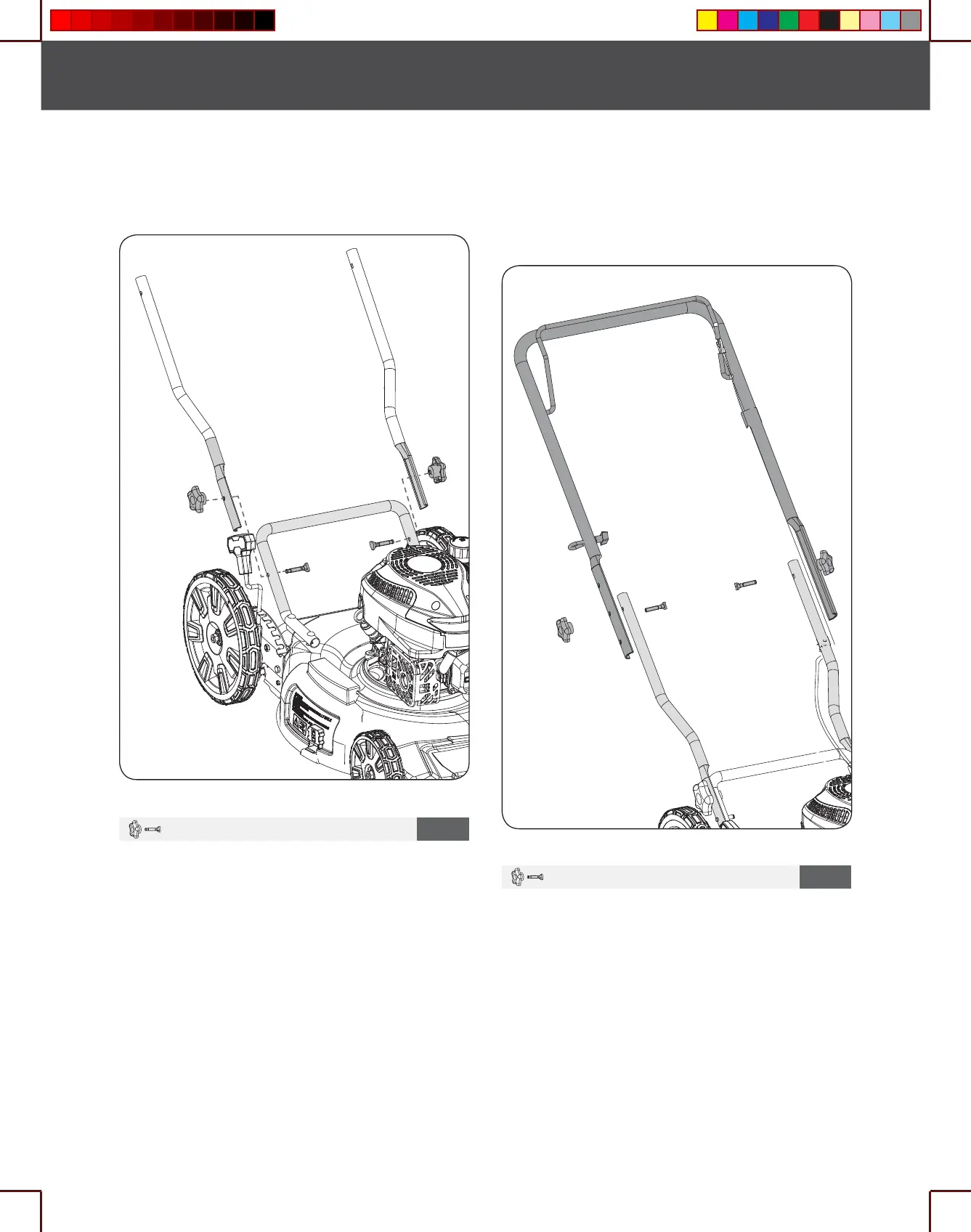

Align the holes in the connecting handlebars and lower handle. Insert
the bolts and secure with wing knobs. (See Figure 4)
UPPER HANDLE
Align the holes in the upper handle and the holes in connecting
handlebars to set a comfortable height position for the handle, then
secure and tighten by using bolts and wing knobs. (See Figure 5)
Figure 4
Figure 5
× 2
3
× 2
4
12
Walk-Behind Lawn Mower
»
Operator’s Manual
Assembly
|
