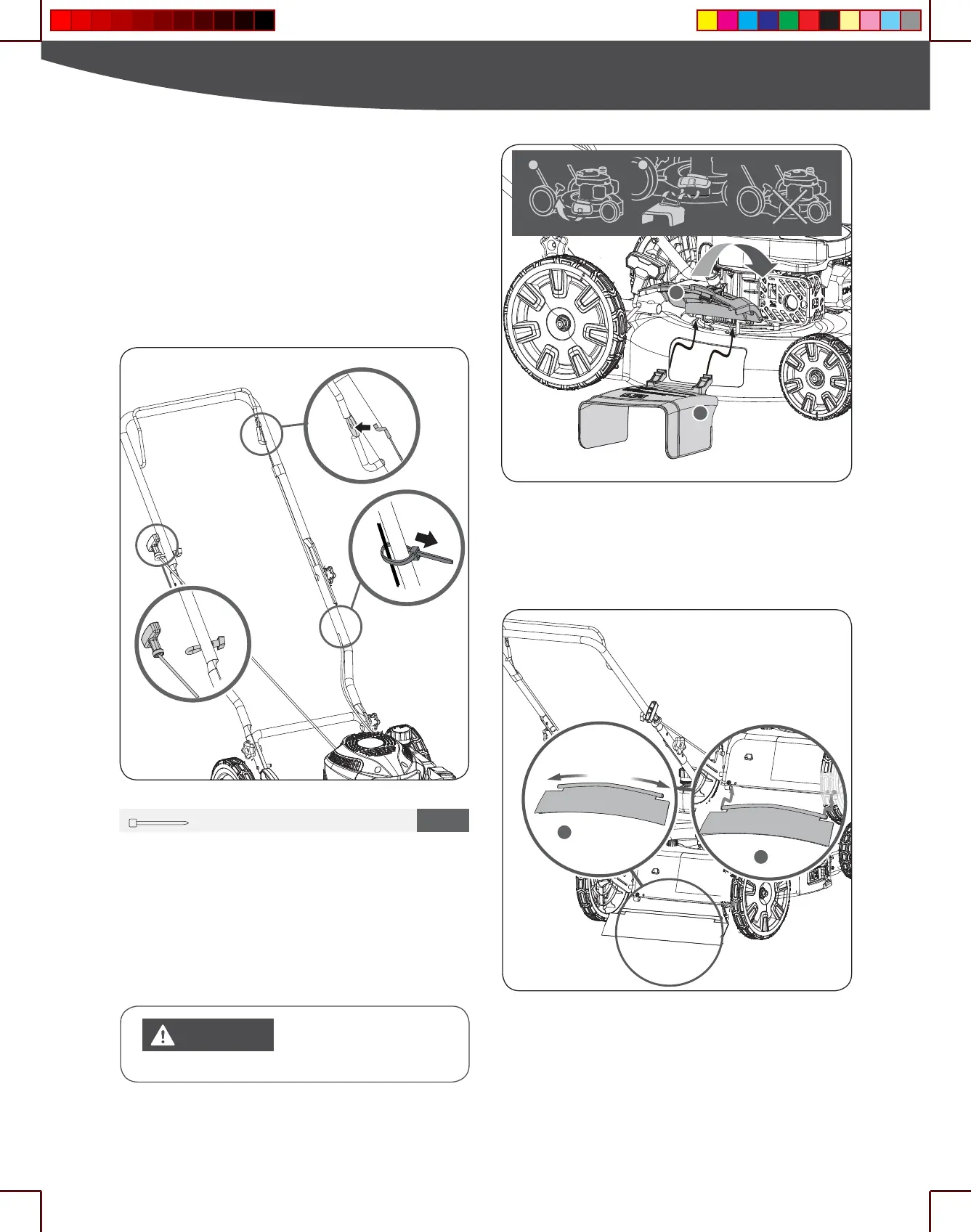

CABLE POSITIONING
1. Hold the engine start/stop control lever against the upper handle.
2. Slowly pull starter rope handle from engine and slip starter rope
into the rope guide.
3. Tighten rope guide knob.
4. Hook the Z-tting of engine stop control cable into the hole in the
engine start/stop control lever.
5. Use cable tie to secure engine stop cable.
SIDE DISCHARGE CHUTE
1. Lift the mulch cover on the side of the mower.
(See Figure 7,
illustration 1)
2. Slide the two hooks of the side discharge cover under hinge pin
on mulch cover assembly. Lower the mulch cover. ( See Figure 7,
illustration 2)
SHIELD-TRAILING
Attach the shield-trailing to the machine. (See Figure 8, illustration
1&2)
Figure 6
Figure 7
Figure 8
Do not remove side mulch
cover at any time, even when
you are not mulching.
WARNING
2
1
21
1
2
× 1
5
13
|
Assembly
