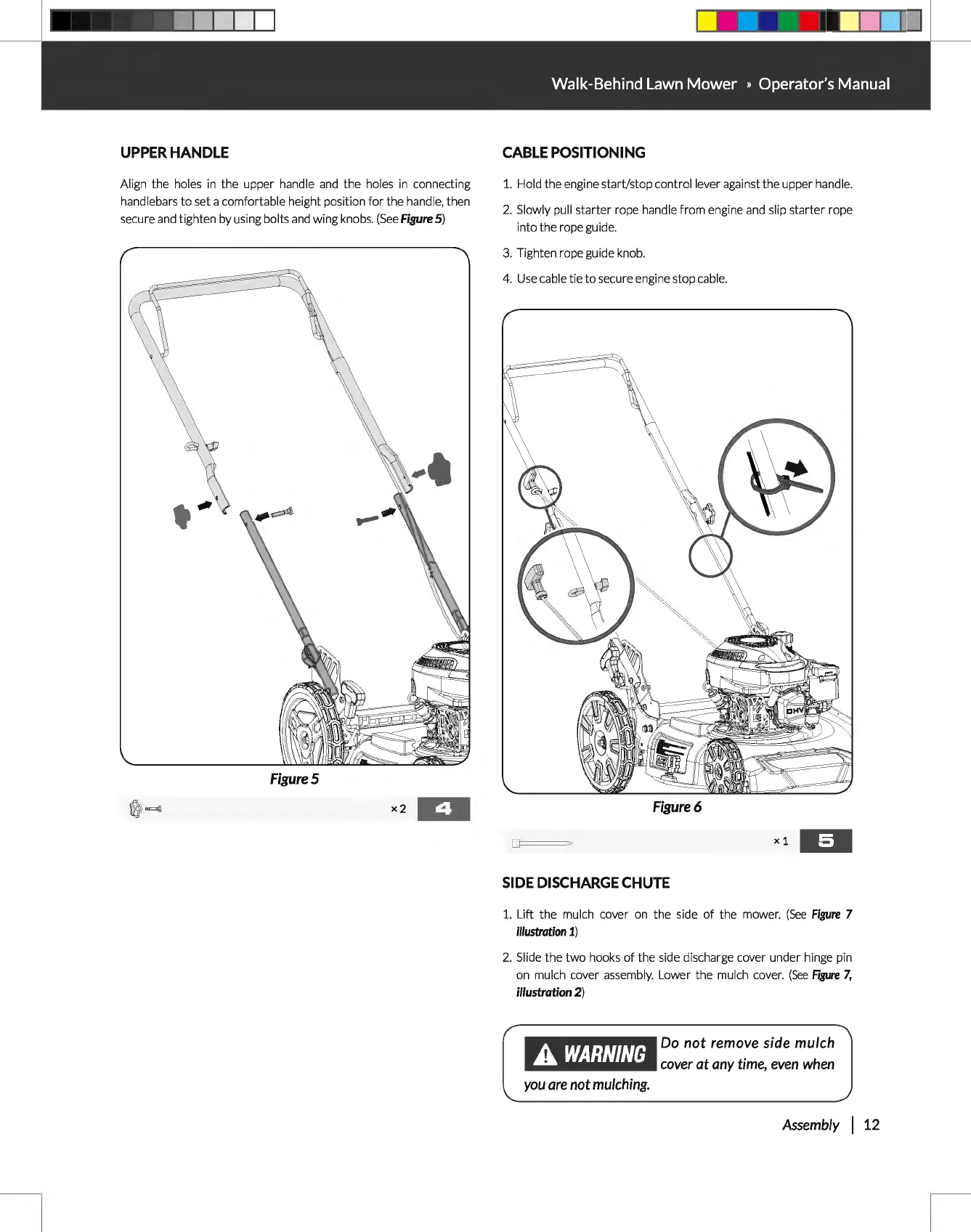

UPPER
HANDLE
Align the holes in the upper handle and the holes in connecting
handlebars
to
set a comfortable height position
for
the handle, then
secure and tighten by using
bolts
and
wing knobs.
(See
Figure
5)
FigureS
x2
CABLE
POSITIONING
1.
Hold the engine start/stop control lever against the upper handle.
2.
Slowly pull starter rope handle
from
engine and slip starter rope
into the rope guide.
3.
Tighten rope guide knob.
4.
Use cable tie
to
secure engine stop cable.
Figure6
x1
---jl
SIDE
DISCHARGE
CHUTE
1.
Lift the mulch cover on the side
of
the mower.
(See
Fisure
7
illustration
1)
2.
Slide the
two
hooks
of
the side discharge cover under hinge pin
on
mulch cover assembly. Lower the mulch cover.
(See
r181Jre
7,
illustration
2)
A
WARNING
you
are
not
mulching.
Do
not
remove
side
mulch
cover
at
any
time,
even
when
Assembly
I 12
To Next Page
