YARDMAX YG1650 User Manual

Figure?

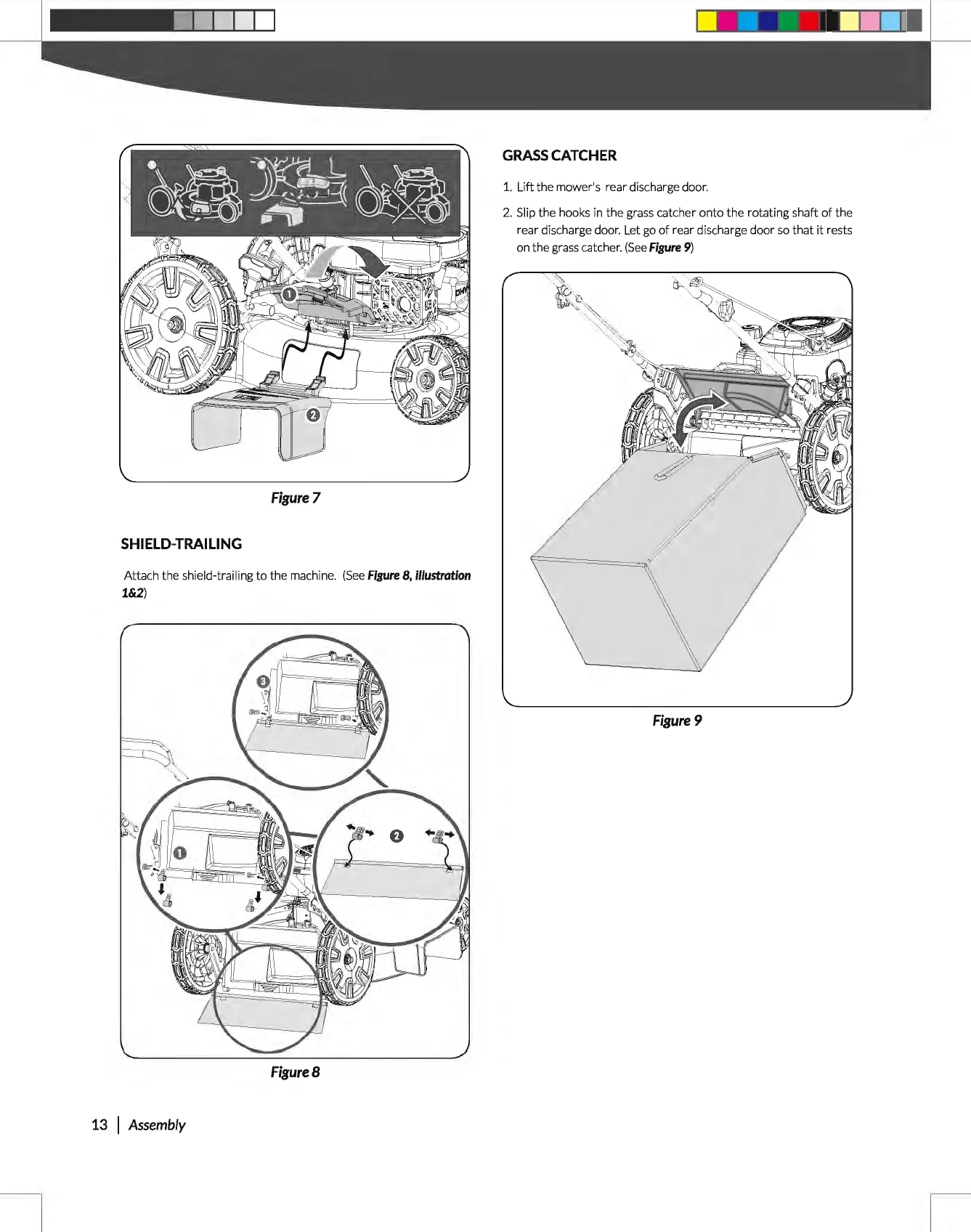

SHIELD-TRAILING
Attach the shield-trailing to the machine. (See Figure 8, illustration
1&2)
FigureS
13 I Assembly
GRASS CATCHER
1. Lift the mower's rear discharge door.
2. Slip the hooks in the grass catcher onto the rotating shaft of the
rear discharge door. Let go
of rear discharge door so that it rests
on the grass catcher.
(See Figure 9)
Figure 9
