ASSEMBLY INSTRUCTIONS
Parts List
Mulch plug
Grass catcher bag
Side discharge chute

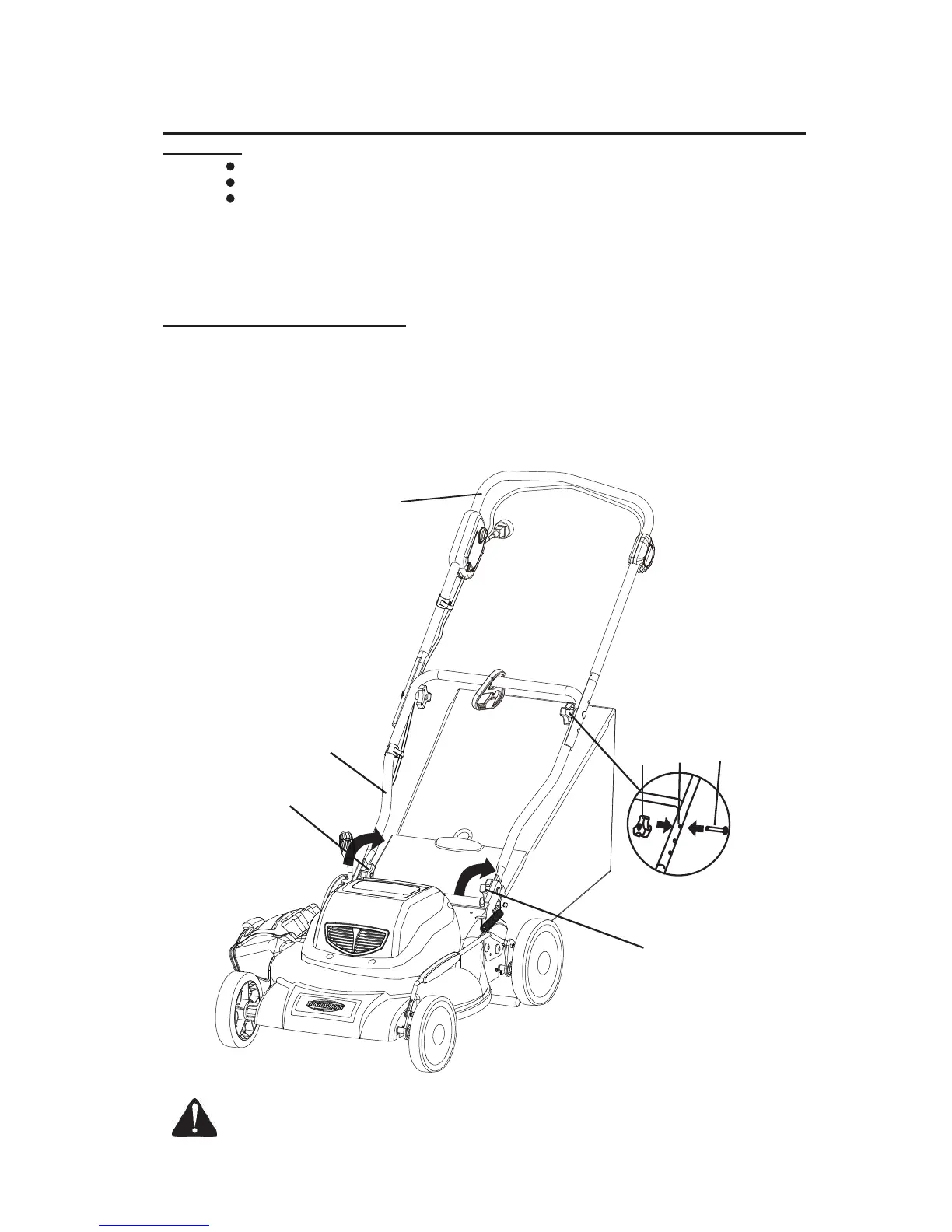

Assembling the handle (Fig. 1)
WARNING: Never operate the mower without the proper components and safety
devices in place and working. Never operate the mower with
damaged safety devices.
Failure to do so can result in personal injury.
Fig. 1
6
3 45
1
2
6
6
1. Remove any packing material which may be between the upper and lower handles for shipping
purposes.
2. Pull up and back on the upper handle to raise the handle into the operating position. Make certain the
lower handle is seated securely into the handle mounting bracket.
3. Align the holes (3) between the upper handle (1) and lower (3) handles. Insert the bolts (4) and tighten
them with the wing nuts (5) provided.
4. Secure the lower handle to the bracket with the wing nut (6) on each side.
NOTE:
Carefully remove the parts from the box.
• Inspect the parts carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1 866 523-5218 for assistance.
