model numbers 060-2343-8 and 060-2344-6 | contact us: 1.866.523.5218
7
ADJUSTING THE HANDLE
$"65*0/8IFOBEKVTUJOHUIFIBOEMF
be sure it remains above the safety label
and below the mark or arrow on the
TIBGU
1.
Loosen the wing nut on the handle.
2. Rotate the handle on the shaft to an
upright position; retighten the wing nut.

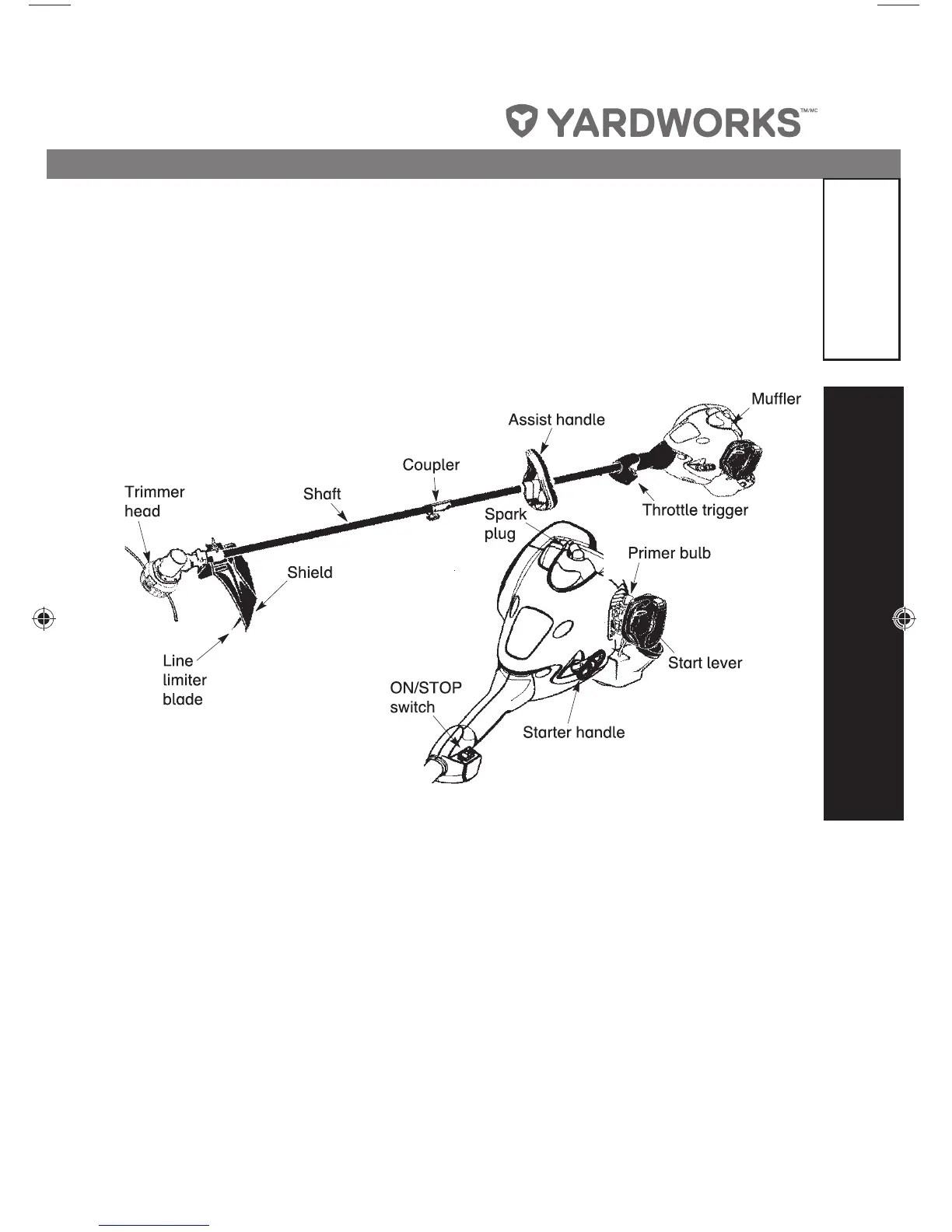

KNOW YOUR UNIT
READ THIS INSTRUCTION MANUAL AND
SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations
with your unit to familiarize yourself with
the location of the various controls and
adjustments. Save this manual for future
reference.
ON/STOP SWITCH
The ON/STOP switch is located on the
trigger handle and is used to stop the
engine.
PRIMER BULB
The PRIMER BULB removes air from the
fuel. This allows you to start the engine with
fewer pulls on the starter rope.
START LEVER
The START LEVER helps to supply fuel to
the engine to aid in starting.
COUPLER
The COUPLER enables optional
attachments to be installed on the unit.
AssemblyKnow Your Trimmer
