ASSEMBLY INSTRUCTIONS
Parts List:
Mulch plug
Grass catcher bag
Side discharge chute
Not
e: Carefully remove the parts from the box. • Inspect the parts carefully to make sure no breakage or
da
mag
e occurred during shipping. • Do not discard the packing material until all parts are examined. • If any
par
ts are damaged or missing, please call 1 866 523-5218 for assistance.

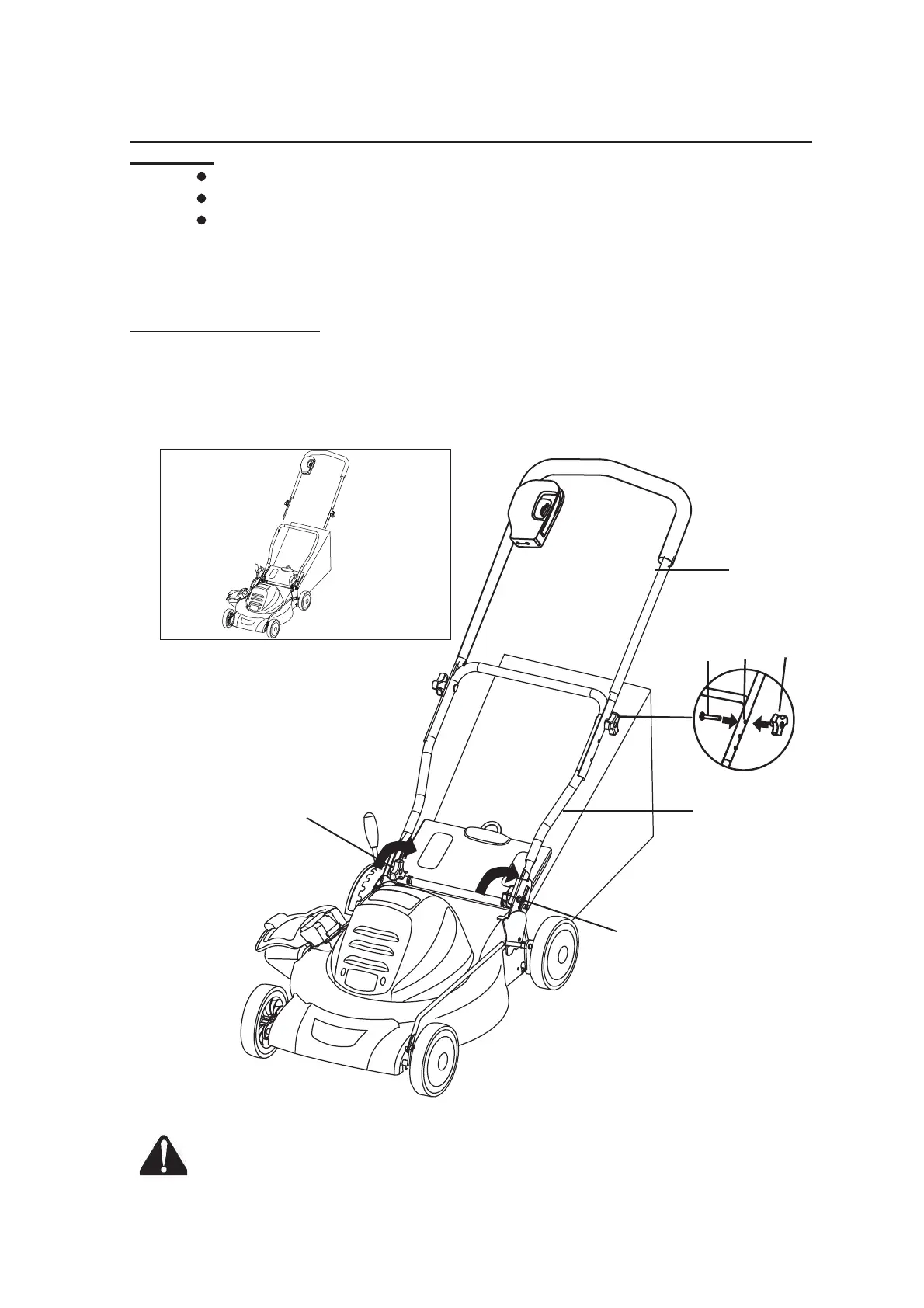

Assembling the handle
1. Remove any packing material which may be between the upper and lower handles for shipping purposes.
2. Pull up and back on the upper handle to raise the handle into the operating position. Make certain the
lower handle is seated securely into the handle mounting bracket.
3. Align the holes(3) between the upper handle (1) and lower(3) handles. Insert the bolts(4) and tighten
them with the wing nuts(5) provided.
4. Secure the lower handle to the bracket with the bolt(6) in each side(Fig. 2).
WARNING: Never operate the mower without the proper components and safety
devic
es in place and working. Never operate the mower with
dama
ged safety devices. Failure to do so can result in personal injury.
Fig.
2
3
4
5
1
2
6
6
Fig.1
Fig. 1).
(
