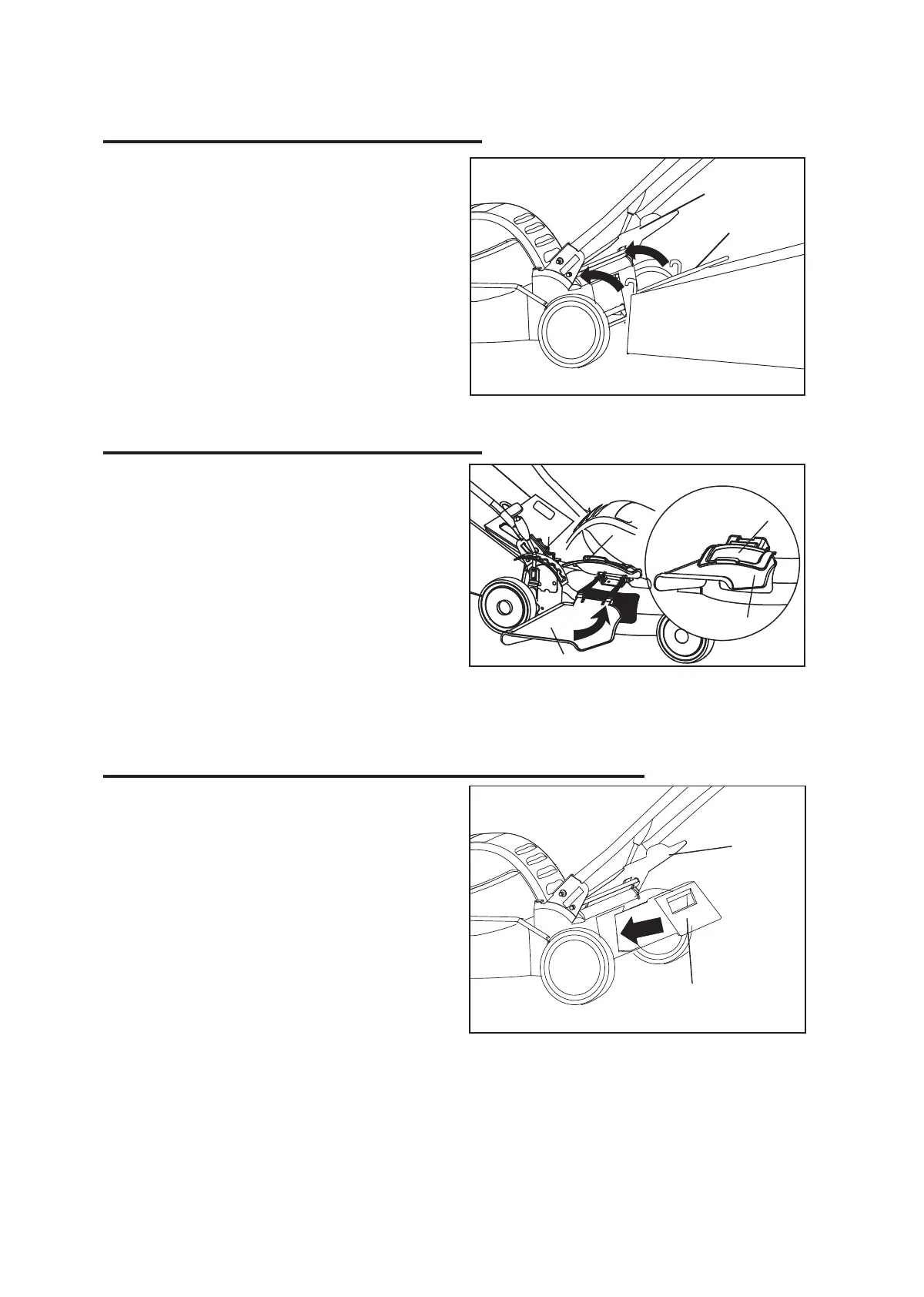

INSTALLING THE GRASS CATCHER BAG
INSTALLING THE SIDE DISCHARGE CHUTE
1. Lift the chute cover (1).
2. While holding the chute cover (1) up, place the
hanger hooks of the grass catcher bag (2)
into the opening on the chute cover (1) in order
to allow the hanger hooks to attach to the rod
(4) that secures the chute cover.
1. Pull open the side discharge cover (1) .
2. Align the discharge chute arrows with the
positioning arrows on the mower deck,
and then slide the discharge chute (2) in,
as shown.
3. Position the chute such that the chute
hooks are trapped under the deck hooks,
and then release the chute and the cover.
INSTALLING AND REMOVING THE MULCHING PLUG
1. To remove the mulching plug, lift the chute cover
(1) and pull the mulching plug out using the handle.
2. The mulching plug (2) is inserted on an angle, so
it requires some force to remove it.
