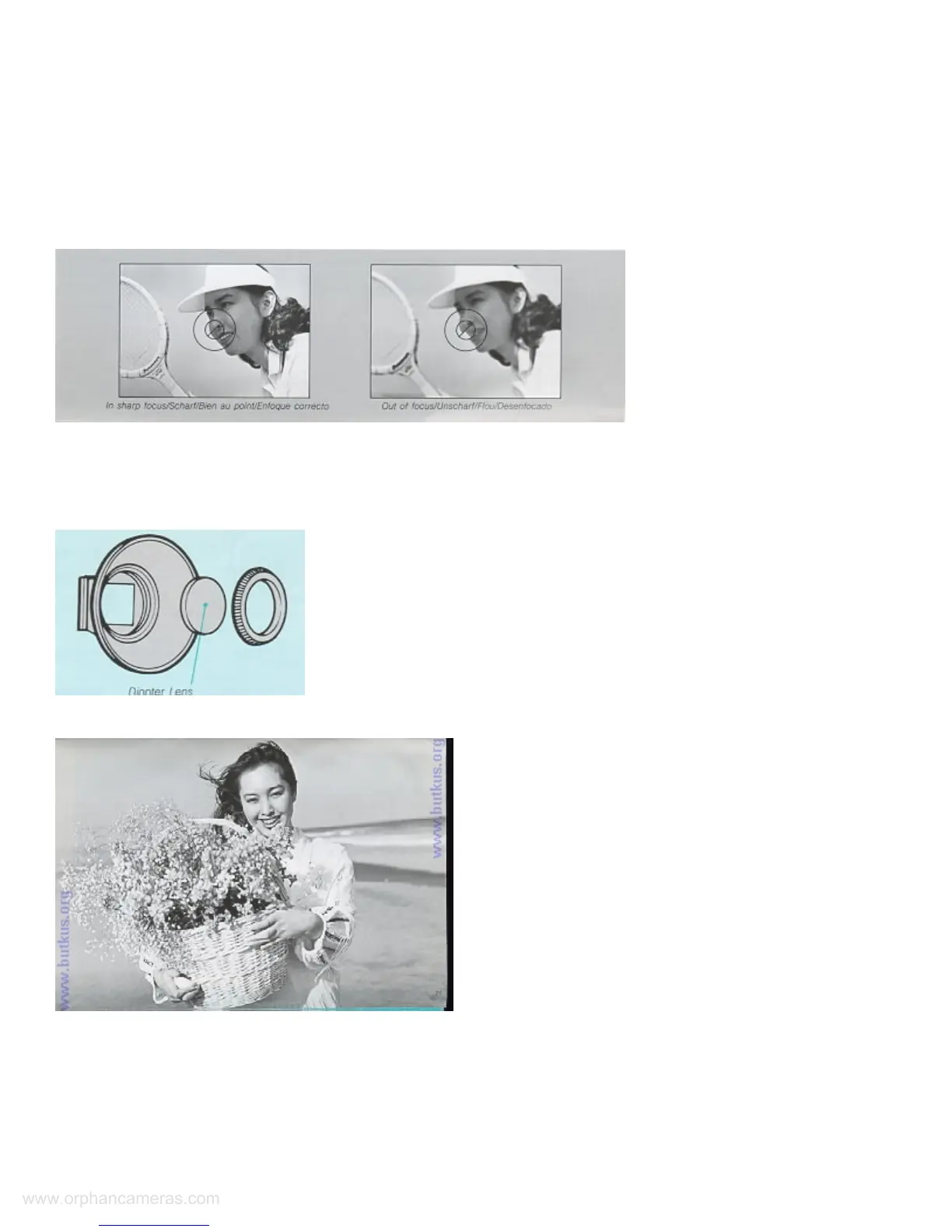

<Focusing with the Microprism Collar and Matte Screen >
Turn the Focusing Ring until your subject on the microprism collar or the matte screen appears sharp. It is n
in sharp focus if the image appears wavy on the microprism, or blurred on the matte screen.
ot
· If you are using a lens with a large focal length or a relatively "slow" lens or taking close-ups with high
magnifications, focusing may be difficult because the microprism center will become dark. In such cases, focus
on the matte screen.4www.butkus.org
< Diopter Lenses >
If you are far- or nearsighted, special diopter lenses (Contax, optional) are available in eight diopters: - 5D, -
4D, -3D, -2D, OD, +1D, +2D and + 3D. Choose one that suits your eyesight and fix it into the eye cup.
SHUTTER SPEED AND APERTURE
<Setting the Shutter Speed>
The shutter controls the time during which light reaches the film. If the Shutter Speed Dial is turned to a one
step higher number prom 125 to 250, for example), the amount of exposure will be reduced by half; if it is
www.orphancameras.com

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yashica FX-3 SUPER 2000 and is the answer not in the manual?

Yashica FX-3 SUPER 2000 Specifications

Camera Specifications IconCamera Specifications
camera type35 mm single-lens reflex camera with focal plane shutter
negative size24 x 36 mm
lens mountContax/Yashica mount
shutter speedsB (bulb), 1 to 1/1000 sec. (12 steps)
flash synchronizationX contact hotshoe (1/125 sec. or slower)
self-timer delay10 seconds
exposure metering typeThrough-the-lens, full-aperture center weighted light metering with SPD cell
metering rangeEV 2--18 (ASA 100 and 50 mm F1.4 lens)
film speed rangeASA 12--1600
exposure meter power sourceTwo 1.5 V alkaline (LR44) or 1.55 V silver oxide (SR44) batteries
viewfinder typeEye-level, pentarism finder
viewfinder coverage92% field of view
viewfinder magnification0.91X (with 50 mm lens at infinity)
focusing screenSplit-image/microprism
viewfinder informationDisplay of correct exposure, over- and underexposure with 3 LEDs
film advanceLever with 130° stroke and 20° stand-off
film rewindFilm rewind crank
exposure counterAdditive, auto reset
Weight and Dimensions IconWeight and Dimensions
dimensions135 (W) x 84.5 (H) x 50 (D) mm
weight445 g (without batteries)
