5

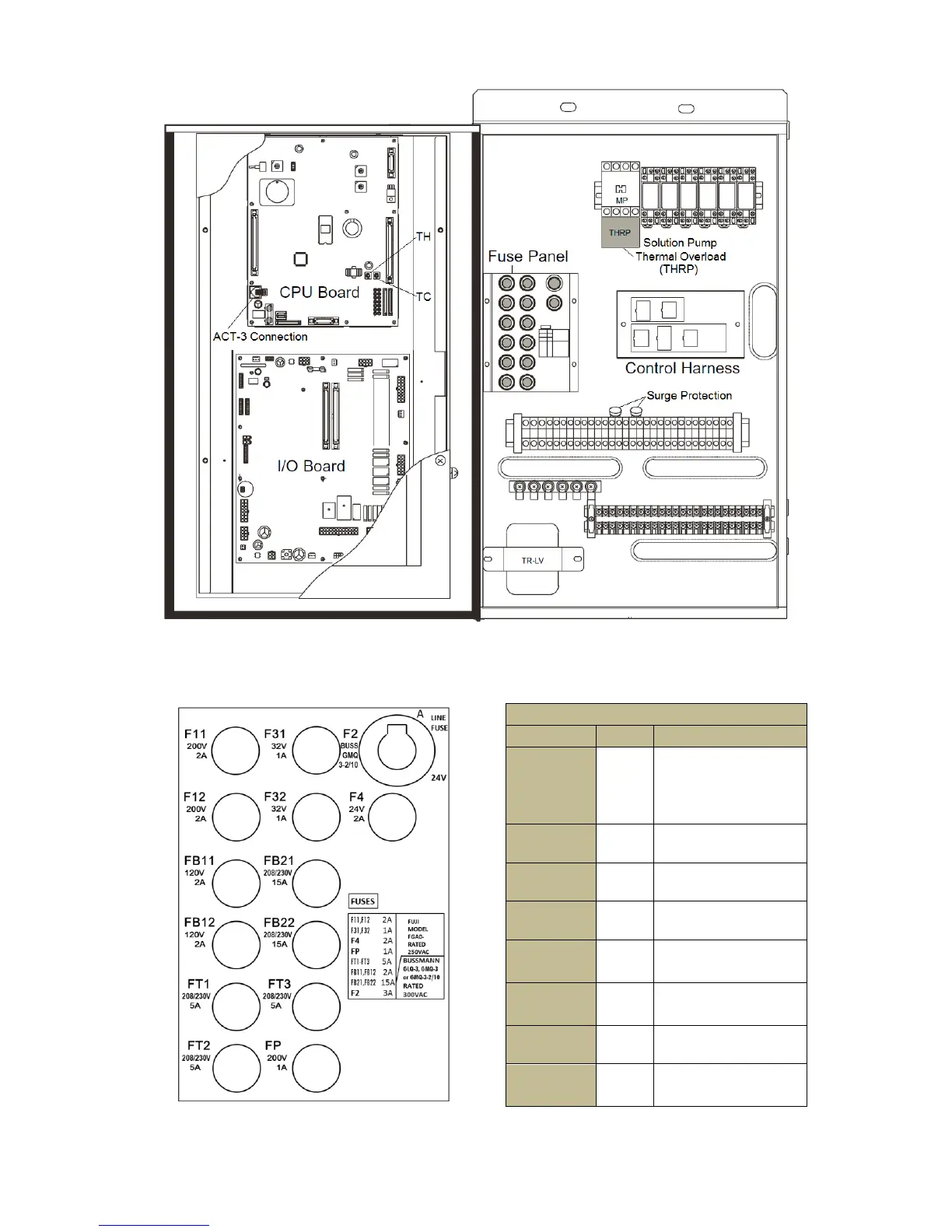

Figure 4 – CONTROL BOX LAYOUT
Fuse Rating Chart
Symbol
Amps
Replacement
F2
3
Bussmann Model
GLQ-3, GMQ-3 or
GMQ-3-2/10, Rated
300vac.
F4
2
Fuji Model FGAO-2,
Rated 250vac.
F11, F12
2
Fuji Model FGAO-2,
Rated 250vac.
F31, F32
1
Fuji Model FGAO-2,
Rated 250vac.
FB11,
FB12
2
Fuji Model FGAO-2,
Rated 250vac.
FB21,
FB22
15
Nagasawa Model
GAB
FP
1
Fuji Model FGAO-2,
Rated 250vac.
FT1, FT2,
FT3
5
Fuji Model FGAO-2,
Rated 250vac.
Figure 5 – FUSE PANEL
