Yealink SIP-T31G Getting Started

Recovery Mode on Yealink IP phones
12

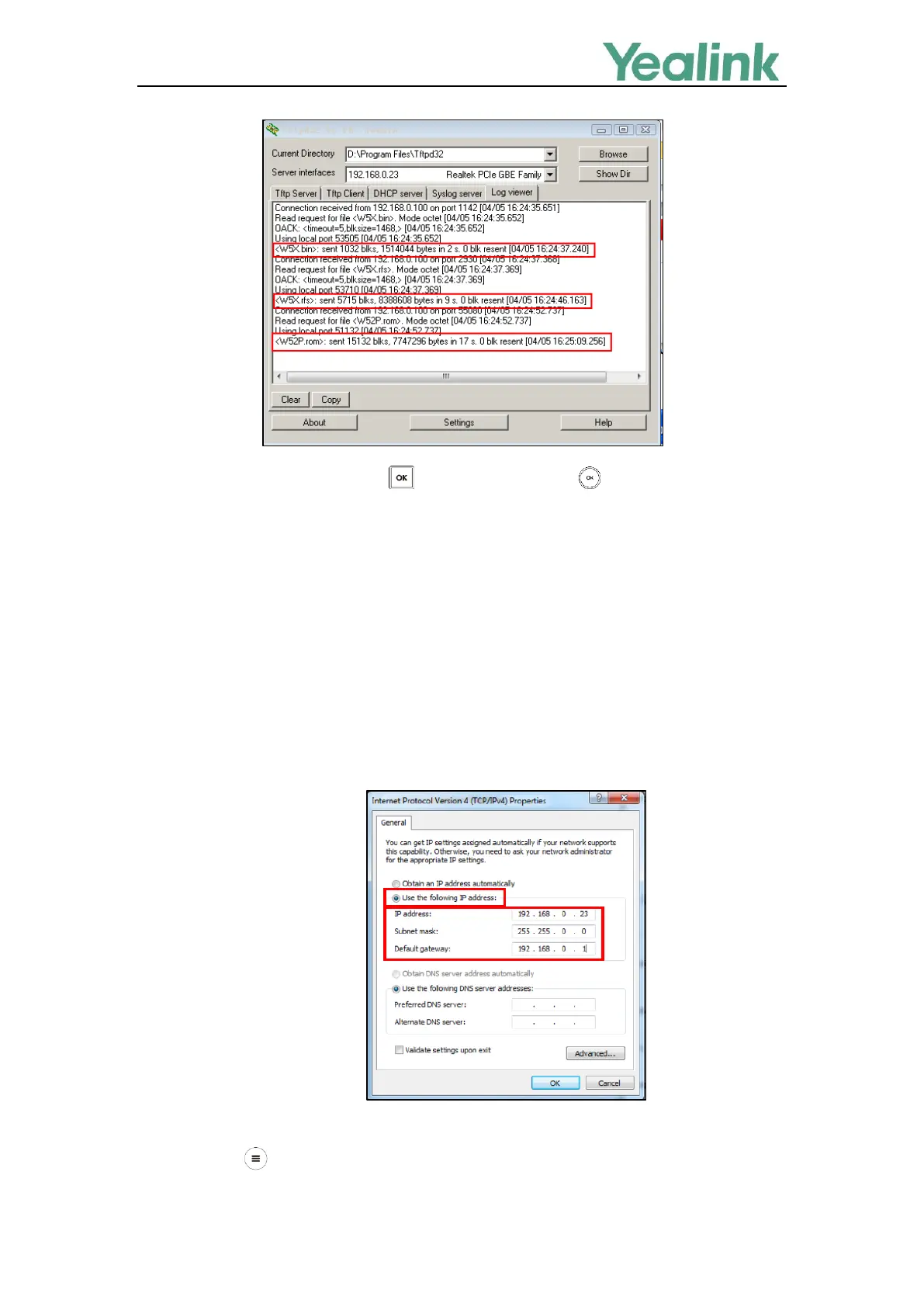

4. After a handset is registered, press (for W52P/W56P base) or (for W60B base) on the
handset to verify the current firmware version.
For W80DM/W80B
For the W80DM/W80B, there is no screen to show information for you. The W80DM/W80B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:
1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press and reconnect the power adapter to trigger the recovery mode.
The W80DM/W80B will download and upgrade the firmware from the TFTP server.

Yealink SIP-T31G Specifications

General

Mounting kit	Yes
Number of handles included	1 pc(s)
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	G.722, G.729, AGC, G.729A, AJB, PLC, G.711Mu, VAD, G.711a, G.723.1, G.726, iLBC, CNG, OPUS
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	3 W
Lines quantity	2 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	2
Sustainability certificates	RoHS, REACH
Networking standards	IEEE 802.3af, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	188 mm
Height	162 mm
Package depth	210 mm
Package width	213 mm
Package height	103 mm
